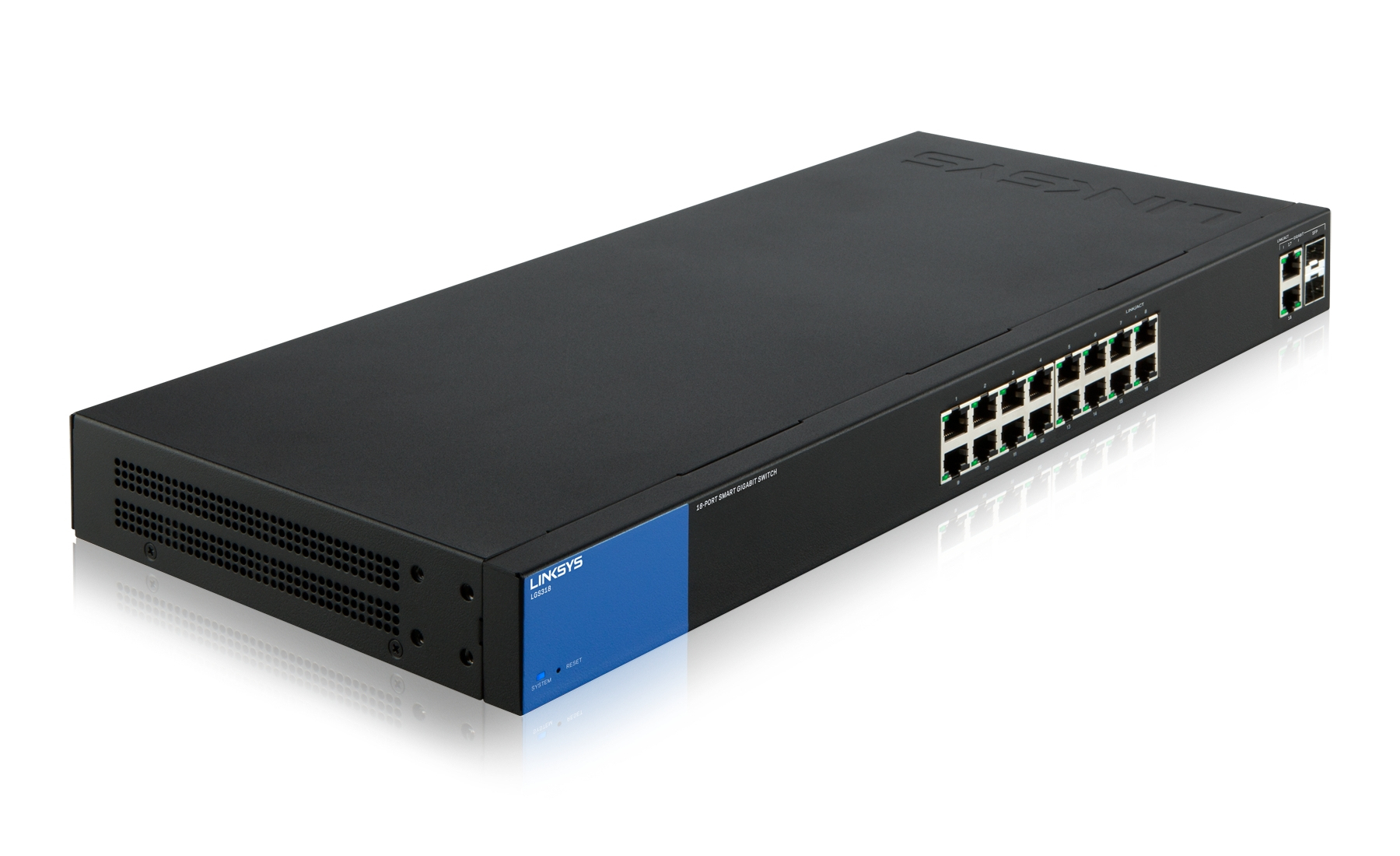

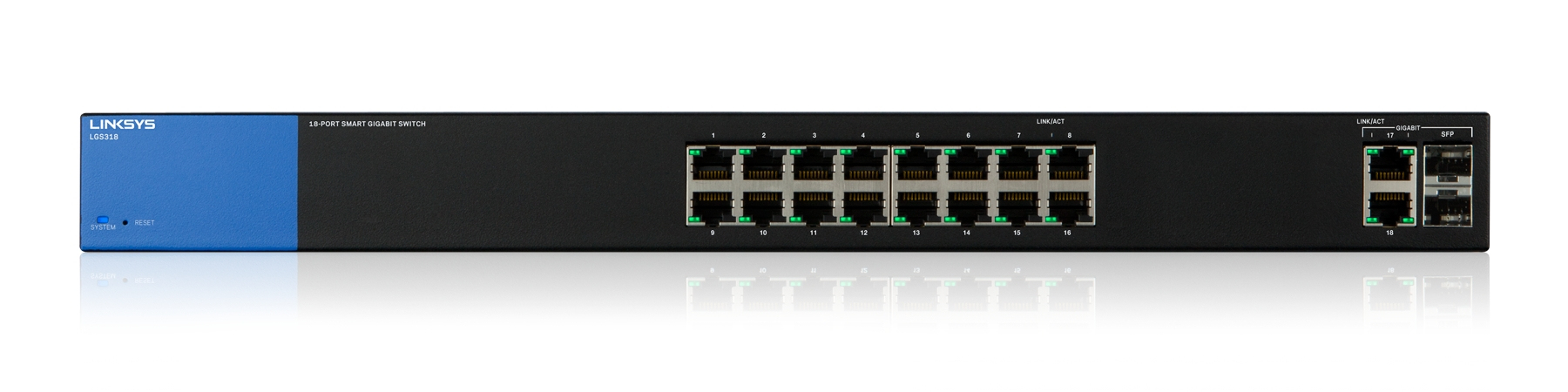

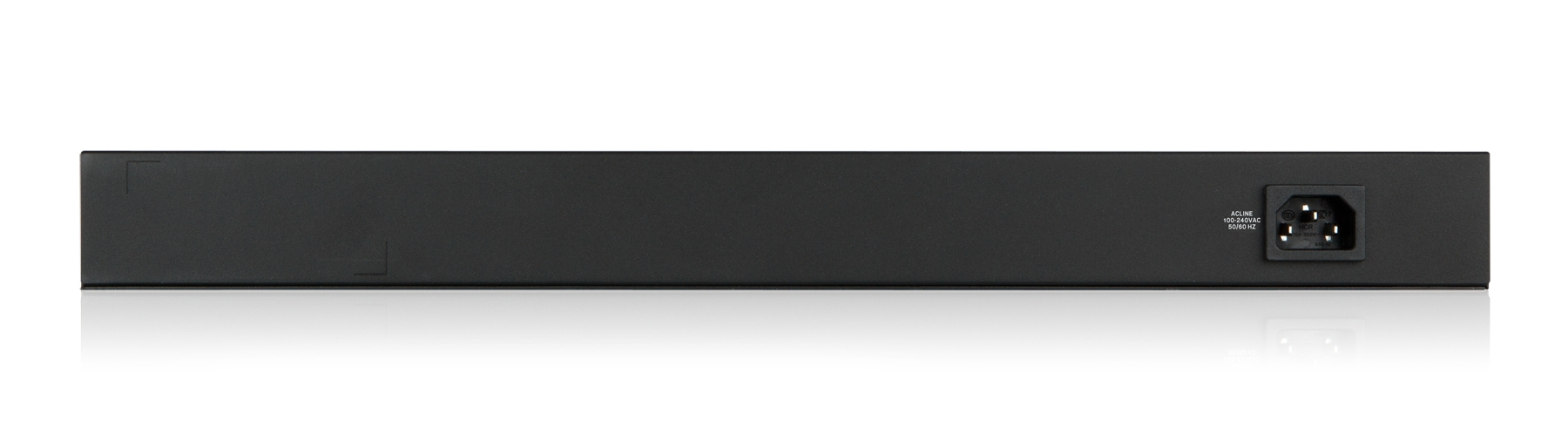

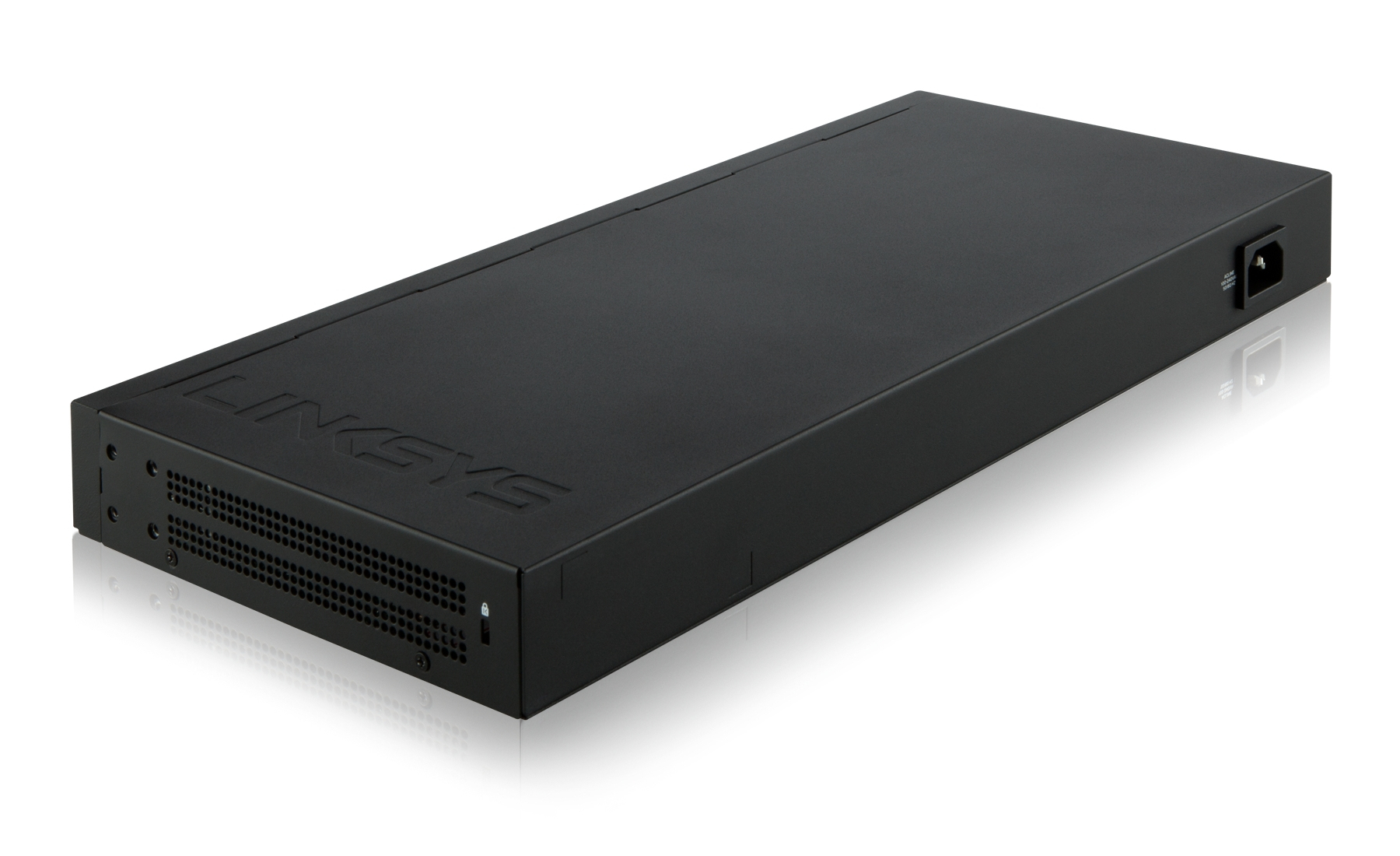

Linksys 18-Port Smart Gigabit Switch (LGS318)

Linksys 18-Port Smart Gigabit Switch (LGS318)

Model LGS318Part no. LGS318-AUEAN 745883635207

57 specifications

Memory128 MB
Weight2.38 kg
ColourBlack, Blue
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity16
10G supportNo

See all specifications

Overview

Memory: 128 MB
Weight: 2.38 kg
Colour: Black, Blue
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 16
10G support: No

Brand: Linksys
Category: Network Switch
Model: LGS318
Part numbers: LGS318-AU, LGS318-EU, LGS318-UK, LGS318, LGS318-EU/KIT2, LGS318-EU/KIT1
EAN / UPC: 745883635207, 745883635481, 3102015020244, 4260184663767 +16 more
Also known as: Linksys 18-Port Smart Gigabit Switch (LGS318)

Specifications

57 specifications in 13 groups

Management features

Specification	Value
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	18
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-T, 10BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	128

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Forwarding rate	26.79 Mpps
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000

Security

Specification	Value
DHCP features	DHCP snooping, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Port-based authentication
Authentication type	IEEE 802.1x
MAC address filtering	Yes
Queue scheduling algorithms	Priority queuing (PQ), Weighted Round Robin (WRR)
Security algorithms	802.1x RADIUS, HTTPS, SNMP

Multicast features

Specification	Value
Multicast support	Yes
Number of multicast groups filtered	256

Protocols

Specification	Value
Management protocols	SNMP, IGMP v1/v2/v3, Telnet, DHCP, HTTP/HTTPS

Design

Specification	Value
Product colour	Black, Blue
LED indicators	Activity, Link, System

Performance

Specification	Value
Memory type	DRAM
Internal memory	128 MB
Firmware upgradeable	Yes

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.7 A
Power consumption (typical)	13.66 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	200 mm
Height	44 mm
Weight	2.38 kg
