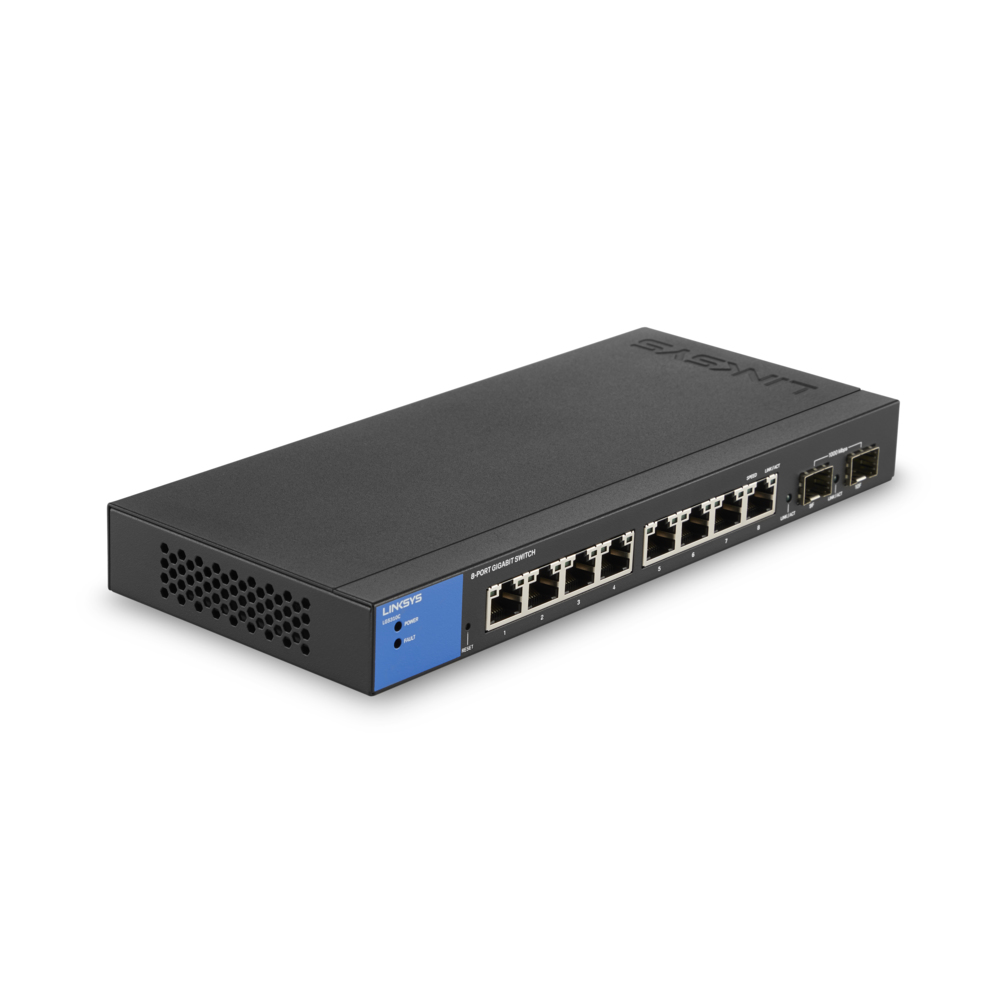

8-Port Managed Gigabit Switch (LGS310C)
Model LGS310CPart no. LGS310C-EUEAN 745883814565
69 specifications
- Memory256 MB
- Weight598.7 g
- ColourBlack, Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 256 MB
- Weight
- 598.7 g
- Colour
- Black, Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Linksys
- Category
- Network Switch
- Model
- LGS310C
- Part numbers
- LGS310C-EU, LGS310C
- EAN / UPC
- 745883814565, 4260184670635, 745883810147
- Also known as
- Linksys 8-Port Managed Gigabit Switch (LGS310C)
Specifications
69 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 256 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN |
| Authentication type | RADIUS |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SNMP |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP, HTTPS |
| IPv4 FIB entries | 63 |
| IPv6 FIB entries | 21 |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black, Blue |
| Housing material | Metal |
| LED indicators | Fault, Power |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 256 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (max) | 6.54 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105.9 mm |
| Depth | 236.7 mm |
| Height | 26.9 mm |
| Weight | 598.7 g |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 157.5 mm |
| Package depth | 283.2 mm |
| Package height | 91.4 mm |
| Package weight | 1.01 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 176.3 mm |
| Master (outer) case length | 490.5 mm |
| Master (outer) case height | 297.2 mm |
| Master (outer) case gross weight | 5.61 kg |
| Products per master (outer) case | 5 pc(s) |
