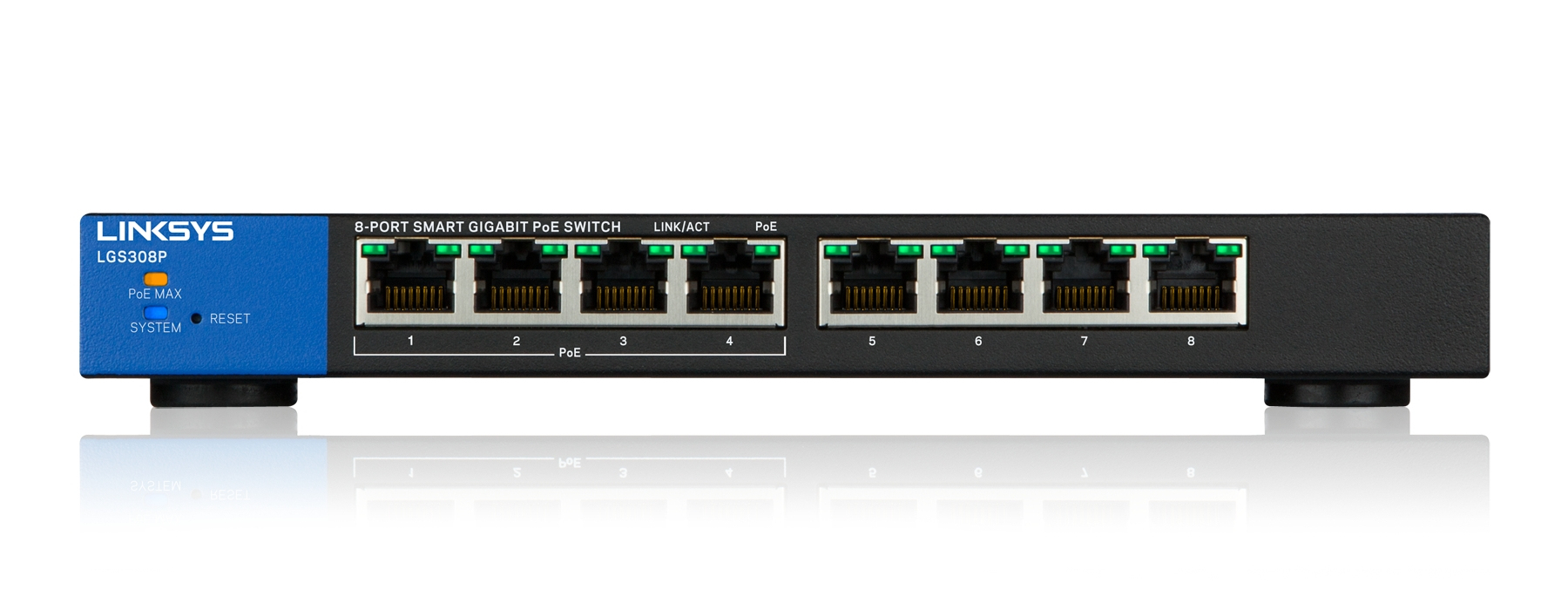

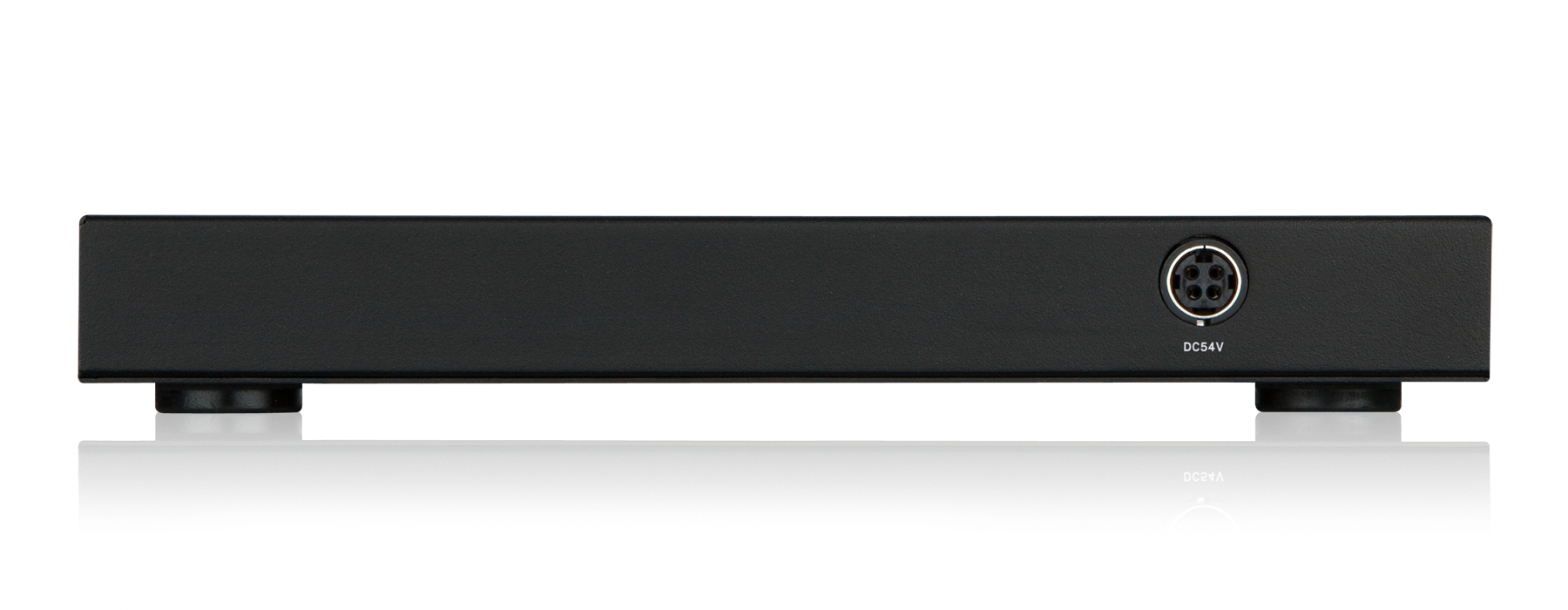

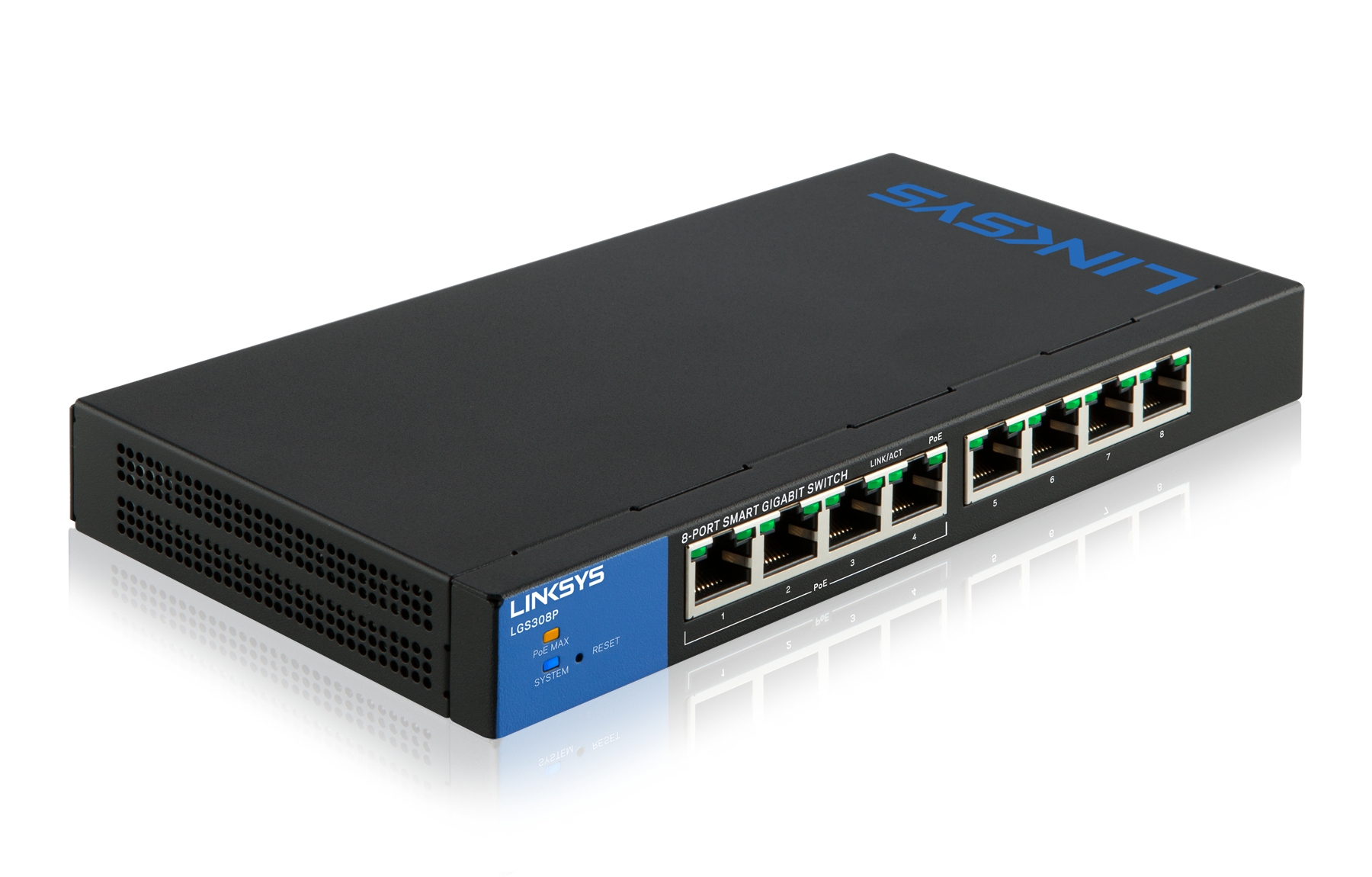

Linksys 8-Port Smart Gigabit PoE+ Switch (LGS308P)
Model LGS308PPart no. LGS308P-AUEAN 745883635177
60 specifications
- Memory128 MB
- Weight562 g
- ColourBlack, Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 128 MB
- Weight
- 562 g
- Colour
- Black, Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- Linksys
- Category
- Network Switch
- Model
- LGS308P
- Part numbers
- LGS308P-AU, LGS308P-EU, LGS308P-UK, LGS308P
- EAN / UPC
- 745883635177, 092015030301, 132018278475, 145036691003 +17 more
- Also known as
- Linksys 8-Port Smart Gigabit PoE+ Switch (LGS308P)
Specifications
60 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN, Tagged VLAN, Port-based VLAN |
| Number of VLANs | 128 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x |
| MAC address filtering | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, IGMP v1/v2/v3, Telnet, DHCP, HTTP/HTTPS |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black, Blue |
| LED indicators | Activity, Link, PoE, System |
Performance
| Specification | Value |
|---|---|
| Memory type | DRAM |
| Internal memory | 128 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Power consumption (typical) | 10.17 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 72 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 104 mm |
| Height | 25 mm |
| Weight | 562 g |
