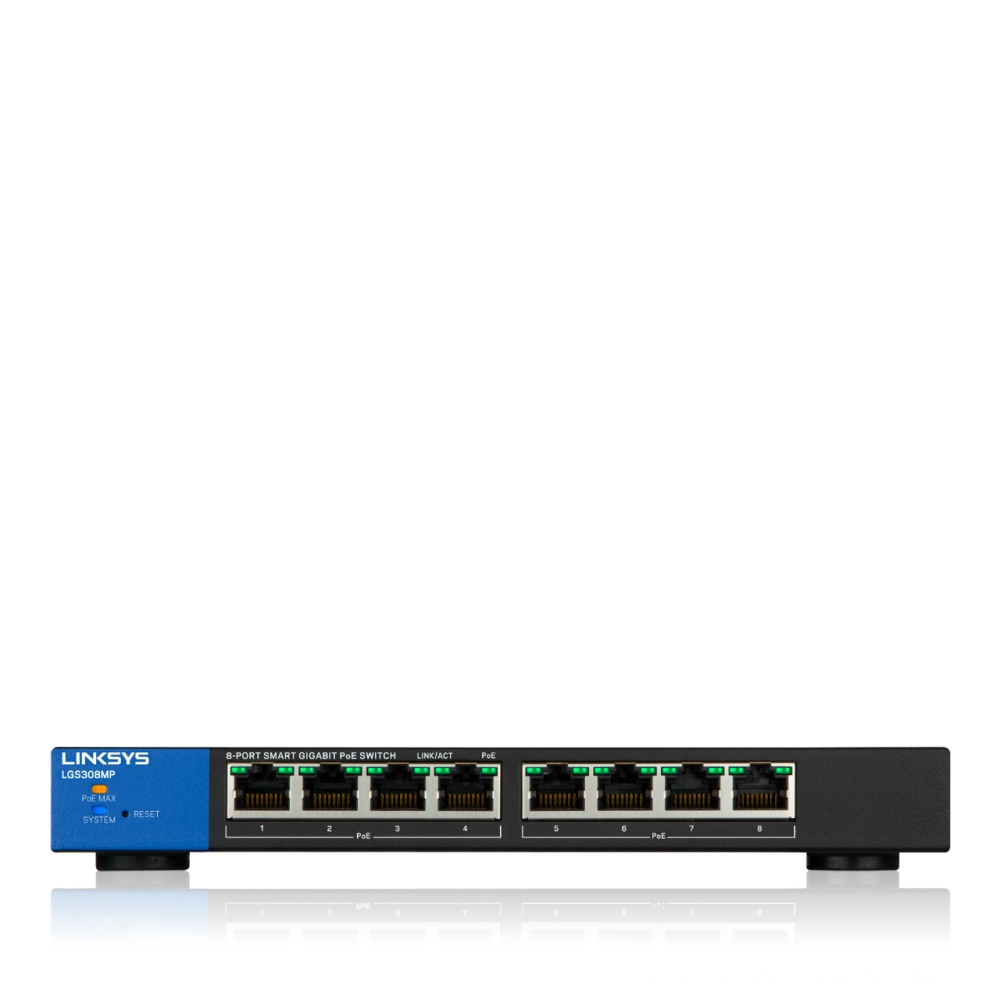

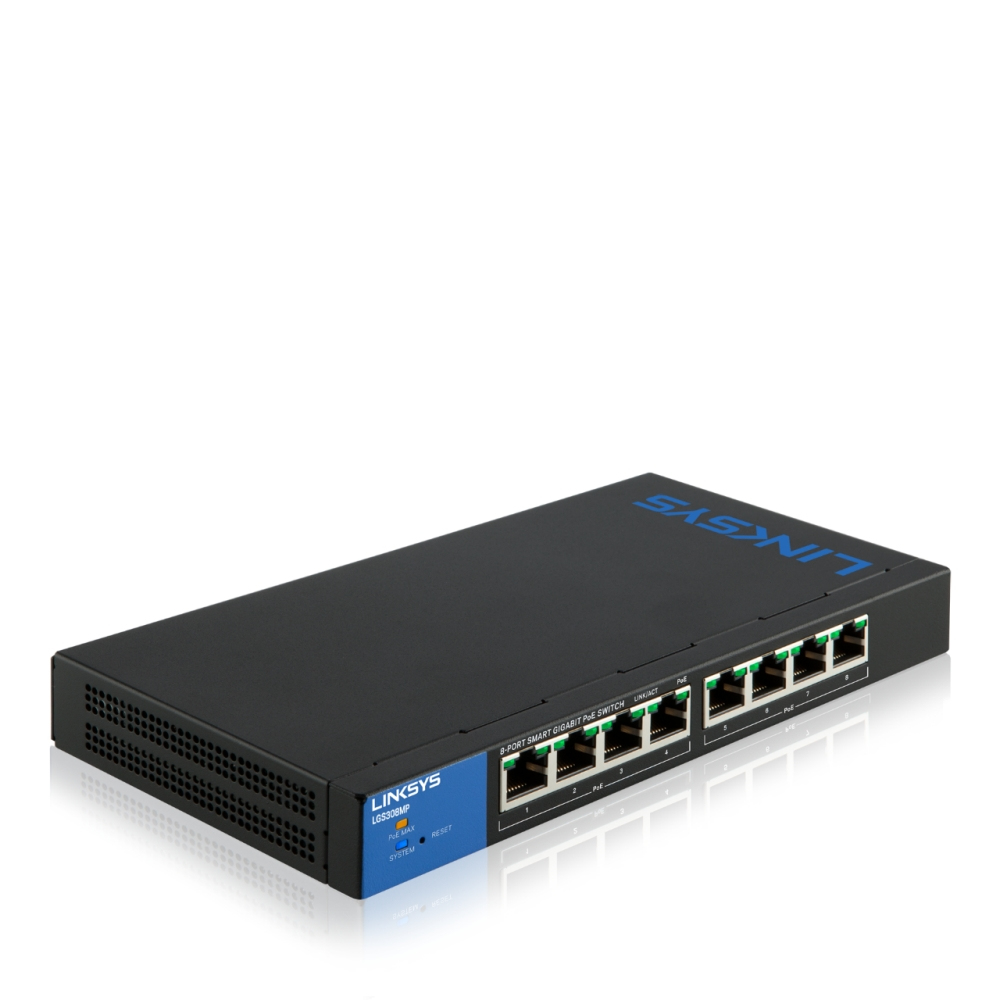

Linksys LGS308MP-UK network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Blue
Model LGS308MP-UKEAN 745883757695
45 specifications
- Weight580 g
- ColourBlack, Blue
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- Networking standardsIEEE 802.1s, IEEE 802.1w
- MAC address table8 entries
Overview
- Weight
- 580 g
- Colour
- Black, Blue
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Networking standards
- IEEE 802.1s, IEEE 802.1w
- MAC address table
- 8 entries
- Brand
- Linksys
- Category
- Network Switch
- Model
- LGS308MP-UK
- Part number
- LGS308MP-UK
- EAN / UPC
- 745883757695
- Also known as
- Linksys LGS308MP-UK network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Blue
Specifications
45 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1s, IEEE 802.1w |
| 10G support | No |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN, Voice VLAN, Tagged VLAN, Port-based VLAN |
| Number of VLANs | 128 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP snooping, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP entries | 256 |
| IGMP snooping | Yes |
| Authentication | Guest VLAN |
| Authentication type | RADIUS |
| IP-MAC-Port binding | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SNMP, SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | IGMPv1,IGMPv2,IGMPv3 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black, Blue |
| LED indicators | Activity, Link, PoE |
| Safety | EEE+, Short Reach + Energy Detect |
Power
| Specification | Value |
|---|---|
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 3.34 A |
| Power consumption (typical) | 10.82 W |
| Power consumption (max) | 130 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 104 mm |
| Height | 25 mm |
| Weight | 580 g |
