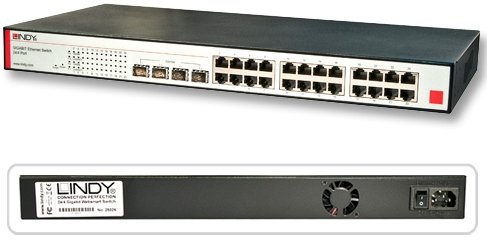

Lindy 25026 network switch Managed L2 1U
Model 25026EAN 4002888250269
45 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- Lindy
- Category
- Network Switch
- Model
- 25026
- Part number
- 25026
- EAN / UPC
- 4002888250269
- Also known as
- Lindy 25026 network switch Managed L2 1U
Specifications
45 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Fiber ports quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Number of VLANs | 4000 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑SX, 100BASE-LX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| MAC address filtering | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Housing material | Metal |
| LED indicators | Link, Power, Status |
| Number of fans | 1 fan(s) |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power consumption (typical) | 30 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Management level | 2 |
| Dimensions (WxDxH) | 445 x 210 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power LED | Yes |
| Power requirements | 100-240V AC, 50-60Hz |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90% |
What people say
Reviews & ratings
Lindy 25026 network switch Managed L2 1U
No reviews yet
Be the first to tell others how Lindy 25026 network switch Managed L2 1U works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lindy 25026 network switch Managed L2 1U
All network switch comparisons- Lindy 25026 network switch Managed L2 1U vsLindy 8 x Gigabit EthernetCompare specs

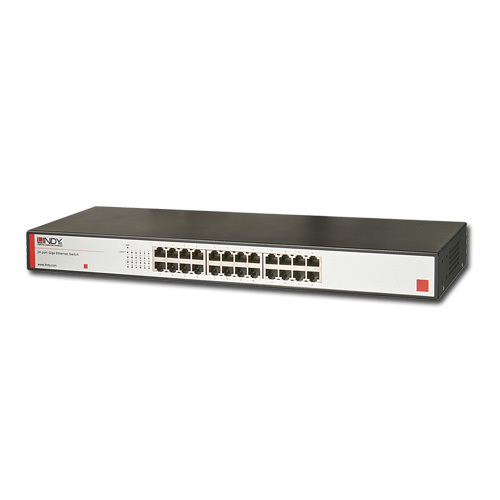

- Lindy 25026 network switch Managed L2 1U vsLindy 24 x Gigabit EthernetCompare specs
- Lindy 25026 network switch Managed L2 1U vsLindy Network Switch - Gigabit, Desktop, 8 Port, 10/100/1000Compare specs
- Lindy 25026 network switch Managed L2 1U vsLindy 25070 network switch Unmanaged BlackCompare specs

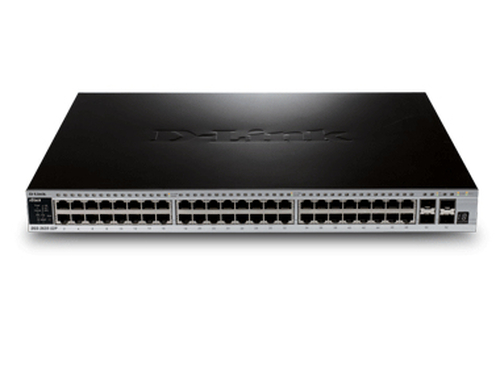

- Lindy 25026 network switch Managed L2 1U vsD-Link DGS-3620-52P-SI L3 Power over Ethernet (PoE) 1U BlackCompare specs
- Lindy 25026 network switch Managed L2 1U vsD-Link DGS-3620-52P-EI L3 Power over Ethernet (PoE) BlackCompare specs

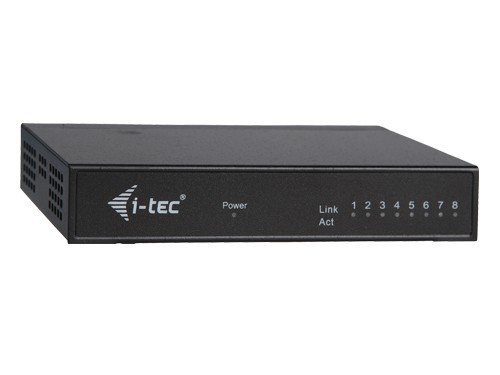

- Lindy 25026 network switch Managed L2 1U vsi-tec SW100P8 network switch Managed L2 BlackCompare specs

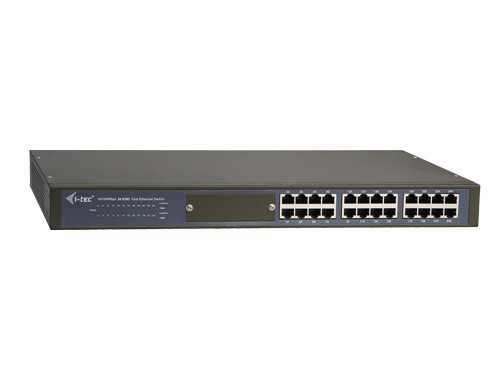

- Lindy 25026 network switch Managed L2 1U vsi-tec SW100P24 network switch Managed 1U BlackCompare specs
