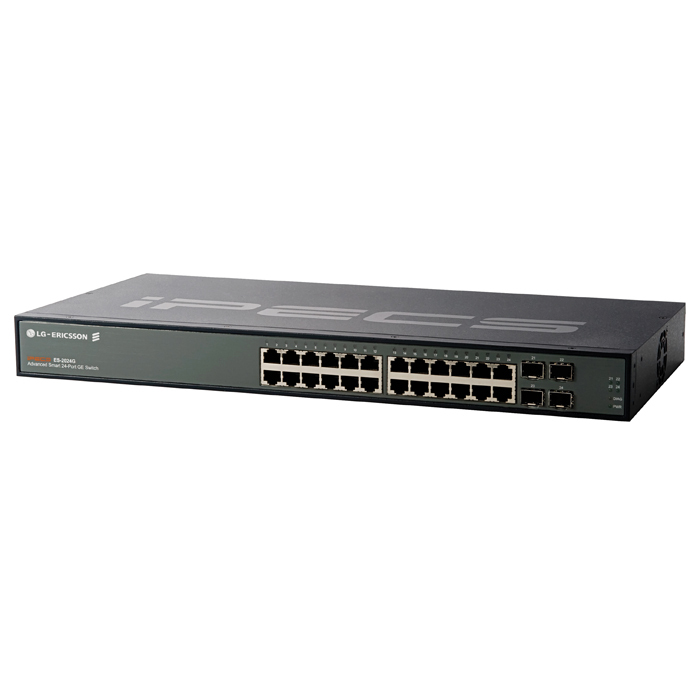

LG ES-2024G network switch Managed L2 Black
Model ES-2024GEAN 883935000471
57 specifications
- Memory128 MB
- Speed1 Gbit/s
- ConnectivityWired
- Weight1.7 kg
- ColourBlack
- Switch typeManaged
Overview
- Memory
- 128 MB
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.7 kg
- Colour
- Black
- Switch type
- Managed
- Brand
- LG
- Category
- Network Switch
- Model
- ES-2024G
- Part number
- ES-2024G
- EAN / UPC
- 883935000471, 883935000860
- Also known as
- LG ES-2024G network switch Managed L2 Black
Specifications
57 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| MIB support | LLDP |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 4096 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LH, 1000BASE‑LX, 1000BASE‑SX, 100BASE-FX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Throughput | 35.7 Mpps |
| Number of queues | 4 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, RMONv1, SNTP, HTTP, HTTPS |
| Supported network protocols | RSTP, STP, MSTP, IPv4, DHCP, TCP/IP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | LAN |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 23 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 210 x 44 mm |
| Connectivity technology | Wired |
| Authentication method | TACACS+, RADIUS, IP |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 4000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.7 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A, CE, UL, CB WEEE, RoHS, PFOS |
