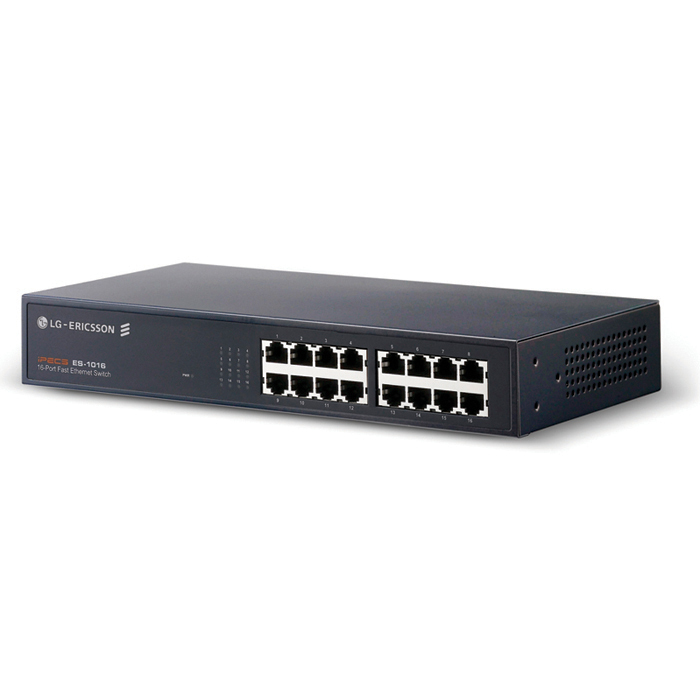

LG ES-1016 network switch Unmanaged Black
Model ES-1016EAN 662698601534
32 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Weight1.15 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.15 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- LG
- Category
- Network Switch
- Model
- ES-1016
- Part number
- ES-1016
- EAN / UPC
- 662698601534, 883935000266
- Also known as
- LG ES-1016 network switch Unmanaged Black
Specifications
32 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 3.2 Gbit/s |
| Number of queues | 4 |
| Maximum data transfer rate | 0.1 Gbit/s |
| Jumbo frames support | No |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 280 x 135 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | Fast Ethernet |
| Packet transfer speed | 1.25 Mbits |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.15 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC A, CE, WEEE, RoHS |
