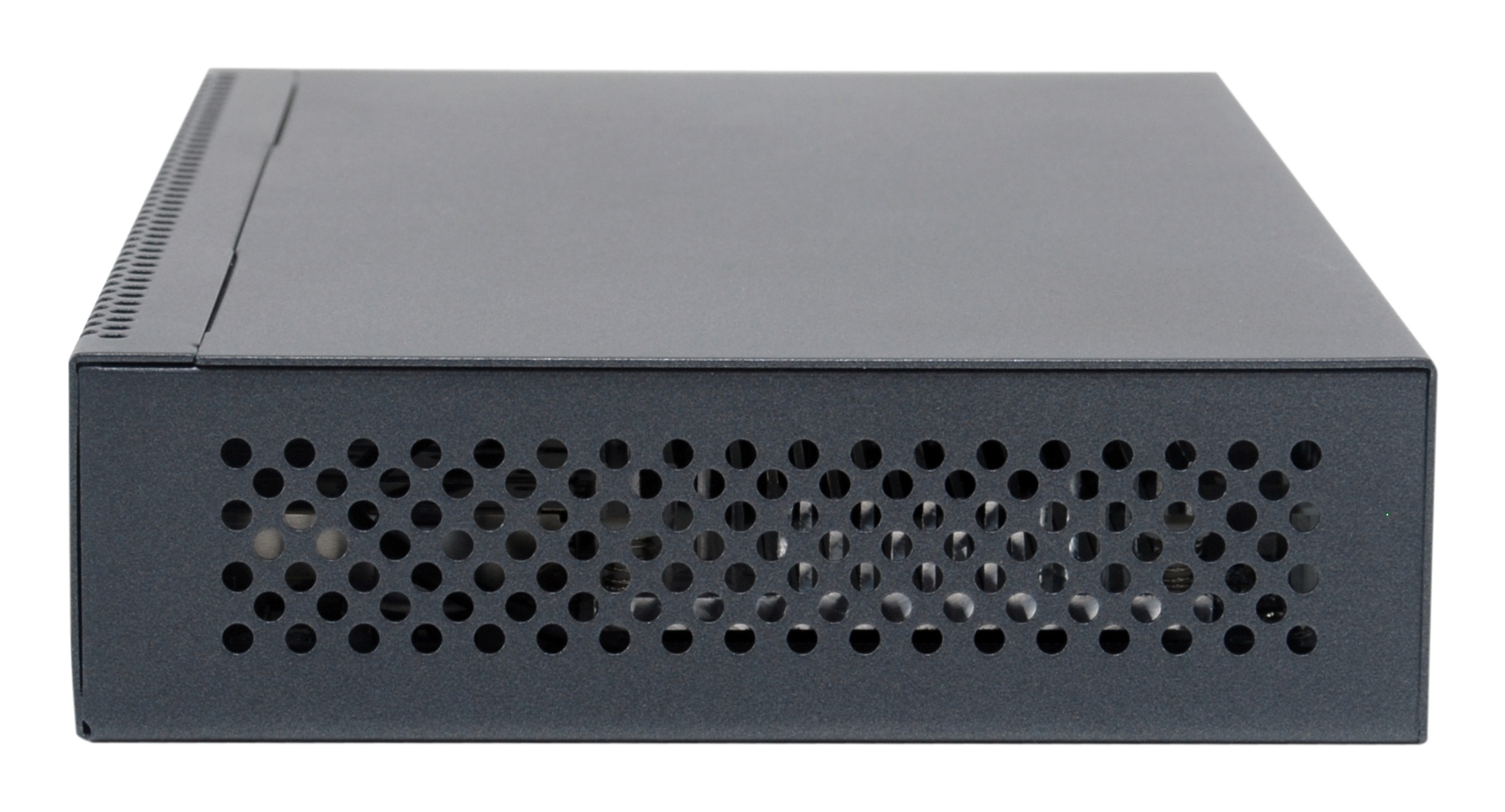

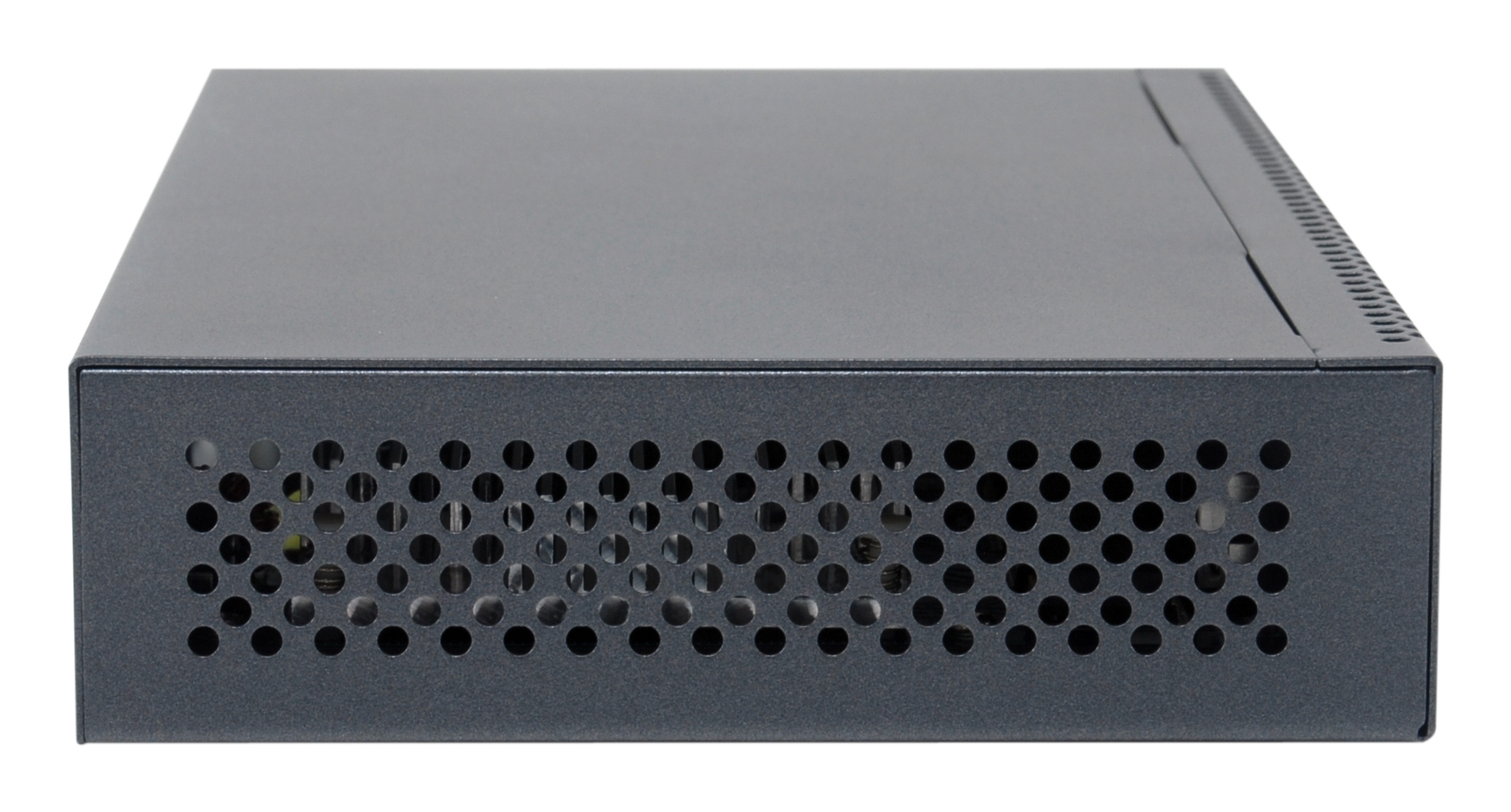

8-Port L3 Managed 10-Gigabit Switch
4 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks
Model XEL-0891Part no. 57082913101EAN 4015867242971
63 specifications
- TypeDesktop
- Weight1.1 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportYes
Overview
- Type
- Desktop
- Weight
- 1.1 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- XEL-0891
- Part number
- 57082913101
- EAN / UPC
- 4015867242971
- Also known as
- LevelOne 8-Port L3 Managed 10-Gigabit Switch, 4 x 1G/2.5G/5G/10G RJ45, 4 x 1G/2.5G/10G SFP+ Uplinks
Specifications
63 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3bz, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119.04 Mpps |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP snooping, DHCP Option 82, DHCP Option 43, DHCP Option 60, DHCP Option 61, DHCP Option 67, DHCP client |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Desktop |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 3 A |
| Power consumption (max) | 29.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 130 mm |
| Height | 37.8 mm |
| Weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) to DB9 |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 310 mm |
| Package depth | 200 mm |
| Package height | 80 mm |
| Package weight | 1.5 kg |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 8.5 kg |
| Shipping (inner) case height | 21.8 cm |
| Shipping (inner) case length | 32.3 cm |
| Shipping (inner) case width | 42.3 cm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 8517620000 |
