OSW-1061 network switch Managed L2
2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
Model OSW-1061EAN 4015867236444
66 specifications
- Memory1 MB
- Weight8 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 1 MB
- Weight
- 8 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- OSW-1061
- Part number
- OSW-1061
- EAN / UPC
- 4015867236444
- Also known as
- LevelOne OSW-1061 network switch Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
Specifications
66 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Policy-based routing | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| IP Source Guard (IPSG) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Link, Power |
| International Protection (IP) code | IP55 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1 MB |
| Flash memory | 120 MB |
| Fanless | No |
| Mean time between failures (MTBF) | 4000000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 200 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 185 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 280 mm |
| Depth | 200 mm |
| Height | 250 mm |
| Weight | 8 kg |

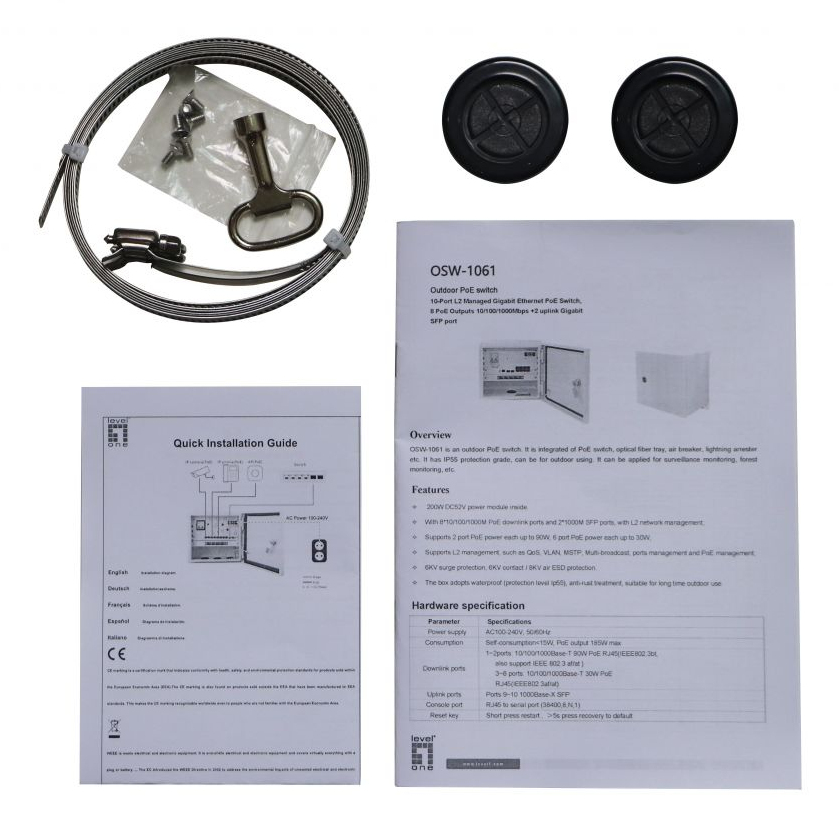

Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
