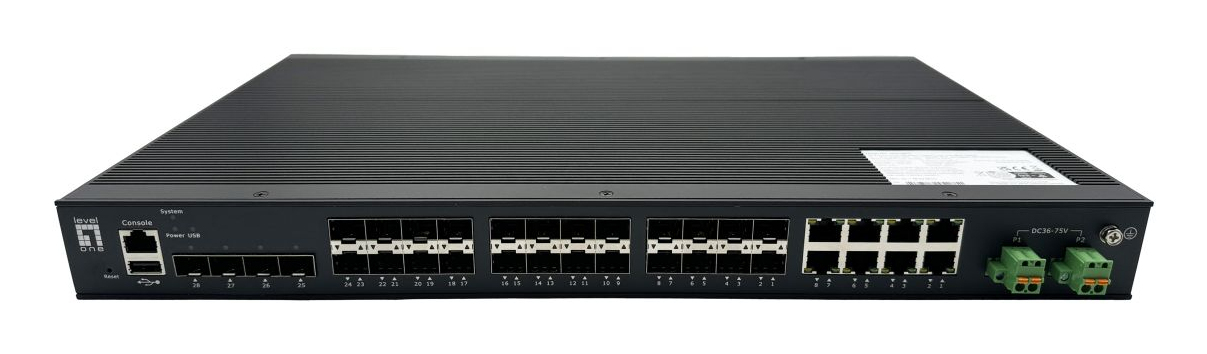

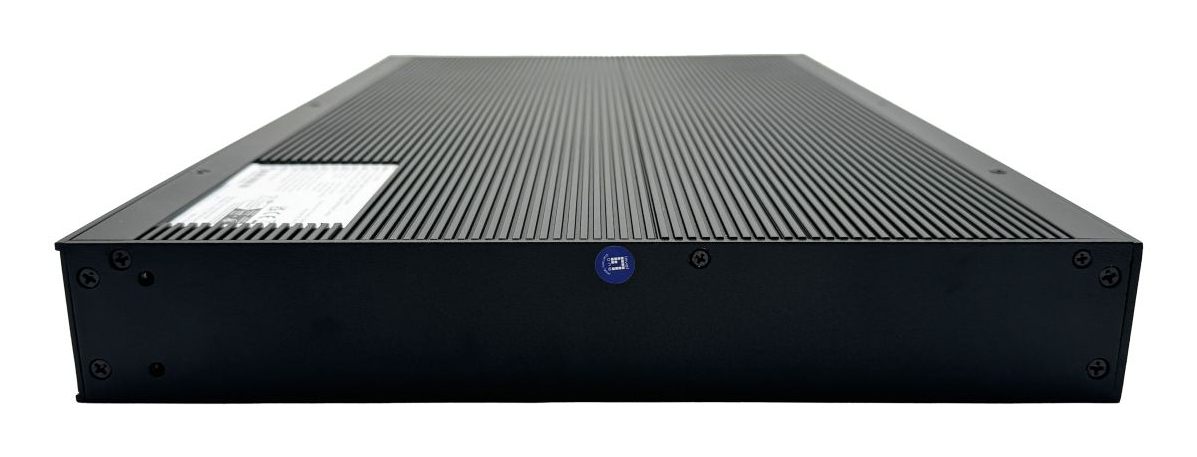

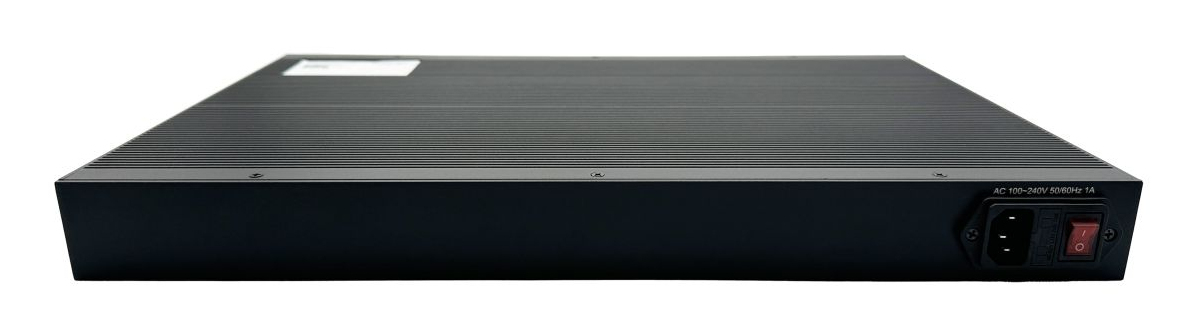

LevelOne 28-Port L2 Plus Managed Gigabit Fiber Industrial Switch

28-Port L2 Plus Managed Gigabit Fiber Industrial Switch

4 x 1G/2.5G/10G SFP+, 16 x 1G SFP, 8 x Gigabit SFP/RJ45 Combo, Redundant AC/DC Power, -40°C to

Model IGX-2872EAN 4015867241646

75 specifications

Noise0 dB
Type1U
Weight4.1 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8

See all specifications

Overview

Noise: 0 dB
Type: 1U
Weight: 4.1 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8

Brand: LevelOne
Category: Network Switch
Model: IGX-2872
Part number: IGX-2872
EAN / UPC: 4015867241646, 4015867245866
Also known as: LevelOne 28-Port L2 Plus Managed Gigabit Fiber Industrial Switch, 4 x 1G/2.5G/10G SFP+, 16 x 1G SFP, 8 x Gigabit SFP/RJ45 Combo, Redundant AC/DC Power, -40°C to

Specifications

75 specifications in 18 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	16
SFP+ module slots quantity	4
Power cables quantity	2
USB 2.0 ports quantity	1

Network

Specification	Value
Networking standards	IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.3ad
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
Port mirroring	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Flow control support	Yes
QinQ implementation	QinQ
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Packet buffer memory	1.5 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCP client, DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	RADIUS
Password protection	Yes
Security algorithms	SNMP, SNMPv2, SNMPv2c, SNMPv3, HTTPS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	System, Power, USB, Link, ACT
DIN rail mounting	Yes
International Protection (IP) code	IP40
Market segment	Industrial
On/off switch	Yes

Performance

Specification	Value
Noise level	0 dB
Telnet	Yes
sFlow	Yes
Fanless	Yes

Power

Specification	Value
Power source	AC/DC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
DC input voltage	38 - 72 V
Power consumption (typical)	40 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Other features

Specification	Value
Packaging content	Declaration of Conformity
Size (imperial)	48.3 cm (19")
Terminal block port	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	440 mm
Depth	280 mm
Height	45 mm
Weight	4.1 kg

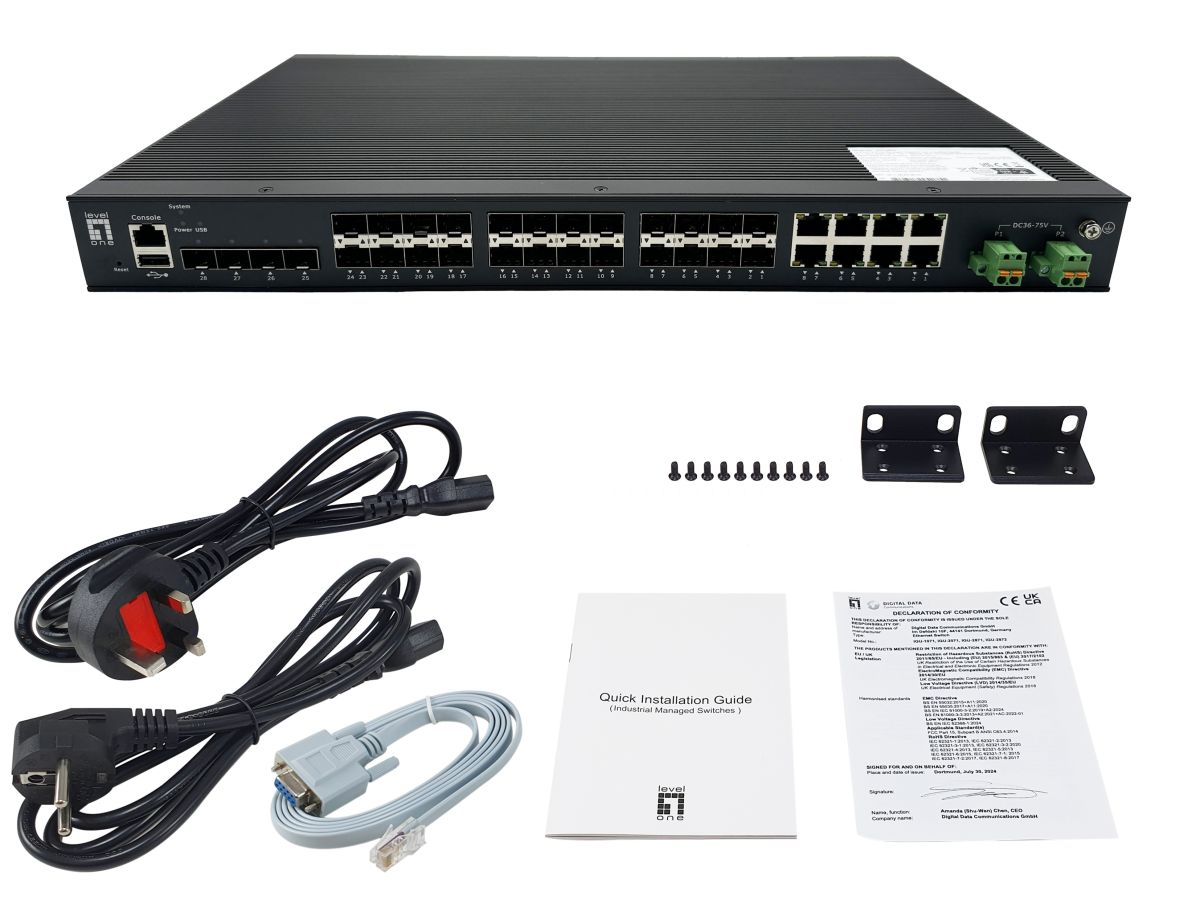

Packaging content

Specification	Value
Cables included	Power
Quick start guide	Yes
Rack mount kit	Yes

Sustainability

Specification	Value
Doesn't contain	Lead, Mercury, Cadmium

Certificates

Specification	Value
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS

Logistics data

Specification	Value
Customs product code (TARIC)	8517620000
Harmonized System (HS) code	851762
