LevelOne 20-Port L2 Plus Managed Industrial Switch

20-Port L2 Plus Managed Industrial Switch

8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C

Model IGX-2072EAN 846359060940

91 specifications

Weight1.79 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8
10G supportYes
MAC address table16000 entries

See all specifications

Overview

Weight: 1.79 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8
10G support: Yes
MAC address table: 16000 entries

Brand: LevelOne
Category: Network Switch
Model: IGX-2072
Part number: IGX-2072
EAN / UPC: 846359060940, 4015867239285, 4015867245859
Also known as: LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5/10GbE SFP+, DIN-Rail, -40°C to 80°C

Specifications

91 specifications in 19 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	8
SFP+ module slots quantity	4
USB Type-A ports quantity	1
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Broadcast storm control	Yes
Cable length detection	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	112 Gbit/s
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	12 MB

Security

Specification	Value
DHCP features	DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	IEEE 802.1x
IP-MAC-Port binding	Yes
Loop protection	Yes
MAC address filtering	Yes
Packet filtering	Yes
Password protection	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Security algorithms	HTTPS

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
IP Source Guard (IPSG)	Yes

Design

Specification	Value
Product colour	Black
LED indicators	Ring, System, USB
DIN rail mounting	Yes
International Protection (IP) code	IP40

Performance

Specification	Value
Dying Gasp	Yes
Firmware upgradeable	Yes
Telnet	Yes
Fanless	Yes
Mean time between failures (MTBF)	200000 h

Power

Specification	Value
Power source	DC
Redundant power supply (RPS) support	Yes
Input voltage	12 - 75 V
Power consumption (max)	27 W
Surge protection	Yes
Surge protection voltage	6 kV

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Other features

Specification	Value
Terminal block port	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	110 mm
Depth	115 mm
Height	158 mm
Weight	1.79 kg

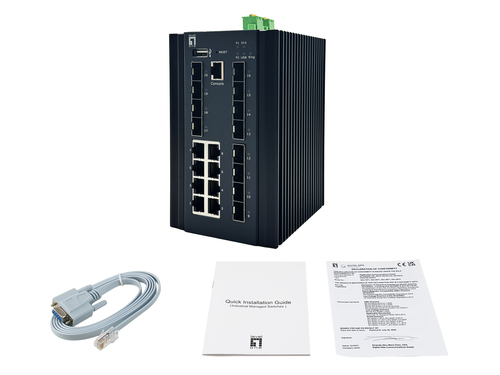

Packaging content

Specification	Value
Cables included	LAN (RJ-45) to DB9
Quick start guide	Yes

Packaging data

Specification	Value
DIN rail included	Yes
Package width	232 mm
Package depth	180 mm
Package height	138 mm
Package weight	2.12 kg

Certificates

Specification	Value
Compliance certificates	UKCA, Federal Communications Commission (FCC), RoHS, CE

Technical details

Specification	Value
Pallet gross length	80 cm
Pallet gross width	120 cm

Logistics data

Specification	Value
Pallet gross height	167.4 cm
Country of origin	China
Master (outer) case width	440 mm
Master (outer) case length	375 mm
Harmonized System (HS) code	851762
Master (outer) case height	255 mm
Master (outer) case gross weight	15 kg
Products per master (outer) case	6 pc(s)
