20-Port L2 Plus Managed Industrial Switch
8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5GbE SFP, DIN-Rail, -40°C to 80°C
Model IGU-2072EAN 846359060933
91 specifications
- Weight1.79 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
- MAC address table16000 entries
Overview
- Weight
- 1.79 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGU-2072
- Part number
- IGU-2072
- EAN / UPC
- 846359060933, 4015867239278, 4015867245835
- Also known as
- LevelOne 20-Port L2 Plus Managed Industrial Switch, 8 x 1GbE RJ45, 8 x 1GbE SFP, 4 x 1/2.5GbE SFP, DIN-Rail, -40°C to 80°C
Specifications
91 specifications in 19 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 8 |
| SFP+ module slots quantity | 4 |
| USB Type-A ports quantity | 1 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 52 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | IEEE 802.1x |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Security algorithms | HTTPS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IP Source Guard (IPSG) | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
| LED indicators | Power, Ring, System, USB |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
Performance
| Specification | Value |
|---|---|
| Dying Gasp | Yes |
| Firmware upgradeable | Yes |
| Telnet | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 200000 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Redundant power supply (RPS) support | Yes |
| Input voltage | 12 - 75 V |
| Power consumption (max) | 25 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 115 mm |
| Height | 158 mm |
| Weight | 1.79 kg |

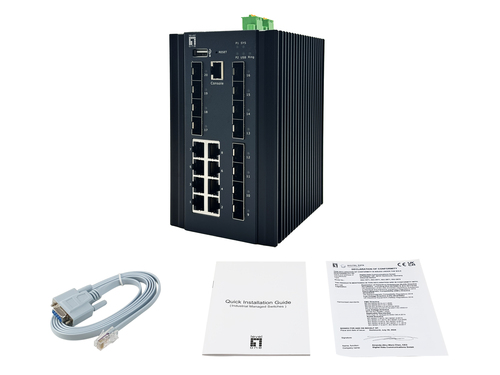

Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) to DB9 |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| DIN rail included | Yes |
| Terminal block included | Yes |
| Package width | 232 mm |
| Package depth | 180 mm |
| Package height | 138 mm |
| Package weight | 2.12 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | UKCA, Federal Communications Commission (FCC), RoHS, CE |
Technical details
| Specification | Value |
|---|---|
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 167.4 cm |
| Country of origin | China |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 375 mm |
| Harmonized System (HS) code | 851762 |
| Master (outer) case height | 255 mm |
| Master (outer) case gross weight | 15 kg |
| Products per master (outer) case | 6 pc(s) |
