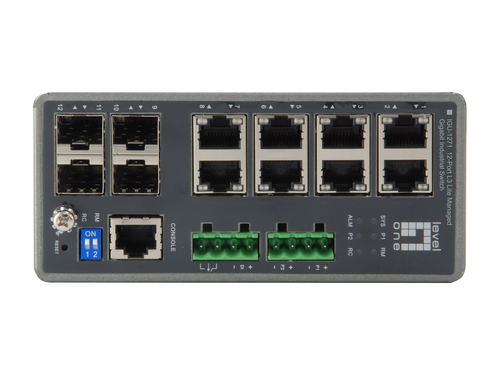

TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 4 x SFP, DIN-Rail, -40°C to 75°C
Model IGU-1271EAN 4015867202661
73 specifications
- Memory128 MB
- Weight700 g
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Memory
- 128 MB
- Weight
- 700 g
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGU-1271
- Part number
- IGU-1271
- EAN / UPC
- 4015867202661, 5715063075081
- Also known as
- LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 4 x SFP, DIN-Rail, -40°C to 75°C
Specifications
73 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 24 Gbit/s |
| Forwarding rate | 17.856 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| Root protection | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP, Web, Telnet, SSH |
| Supported network protocols | IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Alarm, Power, Status, System |
| DIN rail mounting | Yes |
| Safety | UL,CB |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Remarking priority | Yes |
| sFlow | Yes |
| Mean time between failures (MTBF) | 476206 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 48 - 57 V |
| Power consumption (max) | 239.2 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 36.03 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 130 mm |
| Height | 135 mm |
| Weight | 700 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Package width | 255 mm |
| Package depth | 207 mm |
| Package height | 85 mm |
| Package weight | 900 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, DMS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 520 mm |
| Master (outer) case length | 445 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 2.4 kg |
| Products per master (outer) case | 10 pc(s) |
