IGU-0501 network switch Gigabit Ethernet (10/100/1000) Black
Model IGU-0501EAN 846359054017
41 specifications
- Weight350 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- MAC address table8000 entries
- Mean time between failures (MTBF)400000 h
Overview
- Weight
- 350 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- MAC address table
- 8000 entries
- Mean time between failures (MTBF)
- 400000 h
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGU-0501
- Part number
- IGU-0501
- EAN / UPC
- 846359054017, 4015867223970
- Also known as
- LevelOne IGU-0501 network switch Gigabit Ethernet (10/100/1000) Black
Specifications
41 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 10 Gbit/s |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| DIN rail mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 400000 h |
Power
| Specification | Value |
|---|---|

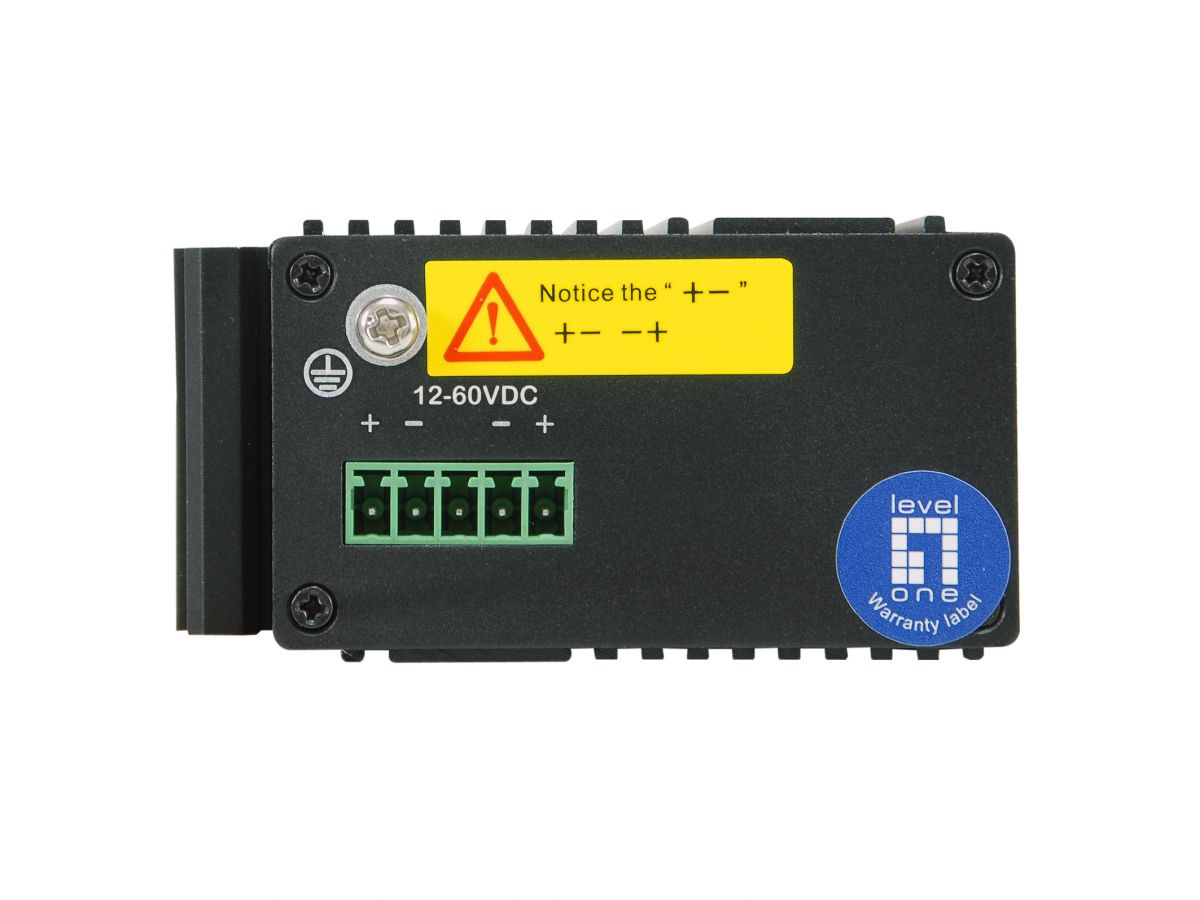

| Power source | DC |
| Power supply included | No |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 50 mm |
| Height | 99 mm |
| Weight | 350 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 110 mm |
| Package depth | 62 mm |
| Package height | 130 mm |
| Package weight | 400 g |
Technical details
| Specification | Value |
|---|---|
| Pallet net height | 150 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
