Hilbert 10-Port Industrial Gigabit Smart Lite Switch, 8x RJ45, 2x SFP
Model IGS-2110EAN 846359060469
85 specifications
- Noise0 dB
- Weight540 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Noise
- 0 dB
- Weight
- 540 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGS-2110
- Part number
- IGS-2110
- EAN / UPC
- 846359060469, 4015867236208
- Also known as
- LevelOne Hilbert 10-Port Industrial Gigabit Smart Lite Switch, 8x RJ45, 2x SFP
Specifications
85 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Fiber uplink ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Queue scheduling algorithms | Priority queuing (PQ) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Power, Link, Activity |

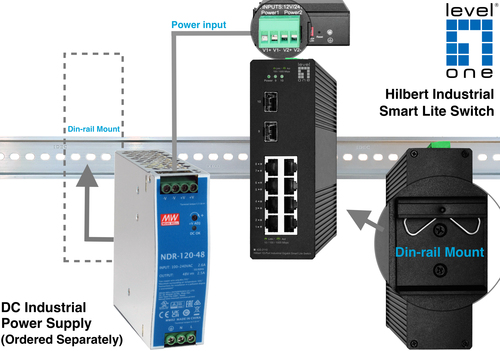

| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
Performance
| Specification | Value |
|---|---|
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 43800 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 57 V |
| Power consumption (typical) | 9 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Power protection features | Surge protection |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 30.71 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 149.5 mm |
| Depth | 122.5 mm |
| Height | 50 mm |
| Weight | 540 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| DIN rail included | Yes |
| Package type | Box |
| Terminal block included | Yes |
| Package width | 230 mm |
| Package depth | 160 mm |
| Package height | 73 mm |
| Package weight | 780 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
Technical details
| Specification | Value |
|---|---|
| Layers per pallet (air) | 16 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 154.4 cm |
| Country of origin | China |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 395 mm |
| Harmonized System (HS) code | 8517620090 |
| Master (outer) case height | 350 mm |
| Master (outer) case gross weight | 16 kg |
| Products per master (outer) case | 20 pc(s) |
