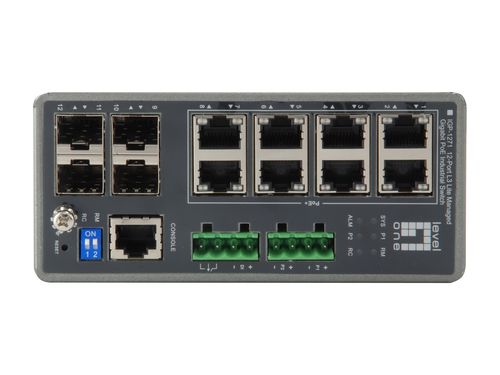

LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs

240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C

Model IGP-1271EAN 4015867202654

84 specifications

Memory128 MB
Weight700 g
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity16
10G supportNo

See all specifications

Overview

Memory: 128 MB
Weight: 700 g
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 16
10G support: No

Brand: LevelOne
Category: Network Switch
Model: IGP-1271
Part number: IGP-1271
EAN / UPC: 4015867202654
Also known as: LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C

Specifications

84 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az
10G support	No
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Cable length detection	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Forwarding rate	17.856 Mpps
Store-and-forward	Yes
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	0.5 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU tunneling	Yes
Loop protection	Yes
Root protection	Yes
SSH/SSL support	Yes

Protocols

Specification	Value
Management protocols	SNMP, Web, Telnet, SSH
GARP VLAN Registration Protocol (GVRP)	Yes
Supported network protocols	IPv4/IPv6

Design

Specification	Value
Product colour	Grey
Reset button	Yes
LED indicators	Alarm, Power, Ring, Status, System
DIN rail mounting	Yes
International Protection (IP) code	IP30
Safety	UL, CB

Performance

Specification	Value
Internal memory	128 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Telnet	Yes
sFlow	Yes
Mean time between failures (MTBF)	476206 h

Power

Specification	Value
Redundant power supply (RPS) support	Yes
DC input voltage	48 - 57 V
Power consumption (max)	239.2 W
Power protection features	Short circuit

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	240 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Heat dissipation	816.18 BTU/h

Weight & dimensions

Specification	Value
Width	62 mm
Depth	130 mm
Height	135 mm
Weight	700 g

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Quick start guide	Yes
Manual	Yes

Packaging data

Specification	Value
Resource CD	Yes
Package width	255 mm
Package depth	207 mm
Package height	85 mm
Package weight	900 g

Certificates

Specification	Value
Certification	RoHS FCC,CE EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 IEC60068-2-32 IEC60068-2-27 IEC60068-2-6

Logistics data

Specification	Value
Country of origin	Taiwan
Master (outer) case width	520 mm
Master (outer) case length	445 mm
Harmonized System (HS) code	85176990
Master (outer) case height	220 mm
Master (outer) case gross weight	2.4 kg
Products per master (outer) case	10 pc(s)
