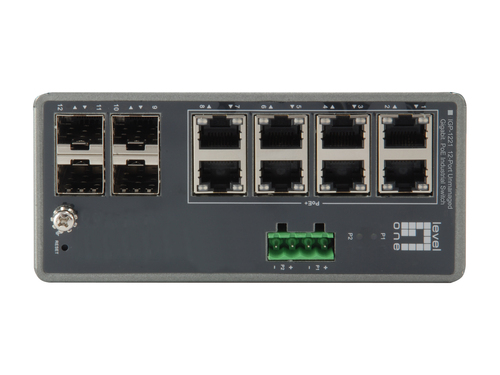

LevelOne 12-Port Gigabit PoE Industrial Switch, 8 PoE Outputs, 802.3at/af PoE

LevelOne 12-Port Gigabit PoE Industrial Switch, 8 PoE Outputs, 802.3at/af PoE

240W, 4 x SFP, DIN-Rail

Model IGP-1221EAN 4015867202647

53 specifications

Memory128 MB
Weight700 g
ColourGrey
Basic switching RJ-45 Ethernet ports quantity8
10G supportNo
MAC address table8000 entries

See all specifications

Overview

Memory: 128 MB
Weight: 700 g
Colour: Grey
Basic switching RJ-45 Ethernet ports quantity: 8
10G support: No
MAC address table: 8000 entries

Brand: LevelOne
Category: Network Switch
Model: IGP-1221
Part number: IGP-1221
EAN / UPC: 4015867202647
Also known as: LevelOne 12-Port Gigabit PoE Industrial Switch, 8 PoE Outputs, 802.3at/af PoE, 240W, 4 x SFP, DIN-Rail

Specifications

53 specifications in 13 groups

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4

Network

Specification	Value
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	0.5 MB

Design

Specification	Value
Product colour	Grey
Reset button	Yes
LED indicators	System
DIN rail mounting	Yes
Safety	UL,CB

Performance

Specification	Value
Internal memory	128 MB
Flash memory	32 MB
Mean time between failures (MTBF)	512345 h

Power

Specification	Value
DC input voltage	48 - 57 V
Power consumption (max)	238.16 W
Power protection features	Short circuit

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	240 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	62 mm
Depth	130 mm
Height	135 mm
Weight	700 g

Packaging content

Specification	Value
Quick start guide	Yes
Manual	Yes

Packaging data

Specification	Value
Package type	Box
Package width	255 mm
Package depth	207 mm
Package height	85 mm
Package weight	900 g

Certificates

Specification	Value
Certification	FCC,CE

Logistics data

Specification	Value
Country of origin	Taiwan
Master (outer) case width	520 mm
Master (outer) case length	445 mm
Harmonized System (HS) code	85176990
Master (outer) case height	220 mm
Master (outer) case gross weight	2.4 kg
Products per master (outer) case	10 pc(s)
