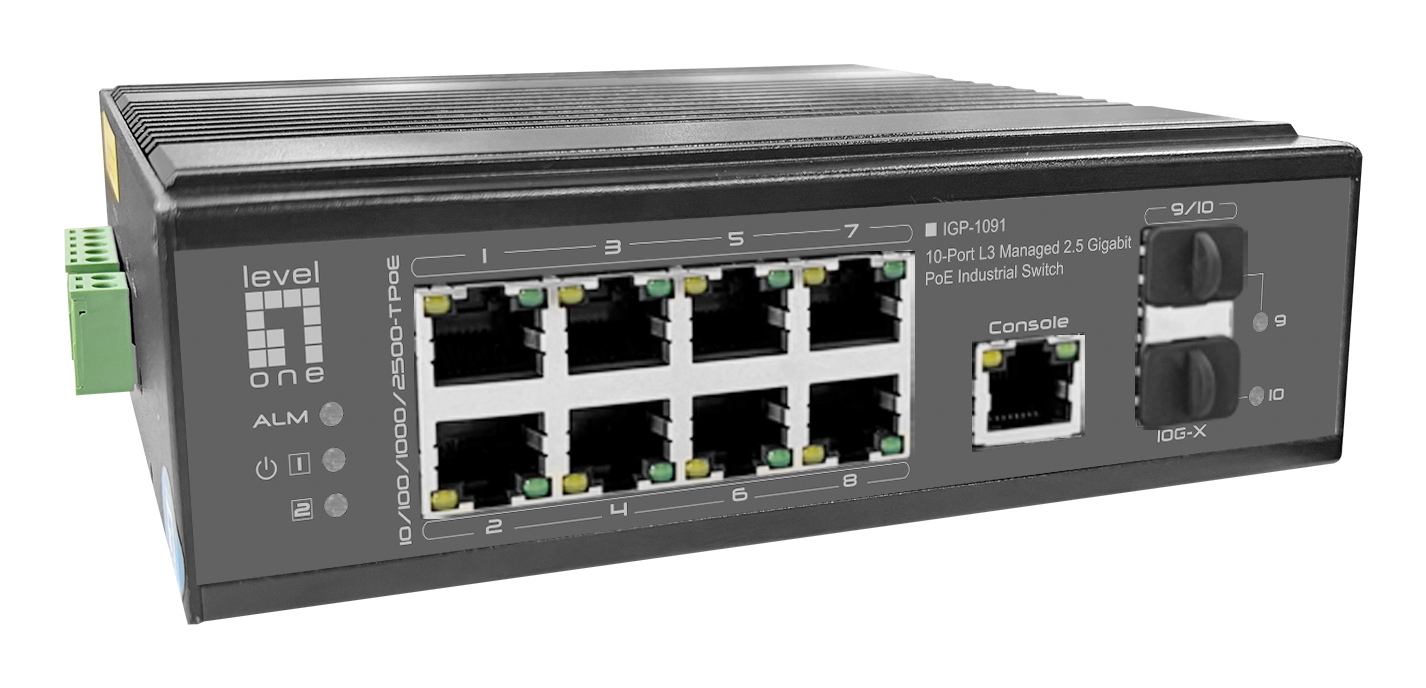

IGP-1091 10-Port L3 Managed 2.5 Gigabit PoE Industrial Switch
2 x 1G/10G SFP+ Uplinks, 8-Port PoE Outputs, Power Budget 480W, 802.3af/at/bt PoE, DIN-R
Model IGP-1091Part no. 55055407101EAN 4015867245132
53 specifications
- TypeDesktop/Wall-Mounting
- Weight1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportYes
Overview
- Type
- Desktop/Wall-Mounting
- Weight
- 1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGP-1091
- Part number
- 55055407101
- EAN / UPC
- 4015867245132
- Also known as
- LevelOne IGP-1091 10-Port L3 Managed 2.5 Gigabit PoE Industrial Switch, 2 x 1G/10G SFP+ Uplinks, 8-Port PoE Outputs, Power Budget 480W, 802.3af/at/bt PoE, DIN-R
Specifications
53 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | Terminal block (5-pin) |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3bt |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 100,1000,2500,10000 Mbit/s |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 120 Gbit/s |
| Forwarding rate | 89.28 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 12228 |
| Packet forwarding | Yes |
Protocols
| Specification | Value |
|---|---|
| Routing protocols | OSPF, RIP, VRRP |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Power, Link, Activity, PoE |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | No |
| DC input voltage | 48 - 57 V |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 480 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 115 mm |
| Height | 50 mm |
| Weight | 1 kg |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead, Mercury, Cadmium |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
