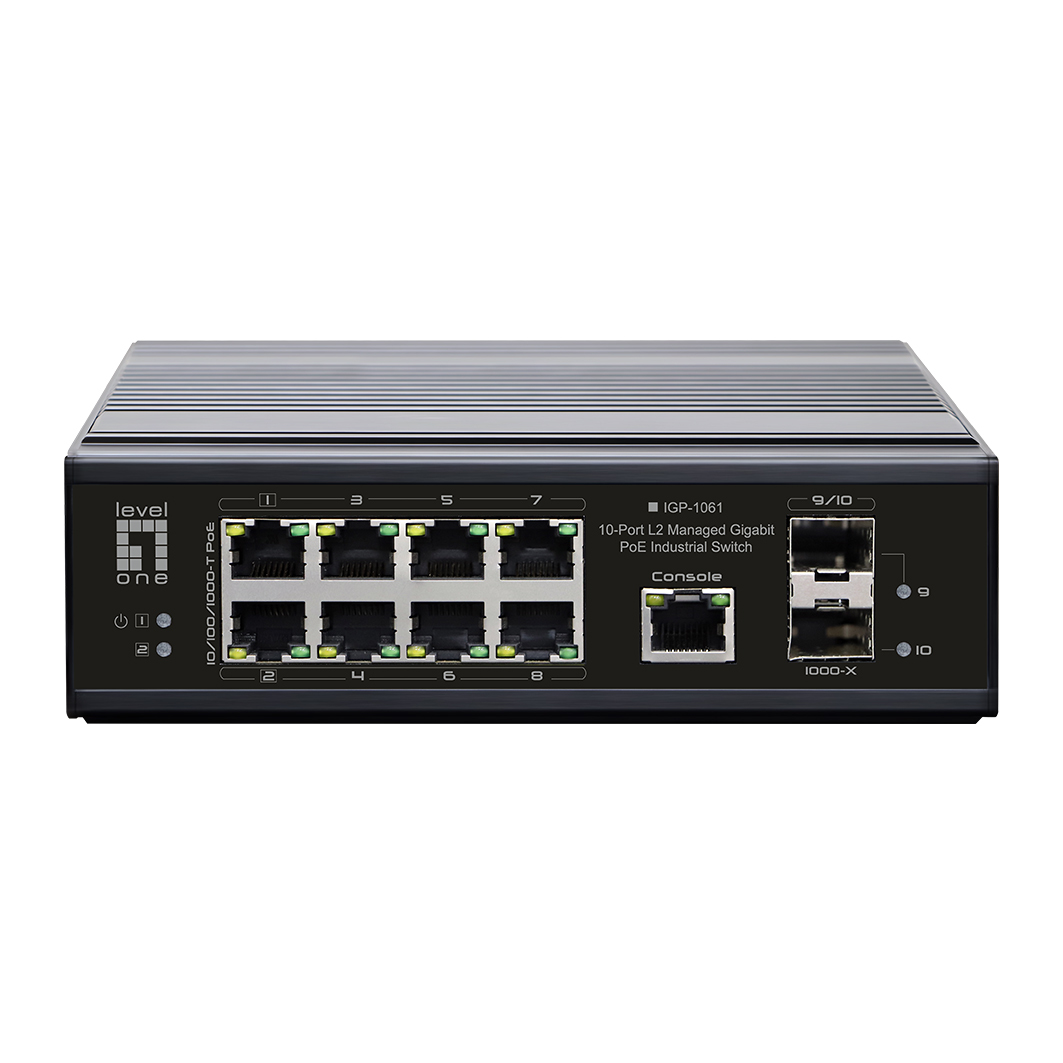

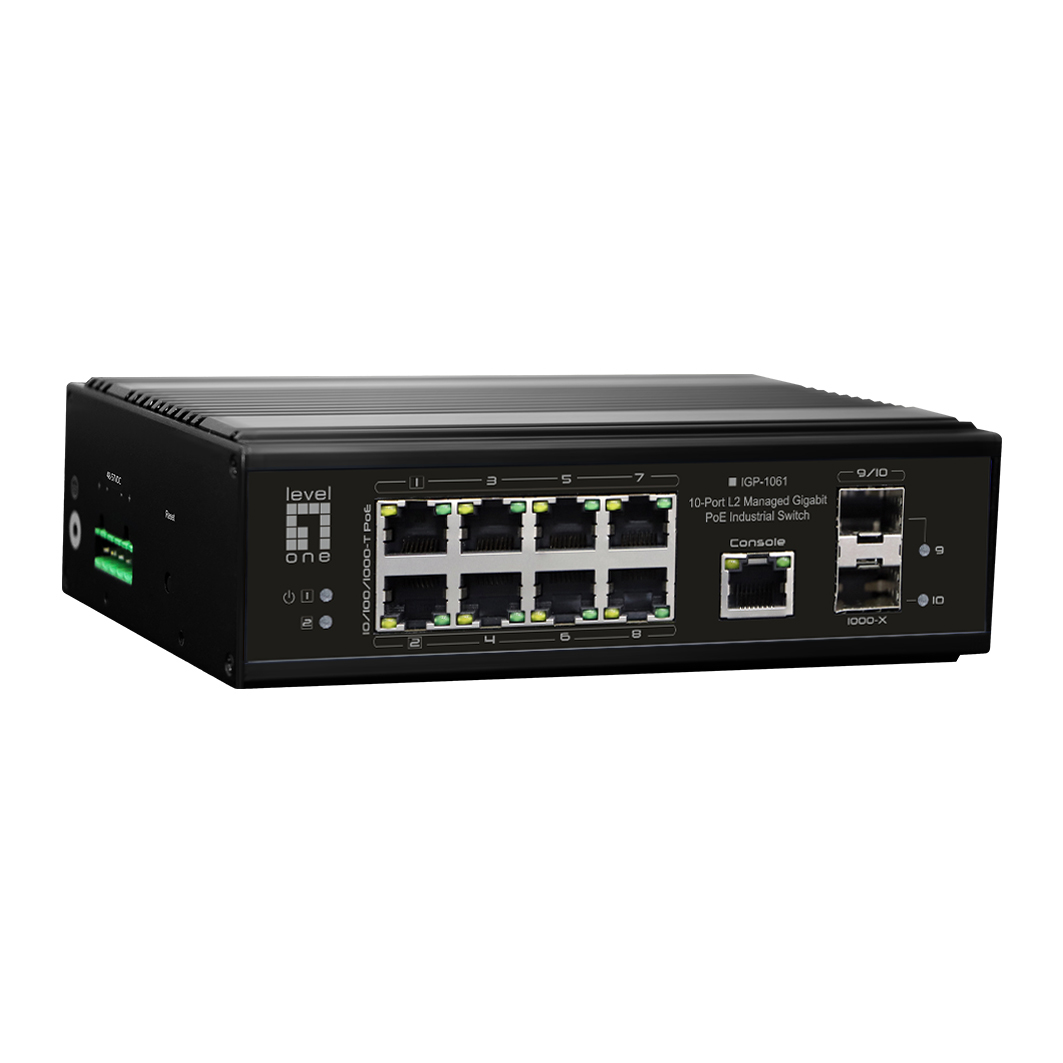

IGP-1061 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model IGP-1061EAN 4015867227886
64 specifications
- Memory1024 MB
- Noise0 dB
- Weight500 g
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 1024 MB
- Noise
- 0 dB
- Weight
- 500 g
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGP-1061
- Part number
- IGP-1061
- EAN / UPC
- 4015867227886
- Also known as
- LevelOne IGP-1061 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
64 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP snooping |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Power |
| DIN rail mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 128 MB |
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 338634 h |
Power
| Specification | Value |
|---|---|
| Power source | DC |

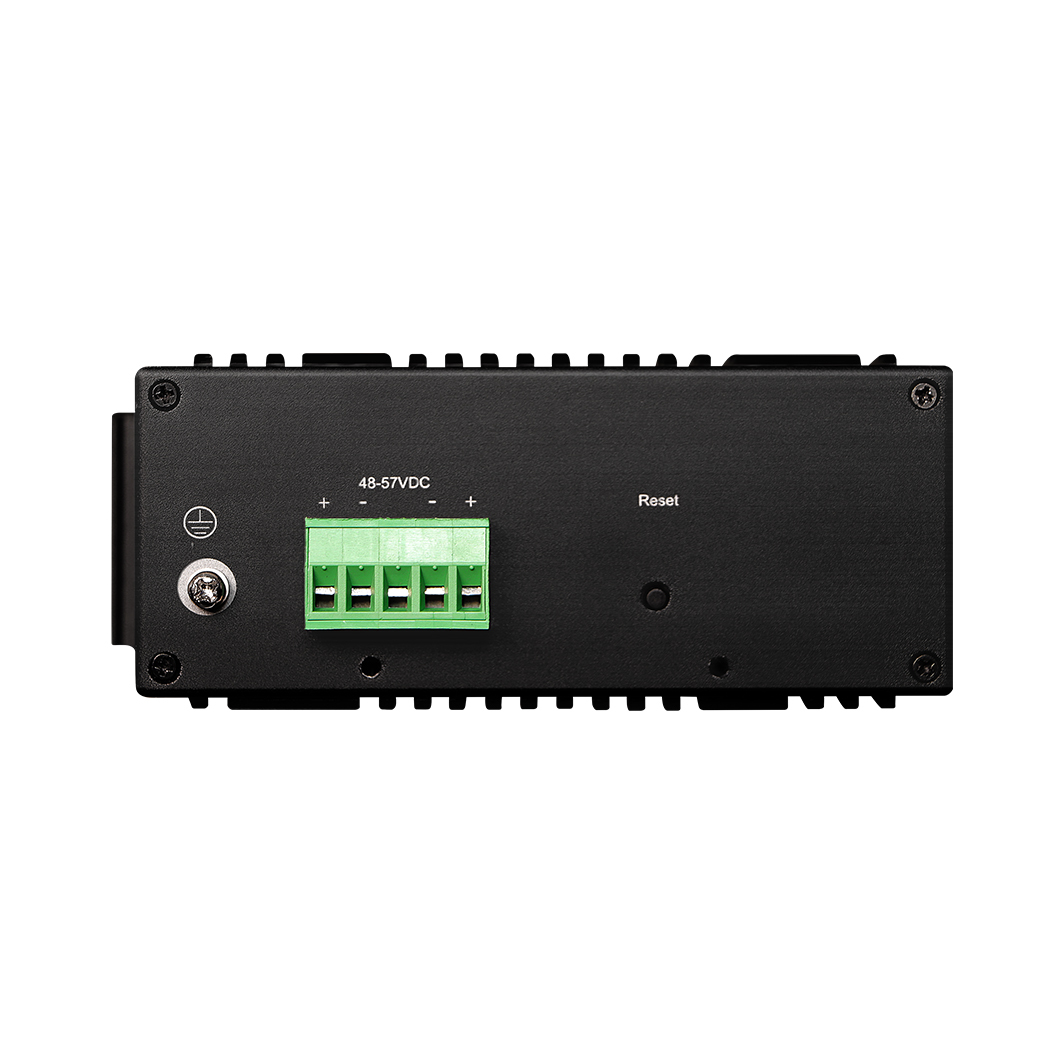

| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 380 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 10 W |
| Total Power over Ethernet (PoE) budget | 360 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 115 mm |
| Height | 50 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 270 mm |
| Package depth | 181 mm |
| Package height | 74 mm |
| Package weight | 1.13 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
