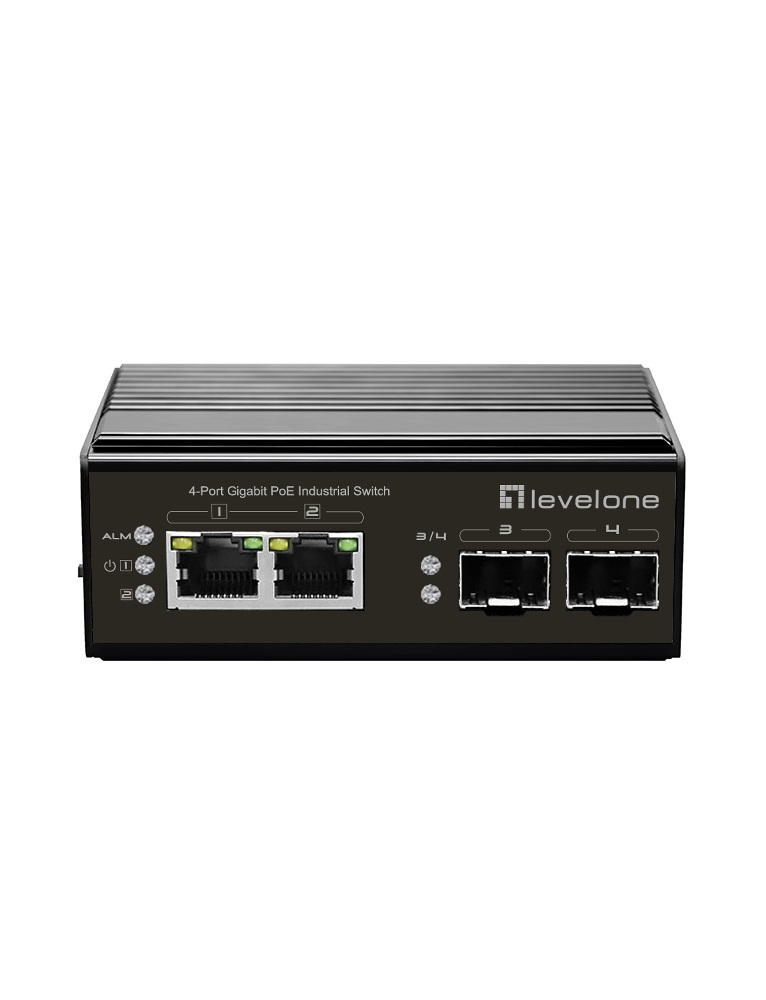

IGP-0432 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model IGP-0432EAN 4015867223956
40 specifications
- Weight300 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity2
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 300 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 2
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGP-0432
- Part number
- IGP-0432
- EAN / UPC
- 4015867223956, 4015867228180
- Also known as
- LevelOne IGP-0432 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
40 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Ethernet LAN data rates | 1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 8 Gbit/s |
| Packet buffer memory | 5.95 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Activity, Alarm |
Performance
| Specification | Value |
|---|---|
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| DC input voltage | 48 - 57 V |
| Power consumption (typical) | 5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 35 mm |
| Height | 101 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 110 mm |
| Package depth | 62 mm |
| Package height | 130 mm |
| Package weight | 350 g |
Technical details
| Specification | Value |
|---|---|
| Pallet net height | 152.5 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
