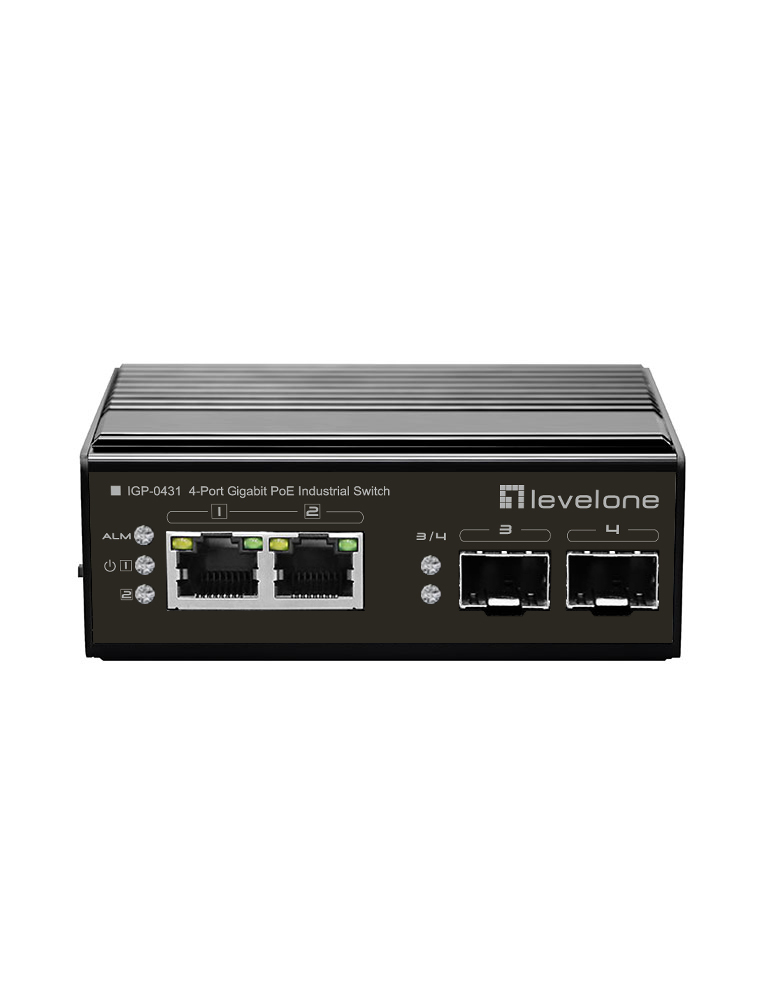

IGP-0431 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Model IGP-0431EAN 846359053997
38 specifications
- Weight300 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity2
- MAC address table8000 entries
- Rack mountingNo
- Power over Ethernet (PoE)Yes
Overview
- Weight
- 300 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 2
- MAC address table
- 8000 entries
- Rack mounting
- No
- Power over Ethernet (PoE)
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGP-0431
- Part number
- IGP-0431
- EAN / UPC
- 846359053997
- Also known as
- LevelOne IGP-0431 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Specifications
38 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Packet buffer memory | 5.95 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| DIN rail mounting | Yes |

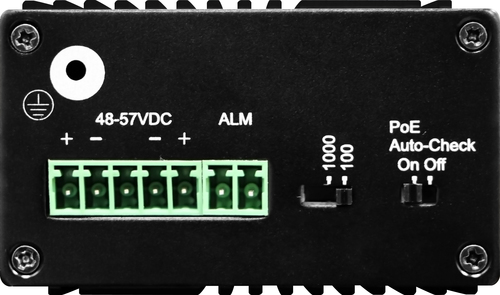

Power
| Specification | Value |
|---|---|
| Power supply included | No |
| DC input voltage | 48 - 57 V |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet (PoE) power per port | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 35 mm |
| Height | 101 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 110 mm |
| Package depth | 62 mm |
| Package height | 130 mm |
| Package weight | 350 g |
Technical details
| Specification | Value |
|---|---|
| Pallet net height | 152.5 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
