LevelOne 4-Port Gigabit PoE Industrial Switch, 2 PoE Outputs, 1 x Gigabit SFP, 1 x Gigabit RJ45
65W
Model IGP-0401EAN 4015867203897
48 specifications
- Weight520 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity3
- 10G supportNo
- MAC address table8000 entries
- Plug and PlayYes
Overview
- Weight
- 520 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 3
- 10G support
- No
- MAC address table
- 8000 entries
- Plug and Play
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IGP-0401
- Part number
- IGP-0401
- EAN / UPC
- 4015867203897
- Also known as
- LevelOne 4-Port Gigabit PoE Industrial Switch, 2 PoE Outputs, 1 x Gigabit SFP, 1 x Gigabit RJ45, 65W
Specifications
48 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 3 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 8 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Link, Power |

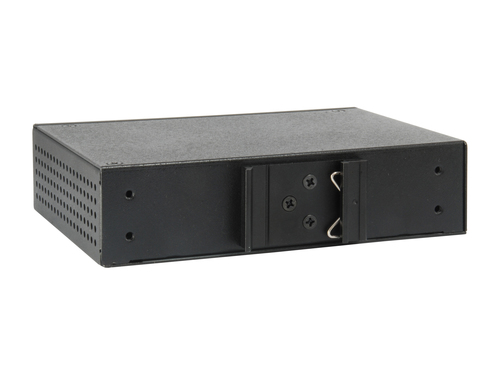

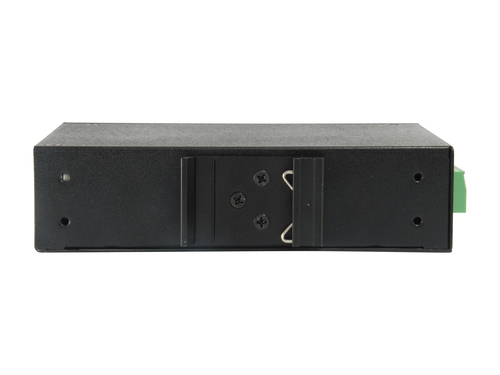

| DIN rail mounting | Yes |
| Safety | IEC EN60950-1 |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 500000 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 48 - 56 V |
| Power consumption (typical) | 4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36 mm |
| Depth | 105 mm |
| Height | 142 mm |
| Weight | 520 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| DIN rail included | Yes |
| Package type | Box |
| Package width | 165 mm |
| Package depth | 65 mm |
| Package height | 215 mm |
| Package weight | 735 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI, FCC Part 15 Subpart B Class A, CE EN, 55022 Class A |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 240 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 560 mm |
| Master (outer) case gross weight | 12.8 kg |
| Products per master (outer) case | 16 pc(s) |
