LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km
126W, -40°C to 75°C
Model IFP-0504EAN 4015867192412
52 specifications
- Memory1 MB
- Weight470 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- Fiber typeMulti-mode
Overview
- Memory
- 1 MB
- Weight
- 470 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Fiber type
- Multi-mode
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IFP-0504
- Part number
- IFP-0504
- EAN / UPC
- 4015867192412
- Also known as
- LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km, 126W, -40°C to 75°C
Specifications
52 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Multi-mode |
| Transmission distance (max) | 2 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Housing material | Metal |
| LED indicators | Link, PoE, Power |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Safety | EN60950-1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1 MB |
Power
| Specification | Value |
|---|---|
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (typical) | 3.76 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 126 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 36 mm |
| Depth | 105 mm |
| Height | 142 mm |
| Weight | 470 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Package width | 65 mm |
| Package depth | 165 mm |
| Package height | 215 mm |
| Package weight | 180 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS, VCCI EN55022/24 EN55011 EN50121-3-2 EN60068-2-6 EN60068-2-27 EN60068-2-32 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
What people say
Reviews & ratings
LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km
No reviews yet
Be the first to tell others how LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km
All network switch comparisons- LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km vsLevelOne 26-Port L2 Managed Gigabit Fiber SwitchCompare specs
- LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km vsLevelOne 28-Port L3 Managed Gigabit Ethernet Switch, 4 Ports SFP+ 10-GigabitCompare specs
- LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km vsLevelOne IES-1082 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) BlackCompare specs

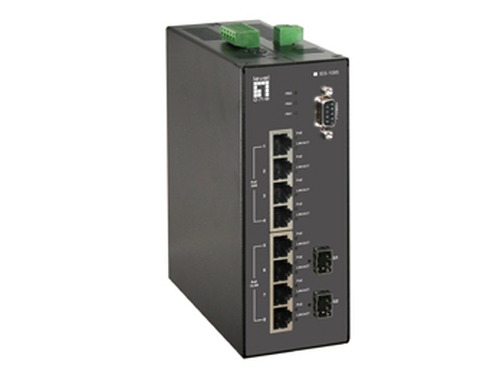

- LevelOne 5-Port Fast Ethernet PoE Industrial Switch, 4 PoE Outputs, 802.3at/af PoE, 1 x ST Multi-Mode Fiber, 2km vsLevelOne 10-Port L2 Managed Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, DIN-Rail, 2 x Gigabit SFP, 8 PoE OutputsCompare specs
