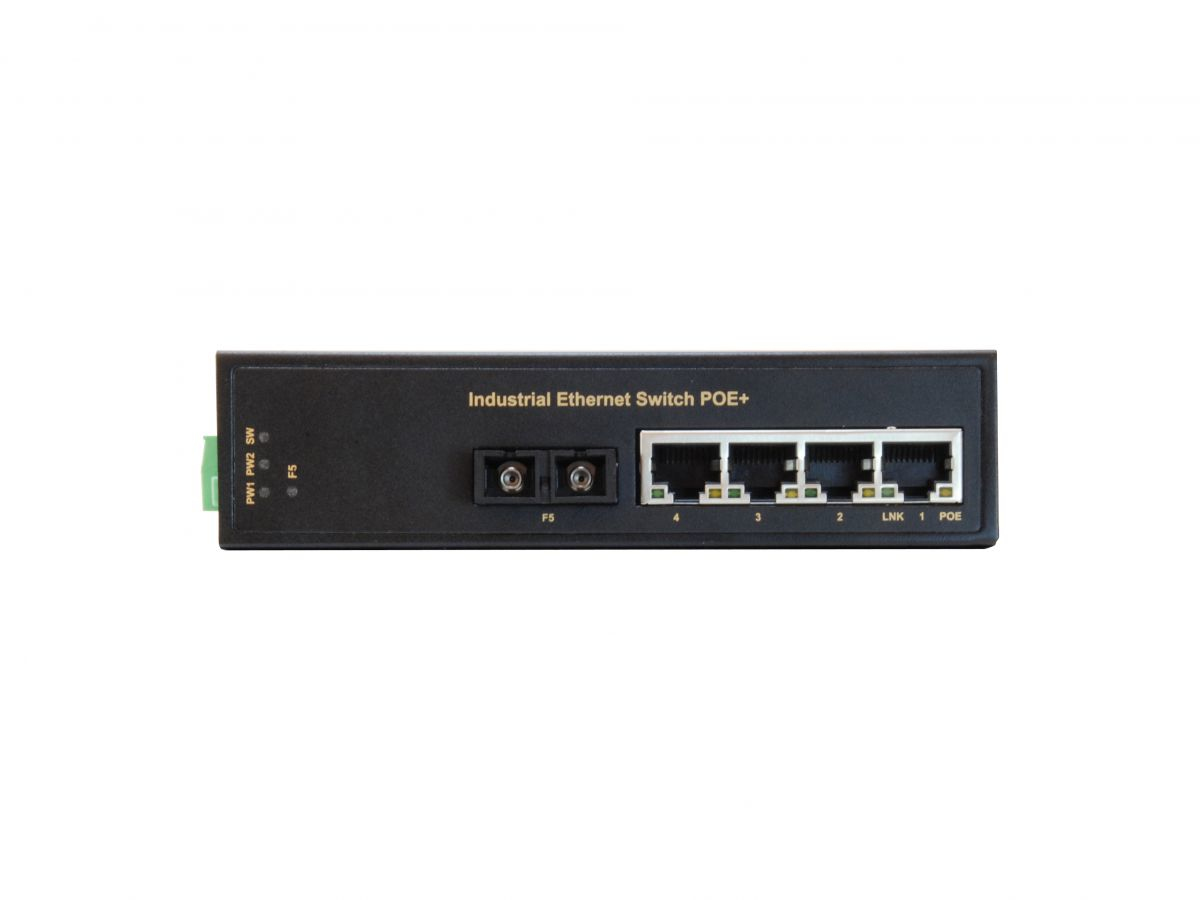

LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C
Model IFP-0503EAN 846359036044
62 specifications
- Memory1 MB
- Weight500 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
Overview
- Memory
- 1 MB
- Weight
- 500 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IFP-0503
- Part number
- IFP-0503
- EAN / UPC
- 846359036044, 4015867192405, 4015867228067
- Also known as
- LevelOne 5-Port Fast Ethernet Industrial Switch, DIN-Rail, -40°C to 75°C
Specifications
62 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Single-mode |
| Transmission distance (max) | 30 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Switching capacity | 1 Gbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1 MB |
| Flash memory | 1 MB |
| Mean time between failures (MTBF) | 150000 h |
Power
| Specification | Value |
|---|---|
| Power source | DC/PoE |
| Power supply included | Yes |
| Input voltage | 0 - 56 V |
| Power consumption (typical) | 3.76 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 126 W |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 50 mm |
| Height | 165 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| DIN rail included | Yes |
| Package type | Gift box |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
| Package width | 120 mm |
| Package depth | 60 mm |
| Package height | 185 mm |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Technical details
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (sea) | 12 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 162 cm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 380 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 320 mm |
| Master (outer) case gross weight | 8 kg |
| Products per master (outer) case | 15 pc(s) |
