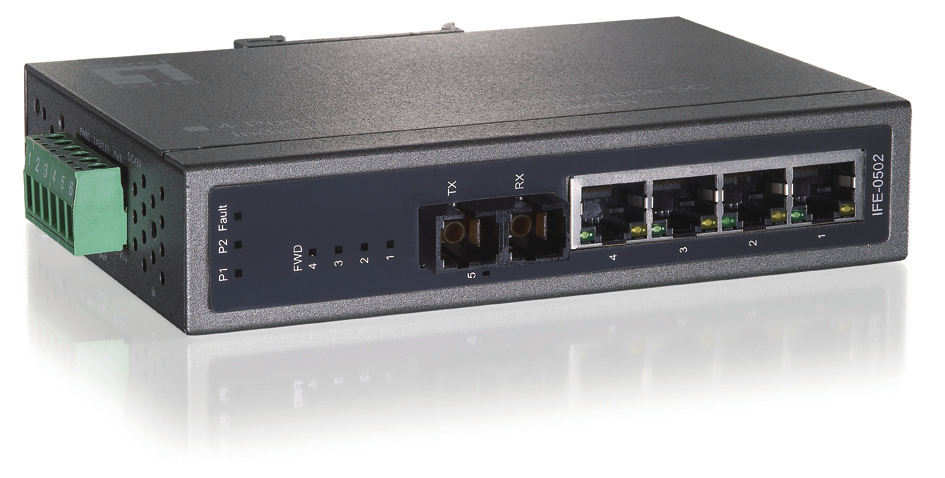

LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km
Model IFE-0502EAN 151902962948
49 specifications
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- Fiber typeSingle-mode
- MAC address table1024 entries
- Switching protocolsCSMA/CD
Overview
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Fiber type
- Single-mode
- MAC address table
- 1024 entries
- Switching protocols
- CSMA/CD
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IFE-0502
- Part number
- IFE-0502
- EAN / UPC
- 151902962948, 878742003616, 4015867140321, 8787420036162
- Also known as
- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km
Specifications
49 specifications in 16 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5, Cat5e |
| Auto MDI/MDI-X | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber type | Single-mode |
| RX sensitivity | -32 dB |
| Transmission distance (max) | 30 km |
| Wavelength | 1310 nm |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1 Gbit/s |
| Throughput | 1.488 Mpps |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Collision, Link, PoE, Power, Power fail |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Maximum cable length | 100 m |
Power
| Specification | Value |
|---|---|
| Output voltage | 48 V |
| Power consumption (typical) | 3.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 57 W |
Other features
| Specification | Value |
|---|---|
| Terminal block port | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 95 mm |
| Height | 140 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Resource CD | Yes |
| Terminal block included | Yes |
| Wall mounting kit | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A CE EN61000-4-2/3/4/5/6/8/11/12 CE EN61000-6-2 CE EN61000-6-4 UL cUL CE/EN60950-1 IEC60068-2-32 IEC60068-2-27 IEC60068-2-6 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
What people say
Reviews & ratings
LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km
No reviews yet
Be the first to tell others how LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km
All network switch comparisons- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsLevelOne 5-Port Fast Ethernet PoE PD SwitchCompare specs

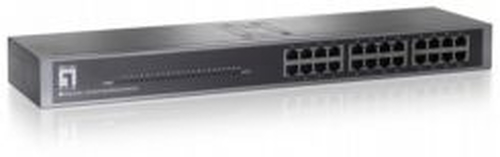

- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsLevelOne 16-Port Gigabit SwitchCompare specs
- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsLevelOne 24-Port Fast Ethernet SwitchCompare specs

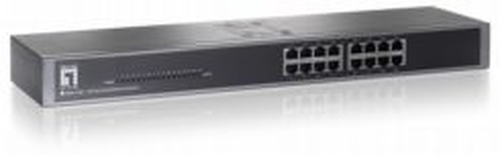

- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsLevelOne 16-Port Fast Ethernet SwitchCompare specs
- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsZyxel PLA-400 v2 KIT 2 x Powerline Adapter fuer HomePlug AV 200MbpsCompare specs
- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsD-Link DGS-3200-10 network switch ManagedCompare specs

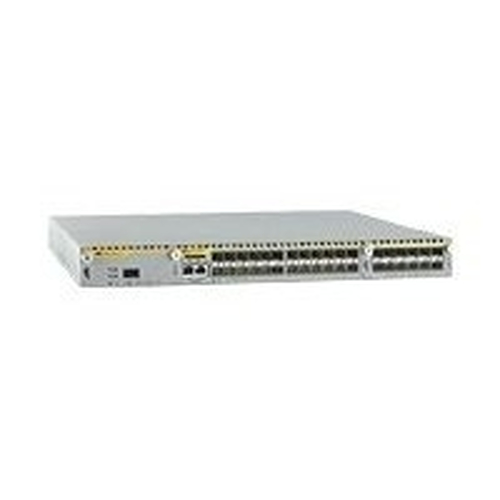

- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsAllied Telesis 24xSFP Bays Gigabit Ethernet SwitchCompare specs

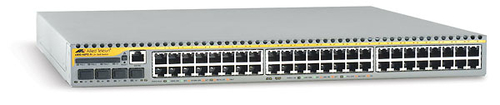

- LevelOne 5-Port Industrial Fast Ethernet PoE Switch, 4 PoE Outputs, 802.3af PoE, 1 Port SC Single-Mode Fiber, 30km vsAllied Telesis 10/100TX x 48 ports managed FE L3 Switch w/ 4x SFP expansion baysCompare specs
