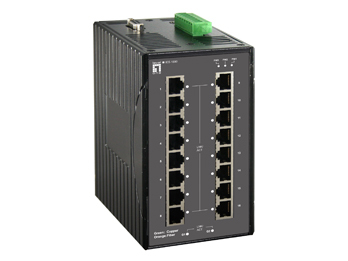

LevelOne 18-Port Industrial L2 Managed Fast Ethernet Switch, DIN-Rail, 2 Ports Gigabit SFP/RJ45 Combo

LevelOne 18-Port Industrial L2 Managed Fast Ethernet Switch, DIN-Rail, 2 Ports Gigabit SFP/RJ45 Combo

Model IES-1890EAN 4015867181300

43 specifications
  • Weight1.4 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity16
  • 10G supportNo
  • MAC address table8192 entries
See all specifications

Overview

Weight
1.4 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
16
10G support
No
MAC address table
8192 entries
Brand
LevelOne
Model
IES-1890
Part number
IES-1890
EAN / UPC
4015867181300
Also known as
LevelOne 18-Port Industrial L2 Managed Fast Ethernet Switch, DIN-Rail, 2 Ports Gigabit SFP/RJ45 Combo

Specifications

43 specifications in 12 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity16
Gigabit Ethernet (copper) ports quantity2
Console portRS-232

Network

Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Rate limitingYes
VLAN supportYes

Data transmission

MAC address table8192 entries
Store-and-forwardYes
Number of queues4

Security

DHCP featuresDHCP server, DHCP client
IGMP snoopingYes
MAC address filteringYes
Security algorithms802.1x RADIUS

Multicast features

Multicast supportYes

Protocols

Management protocolsTelnet, SNMP V1/V2c/V3, RMON, TFTP

Design

Rack mountingNo
Product colourBlack
Housing materialAluminium
LED indicatorsYes
International Protection (IP) codeIP30
SafetyFCC Part 15 Class A, EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3

Power

Input voltage12 - 48 V
Power consumption (typical)15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-45 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width84 mm
Depth125 mm
Height145 mm
Weight1.4 kg
