LevelOne 18-Port Industrial L2 Managed Fast Ethernet PoE Switch, 802.3at PoE+, 2 Ports Gigabit SFP/RJ45 Combo, -40°C to 75°C, 16 PoE Outputs

Model IES-1881EAN 4015867181461

61 specifications

Type1U
Weight3.5 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity16
Port mirroringYes

See all specifications

Overview

Type: 1U
Weight: 3.5 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 16
Port mirroring: Yes

Brand: LevelOne
Category: Network Switch
Model: IES-1881
Part number: IES-1881
EAN / UPC: 4015867181461
Also known as: LevelOne 18-Port Industrial L2 Managed Fast Ethernet PoE Switch, 802.3at PoE+, 2 Ports Gigabit SFP/RJ45 Combo, -40°C to 75°C, 16 PoE Outputs

Specifications

61 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	16
Gigabit Ethernet (copper) ports quantity	2
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2
Console port	RS-232

Network

Specification	Value
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Flow control support	Yes
Rate limiting	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	8192 entries
Store-and-forward	Yes
Packet forwarding rate (1 Gbps)	1488100 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148810 pps
Packet buffer memory	2 MB

Security

Specification	Value
IGMP snooping	Yes
MAC address filtering	Yes
Static port security	Yes

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Form factor	1U
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power, Speed
International Protection (IP) code	IP30
Safety	UL508

Power

Specification	Value
Input voltage	47 - 55 V
Power consumption (max)	12 W
Power protection features	Overload, Reverse polarity

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	480 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%

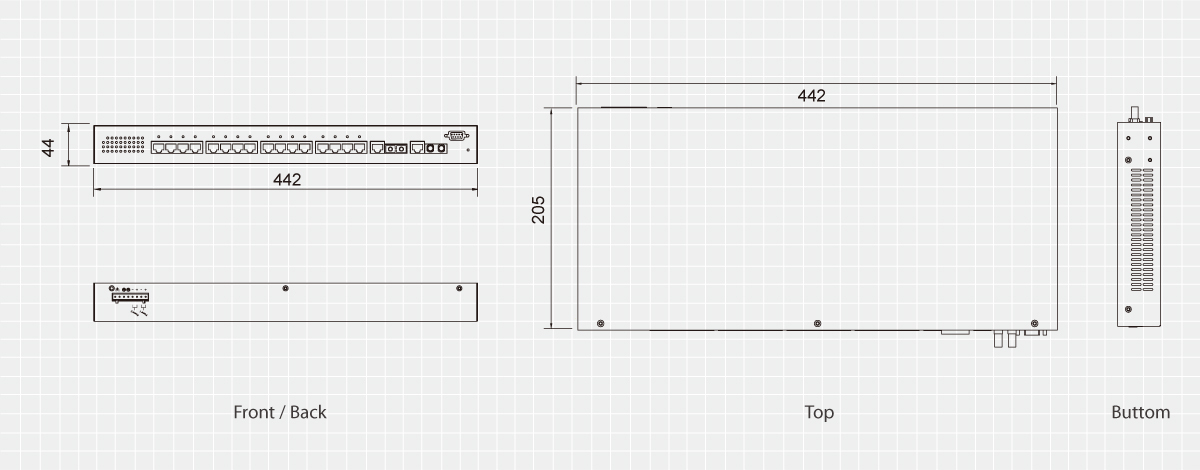

Weight & dimensions

Specification	Value
Width	442 mm
Depth	205 mm
Height	44 mm
Weight	3.5 kg

Packaging content

Specification	Value
Quick start guide	Yes

Packaging data

Specification	Value
Package type	Box
Resource CD	Yes
Package width	395 mm
Package depth	101 mm
Package height	563 mm
Package weight	4.6 kg

Certificates

Specification	Value
Certification	ISO9001 FCC Part 15, Class A EN61000-6-4 EN55022 EN61000-3-2 EN61000-6-2 EN61000-3-3 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-8 EN61000-4-6 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed

Logistics data

Specification	Value
Country of origin	Taiwan
