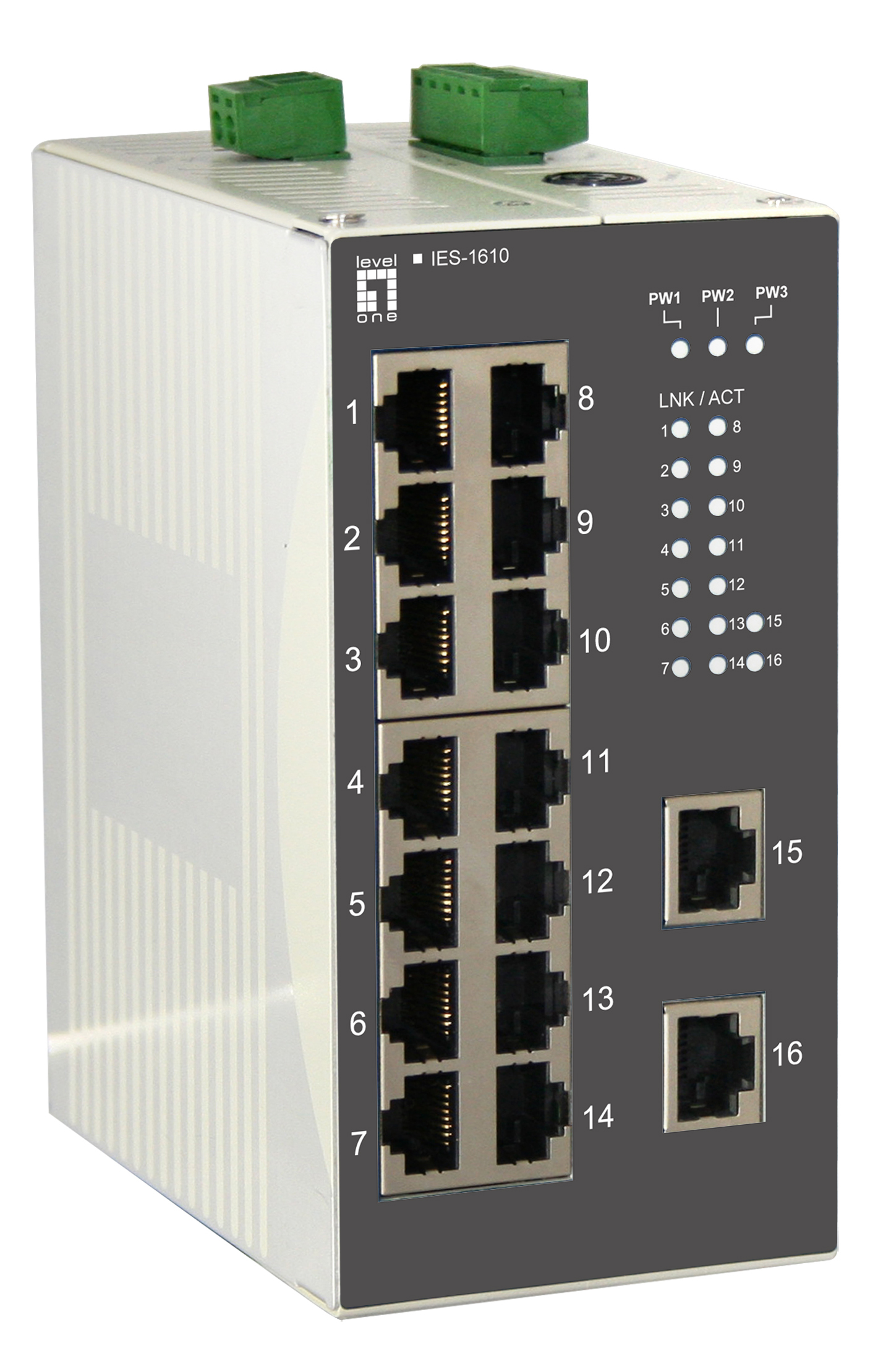

LevelOne 16-Port Fast Ethernet Industrial Switch, DIN-Rail, -20°C to 70°C

LevelOne 16-Port Fast Ethernet Industrial Switch, DIN-Rail, -20°C to 70°C

Model IES-1610EAN 4015867181508

46 specifications
  • Weight870 g
  • ColourBeige, Grey
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity16
  • 10G supportNo
  • MAC address table4096 entries
See all specifications

Overview

Weight
870 g
Colour
Beige, Grey
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
16
10G support
No
MAC address table
4096 entries
Brand
LevelOne
Model
IES-1610
Part number
IES-1610
EAN / UPC
4015867181508
Also known as
LevelOne 16-Port Fast Ethernet Industrial Switch, DIN-Rail, -20°C to 70°C

Specifications

46 specifications in 14 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table4096 entries
Store-and-forwardYes
Latency (10-100 Mbps)10 µs
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps
Packet buffer memory1.625 MB

Design

Rack mountingYes
Product colourBeige, Grey
Housing materialMetal
LED indicatorsActivity, Link, Power
DIN rail mountingYes
International Protection (IP) codeIP30
SafetyUL508

Performance

Mean time between failures (MTBF)636573.323 h

Power

Input voltage12 - 48 V
Power consumption (max)7.4 W
Power protection featuresOverload, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

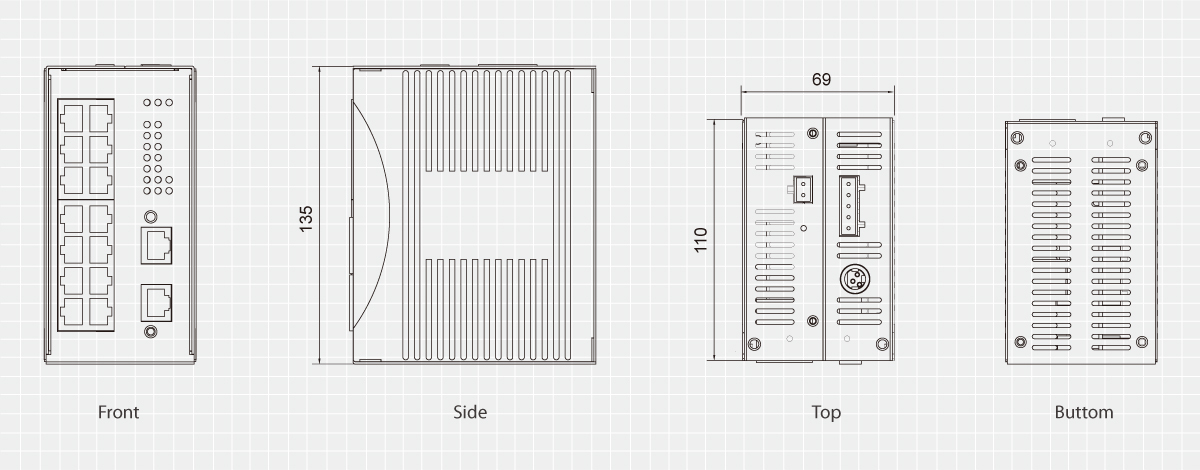

Weight & dimensions

Width69 mm
Depth110 mm
Height135 mm
Weight870 g

Packaging content

Quick start guideYes

Packaging data

Package typeBox
Resource CDYes
Package width198 mm
Package depth92 mm
Package height236 mm
Package weight1.15 kg

Certificates

CertificationISO9001 FCC Part 15, Class A, VCCI EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed

Logistics data

Country of originTaiwan
