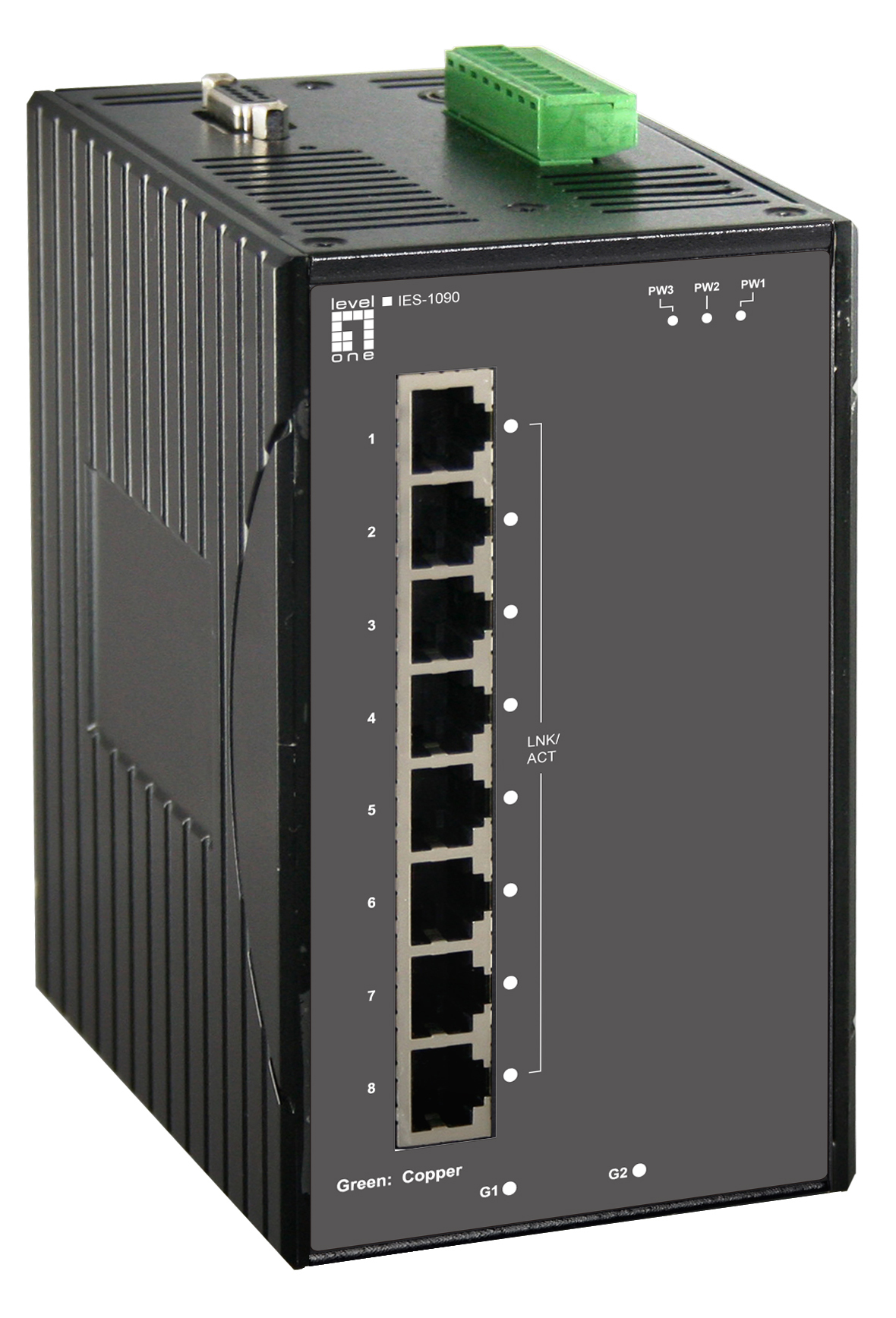

LevelOne 10-Port Industrial L2 Managed Fast Ethernet Switch, DIN-Rail, 2 Ports Gigabit SFP/RJ45 Combo

LevelOne 10-Port Industrial L2 Managed Fast Ethernet Switch, DIN-Rail, 2 Ports Gigabit SFP/RJ45 Combo

Model IES-1090EAN 4015867181331

49 specifications
  • Weight1.4 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • MAC address table8192 entries
See all specifications

Overview

Weight
1.4 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
MAC address table
8192 entries
Brand
LevelOne
Model
IES-1090
Part number
IES-1090
EAN / UPC
4015867181331
Also known as
LevelOne 10-Port Industrial L2 Managed Fast Ethernet Switch, DIN-Rail, 2 Ports Gigabit SFP/RJ45 Combo

Specifications

49 specifications in 15 groups

Management features

Switch typeManaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Fiber optic connectorSFP
Console portRS-232
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes

Optical fiber

Fiber ethernet cabling technology100BASE-FX, 1000BASE‑LX, 1000BASE‑SX

Data transmission

MAC address table8192 entries
Store-and-forwardYes
Packet forwarding rate (1 Gbps)1488100 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps

Design

Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsActivity, Link, Power
International Protection (IP) codeIP30
Wall mountableYes

Performance

Buffer size2048 KB
Mean time between failures (MTBF)313082.4 h

Power

Output voltage24 V
Output current0.625 A
Power consumption (max)15 W
Power protection featuresOverload, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-45 - 85 °C
Operating relative humidity (H-H)5 - 95%

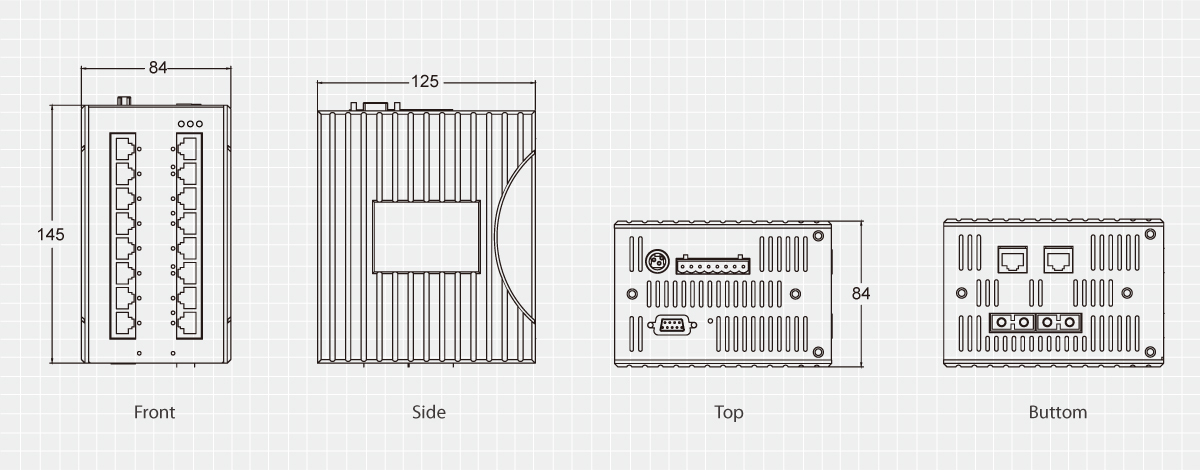

Weight & dimensions

Width84 mm
Depth125 mm
Height145 mm
Weight1.4 kg

Packaging content

Quick start guideYes
ManualYes

Packaging data

Package typeBox
Package width225 mm
Package depth116 mm
Package height260 mm
Package weight1.8 kg

Certificates

CertificationISO9001, FCC Part 15, Class A, EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC61000-4-10, IEC61000-4-16, IEC61000-4-18, IEEE1613, IEC60068-2-6, IEC60068-2-27, IEC60068-2-32

Logistics data

Country of originTaiwan
