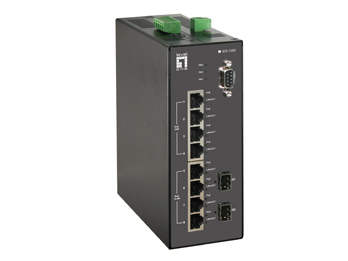

LevelOne 10-Port L2 Managed Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, DIN-Rail, 2 x Gigabit SFP, 8 PoE Outputs
181.6W, -40°C to 85°C
Model IES-1085EAN 4015867181393
49 specifications
- Weight1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8192 entries
Overview
- Weight
- 1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IES-1085
- Part number
- IES-1085
- EAN / UPC
- 4015867181393
- Also known as
- LevelOne 10-Port L2 Managed Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, DIN-Rail, 2 x Gigabit SFP, 8 PoE Outputs, 181.6W, -40°C to 85°C
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Number of queues | 4 |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMP V1/V2c/V3, RMON, TFTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Safety | UL508 |
| Electromagnetic compatibility | FCC Part 15 Class A, EN61000-6-4 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Input voltage | 47 - 57 V |
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 181.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 145 mm |
| Height | 165 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | EN61000-6-2 |
