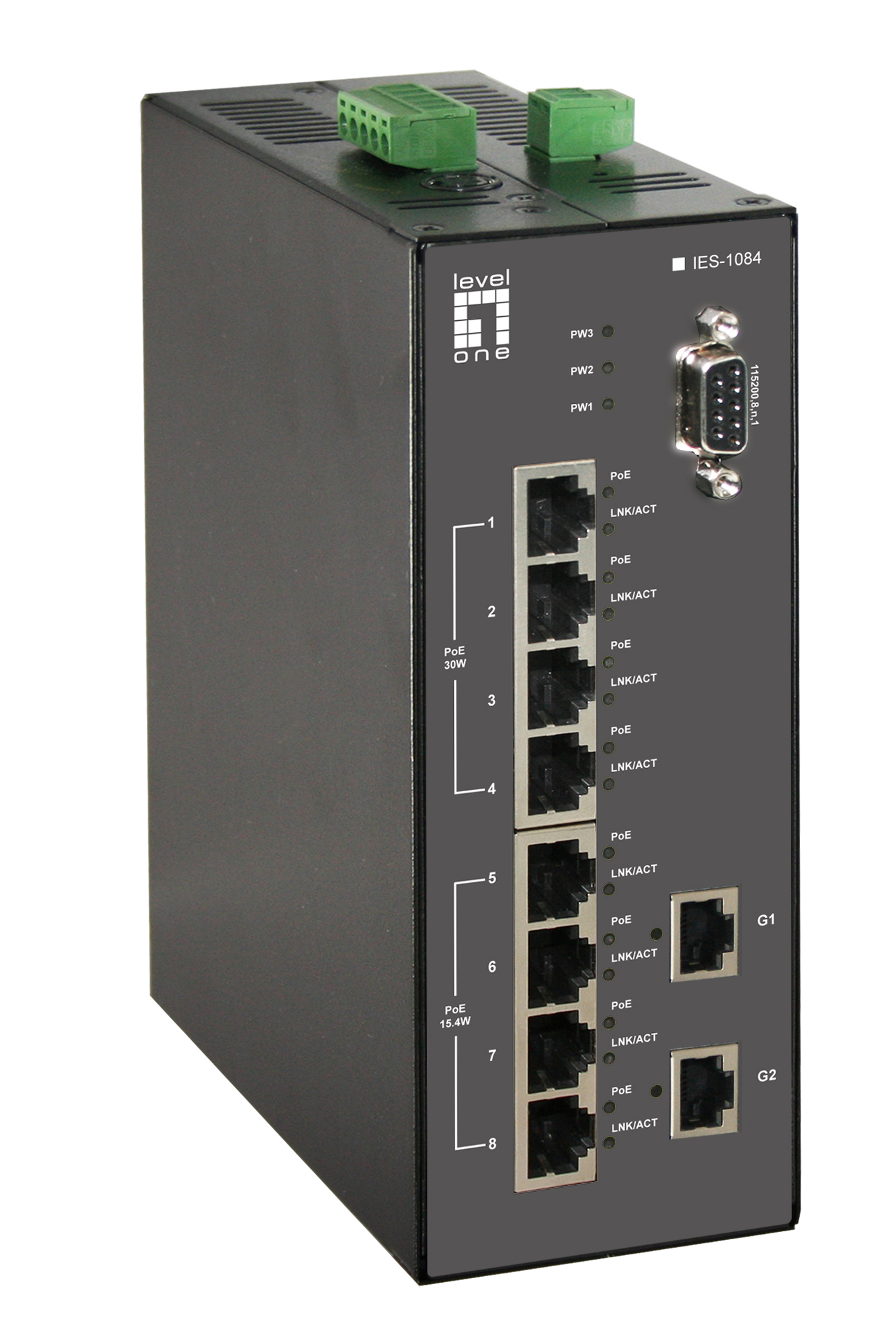

LevelOne 10-Port L2 Managed Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, DIN-Rail, 2 x Gigabit RJ45, 8 PoE Outputs
181.6W, -40°C to 85°C
Model IES-1084EAN 4015867181386
58 specifications
- Weight1 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity10
- 10G supportNo
- MAC address table8192 entries
Overview
- Weight
- 1 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 10
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IES-1084
- Part number
- IES-1084
- EAN / UPC
- 4015867181386
- Also known as
- LevelOne 10-Port L2 Managed Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, DIN-Rail, 2 x Gigabit RJ45, 8 PoE Outputs, 181.6W, -40°C to 85°C
Specifications
58 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488100 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
| Packet buffer memory | 2 MB |
Security
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Activity, Link, Power |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Safety | UL508 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 328630.321 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 47 - 57 V |
| Power consumption (max) | 15 W |
| Power protection features | Overload, Reverse polarity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 181.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

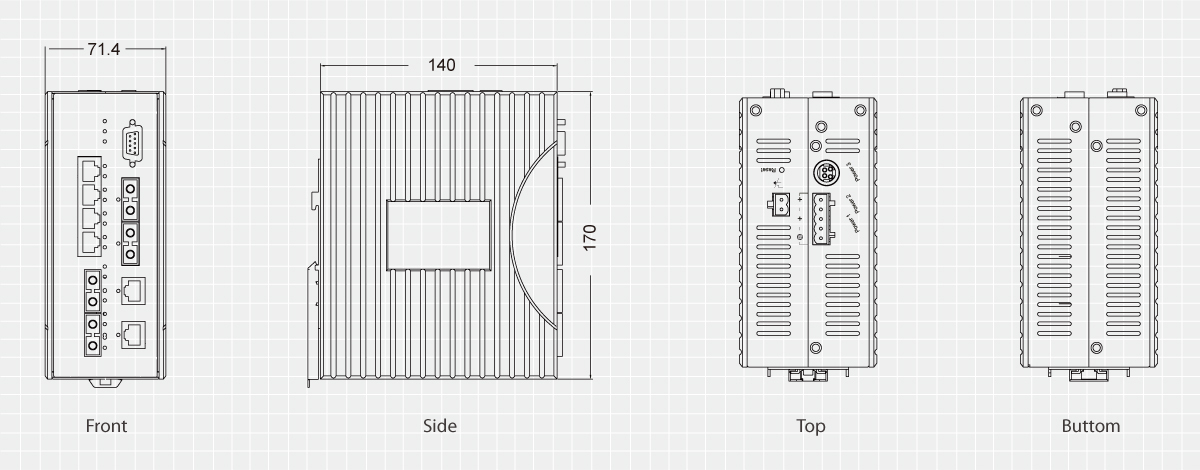

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 65 mm |
| Depth | 145 mm |
| Height | 165 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Package width | 238 mm |
| Package depth | 100 mm |
| Package height | 296 mm |
| Package weight | 2.15 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | ISO9001 FCC Part 15, Class A EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
