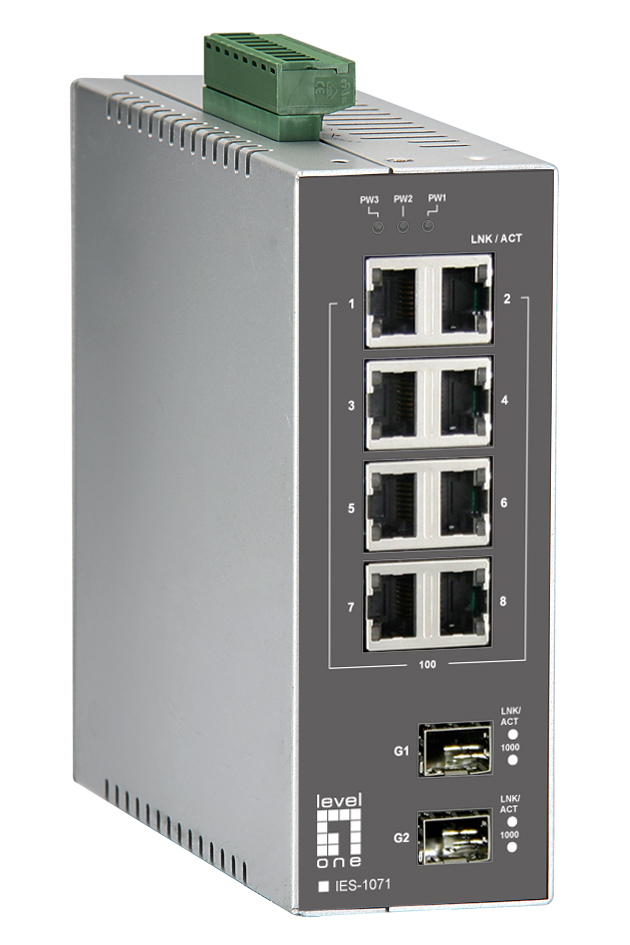

LevelOne 10-Port L2 Managed Fast Ethernet Industrial Switch, DIN-Rail, 2 x Gigabit SFP, -20°C to 70°C

LevelOne 10-Port L2 Managed Fast Ethernet Industrial Switch, DIN-Rail, 2 x Gigabit SFP, -20°C to 70°C

Model IES-1071EAN 4015867181416

53 specifications
  • Weight1.1 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • Fiber ethernet cabling technology100BASE-FX
See all specifications

Overview

Weight
1.1 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
Fiber ethernet cabling technology
100BASE-FX
Brand
LevelOne
Model
IES-1071
Part number
IES-1071
EAN / UPC
4015867181416
Also known as
LevelOne 10-Port L2 Managed Fast Ethernet Industrial Switch, DIN-Rail, 2 x Gigabit SFP, -20°C to 70°C

Specifications

53 specifications in 17 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
SFP module slots quantity2
Fiber optic connectorSFP
Console portRS-232
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes

Optical fiber

Fiber ethernet cabling technology100BASE-FX

Data transmission

MAC address table8192 entries
Store-and-forwardYes
Packet forwarding rate (1 Gbps)1488100 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps

Security

DHCP featuresDHCP server, DHCP client

Multicast features

Multicast supportYes

Design

Rack mountingYes
StackableNo
Product colourBlack
Housing materialMetal
LED indicatorsActivity, Link, Power, Speed
International Protection (IP) codeIP30
Wall mountableYes

Performance

Buffer size2048 KB
Mean time between failures (MTBF)1973365.2 h

Power

Output voltage24 V
Output current0.46 A
Power consumption (max)11 W
Power protection featuresOverload, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

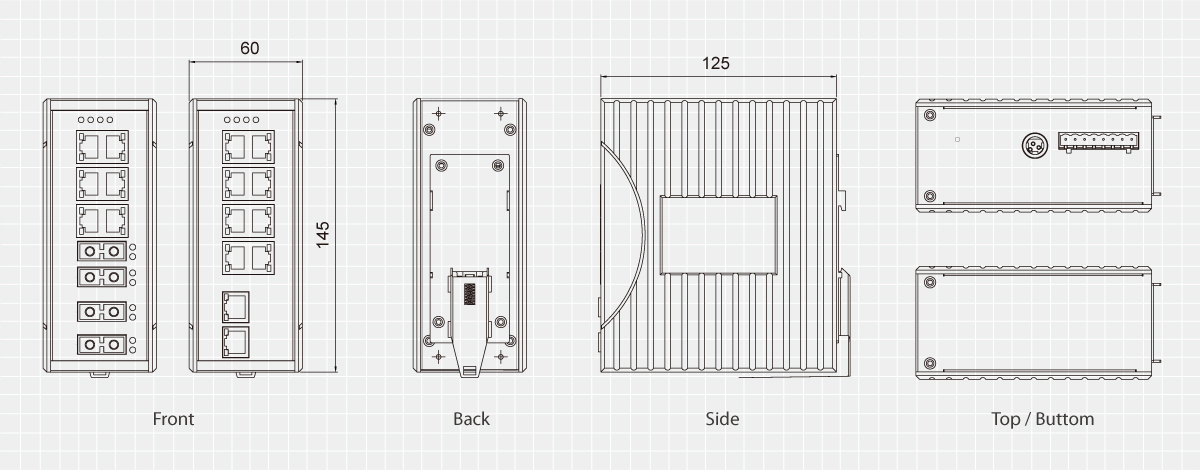

Weight & dimensions

Width60 mm
Depth125 mm
Height145 mm
Weight1.1 kg

Packaging content

Quick start guideYes
ManualYes

Packaging data

Package typeBox
Package width238 mm
Package depth100 mm
Package height296 mm
Package weight1.6 kg

Certificates

CertificationISO9001, FCC Part 15, Class A, EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60068-2-6, IEC60068-2-27,

Logistics data

Country of originTaiwan
