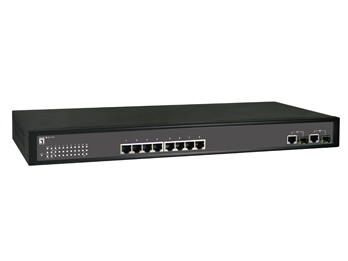

LevelOne 10-Port Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, 2 x Gigabit SFP/RJ45 Combo, 8 PoE Outputs, -40°C to 75°C
240W
Model IES-1020EAN 846359021941
37 specifications
- Type1U
- Weight3 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 3 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IES-1020
- Part number
- IES-1020
- EAN / UPC
- 846359021941, 4015867182413
- Also known as
- LevelOne 10-Port Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, 2 x Gigabit SFP/RJ45 Combo, 8 PoE Outputs, -40°C to 75°C, 240W
Specifications
37 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Safety | UL508 |
| Electromagnetic compatibility | FCC Part 15 Class A, EN61000-6-4 |
Performance
| Specification | Value |
|---|---|
| Buffer size | 281 KB |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Input voltage | 47 - 57 V |
| Power consumption (typical) | 15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 205 mm |
| Height | 44.2 mm |
| Weight | 3 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | EN61000-6-2 |
