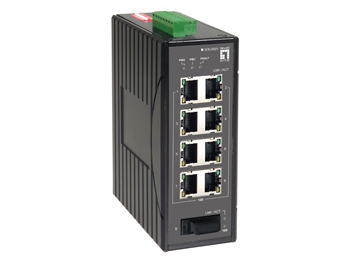

LevelOne 9-Port Industrial Fast Ethernet Switch, DIN-Rail, 1 Port SC Multi-Mode Fiber, -40°C to 75°C
Model IES-0920EAN 4015867181553
37 specifications
- Weight800 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- Fiber ethernet cabling technology100BASE-FX
Overview
- Weight
- 800 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- Fiber ethernet cabling technology
- 100BASE-FX
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IES-0920
- Part number
- IES-0920
- EAN / UPC
- 4015867181553
- Also known as
- LevelOne 9-Port Industrial Fast Ethernet Switch, DIN-Rail, 1 Port SC Multi-Mode Fiber, -40°C to 75°C
Specifications
37 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-FX |
| Fiber type | Multi-mode |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |
| Safety | UL508 |
| Electromagnetic compatibility | FCC Part 15 Class A, VCCI, EN61000-6-3 |
Performance
| Specification | Value |
|---|---|
| Buffer size | 96 KB |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 48 V |
| Power consumption (typical) | 6.3 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 110 mm |
| Height | 135 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | EN61000-6-2 |
