LevelOne 9-Port Industrial Fast Ethernet Switch, DIN-Rail, 1 Port SC Multi-Mode Fiber

LevelOne 9-Port Industrial Fast Ethernet Switch, DIN-Rail, 1 Port SC Multi-Mode Fiber

Model IES-0910EAN 4015867181584

47 specifications
  • Weight800 g
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • Fiber ethernet cabling technology100BASE-FX
See all specifications

Overview

Weight
800 g
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
Fiber ethernet cabling technology
100BASE-FX
Brand
LevelOne
Model
IES-0910
Part number
IES-0910
EAN / UPC
4015867181584
Also known as
LevelOne 9-Port Industrial Fast Ethernet Switch, DIN-Rail, 1 Port SC Multi-Mode Fiber

Specifications

47 specifications in 15 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Fiber ports quantity1
Fiber optic connectorSC
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes

Optical fiber

Fiber ethernet cabling technology100BASE-FX
Fiber typeMulti-mode

Data transmission

MAC address table2048 entries
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps

Design

Rack mountingYes
StackableNo
Product colourBlack
Housing materialAluminium
LED indicatorsActivity, LAN, Link, Power, Speed
International Protection (IP) codeIP30

Performance

Buffer size768 KB
Mean time between failures (MTBF)468397.2 h

Power

Output voltage24 V
Output current0.2 A
Power consumption (max)4.8 W
Power protection featuresReverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

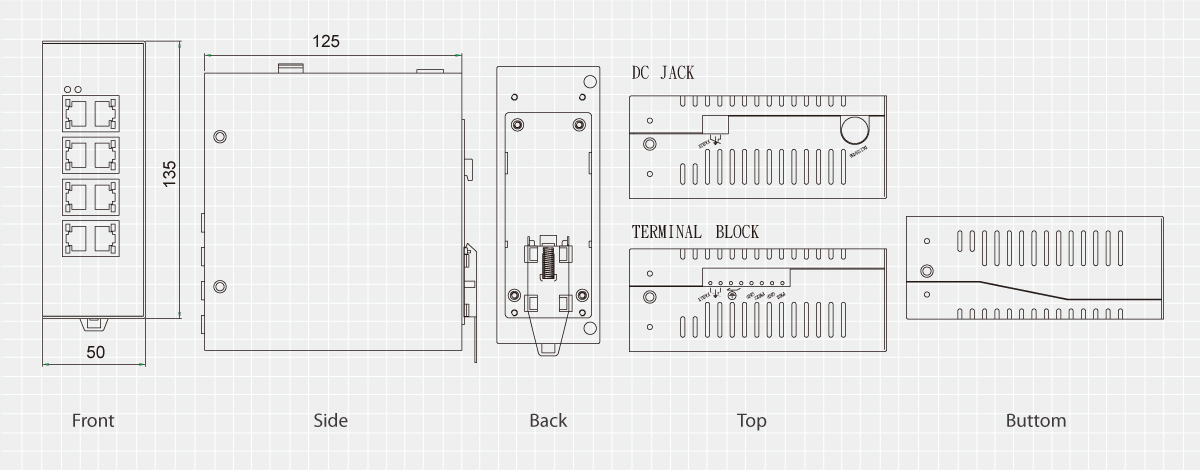

Weight & dimensions

Width50 mm
Depth125 mm
Height135 mm
Weight800 g

Packaging content

Quick start guideYes
ManualYes

Packaging data

Package width198 mm
Package depth92 mm
Package height236 mm

Certificates

CertificationISO9001, UL60950-1, FCC Part 15, Class A, EN61000-6-3, EN55022, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60068-2-6, IEC60068-2-27, IEC60068-2-32

Logistics data

Country of originTaiwan
