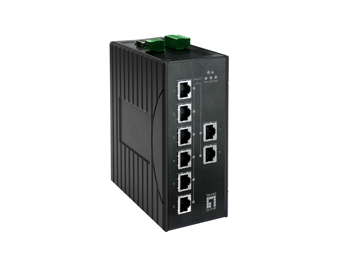

LevelOne 8-Port L2 Managed Gigabit Industrial Switch, DIN-Rail, -40°C to 75°C

LevelOne 8-Port L2 Managed Gigabit Industrial Switch, DIN-Rail, -40°C to 75°C

Model IES-0880EAN 4015867181423

45 specifications
  • Weight1.1 kg
  • ColourBlack
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • MAC address table4096 entries
See all specifications

Overview

Weight
1.1 kg
Colour
Black
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
MAC address table
4096 entries
Brand
LevelOne
Model
IES-0880
Part number
IES-0880
EAN / UPC
4015867181423
Also known as
LevelOne 8-Port L2 Managed Gigabit Industrial Switch, DIN-Rail, -40°C to 75°C

Specifications

45 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Installed SFP+ modules quantity0
Console portRS-232

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Full duplexYes
Auto MDI/MDI-XYes
Flow control supportYes
Rate limitingYes
Spanning tree protocolYes
VLAN supportYes

Data transmission

MAC address table4096 entries
Store-and-forwardYes
Number of queues4

Security

IGMP snoopingYes

Multicast features

Multicast supportYes

Protocols

Management protocolsTelnet, SNMP V1/V2c/V3, RMON, TFTP

Design

Rack mountingNo
Product colourBlack
Housing materialAluminium
LED indicatorsYes
International Protection (IP) codeIP30
SafetyUL508
Electromagnetic compatibilityFCC Part 15 Class A, EN61000-6-4

Performance

Buffer size125 KB

Power

Redundant power supply (RPS) supportYes
DC input voltage12 - 32 V
Power consumption (typical)22 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width66 mm
Depth125 mm
Height145 mm
Weight1.1 kg

Certificates

CertificationEN61000-6-2
