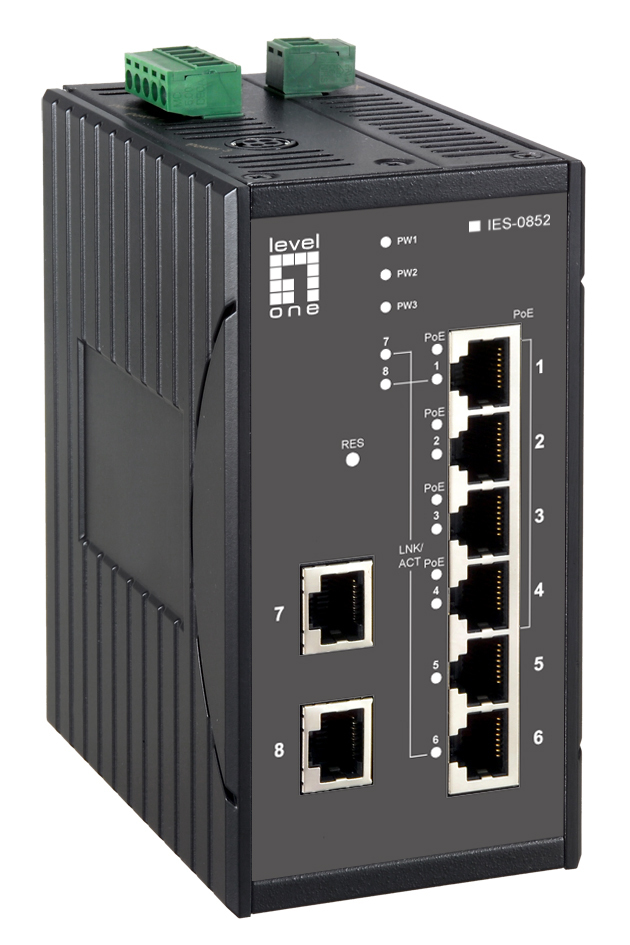

LevelOne 8-Port Web Smart Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, 4 PoE Outputs, DIN-Rail

LevelOne 8-Port Web Smart Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, 4 PoE Outputs, DIN-Rail

120W, -40°C to 85°C

Model IES-0852EAN 4015867181645

46 specifications
  • Weight1 kg
  • ColourBlack
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • Fiber ethernet cabling technology100BASE-FX
  • MAC address table1024 entries
See all specifications

Overview

Weight
1 kg
Colour
Black
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
Fiber ethernet cabling technology
100BASE-FX
MAC address table
1024 entries
Brand
LevelOne
Model
IES-0852
Part number
IES-0852
EAN / UPC
4015867181645
Also known as
LevelOne 8-Port Web Smart Fast Ethernet PoE Industrial Switch, 802.3at/af PoE, 4 PoE Outputs, DIN-Rail, 120W, -40°C to 85°C

Specifications

46 specifications in 14 groups

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX
Full duplexYes

Optical fiber

Fiber ethernet cabling technology100BASE-FX

Data transmission

MAC address table1024 entries
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps

Design

Rack mountingYes
StackableNo
Product colourBlack
Housing materialAluminium
LED indicatorsLAN, PoE, Power
International Protection (IP) codeIP20

Performance

Buffer size1024 KB
Mean time between failures (MTBF)228986.4 h

Power

Output voltage57 V
Power consumption (max)10 W
Power protection featuresOverload, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet (PoE) voltage range47 - 57 V
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget120 W

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

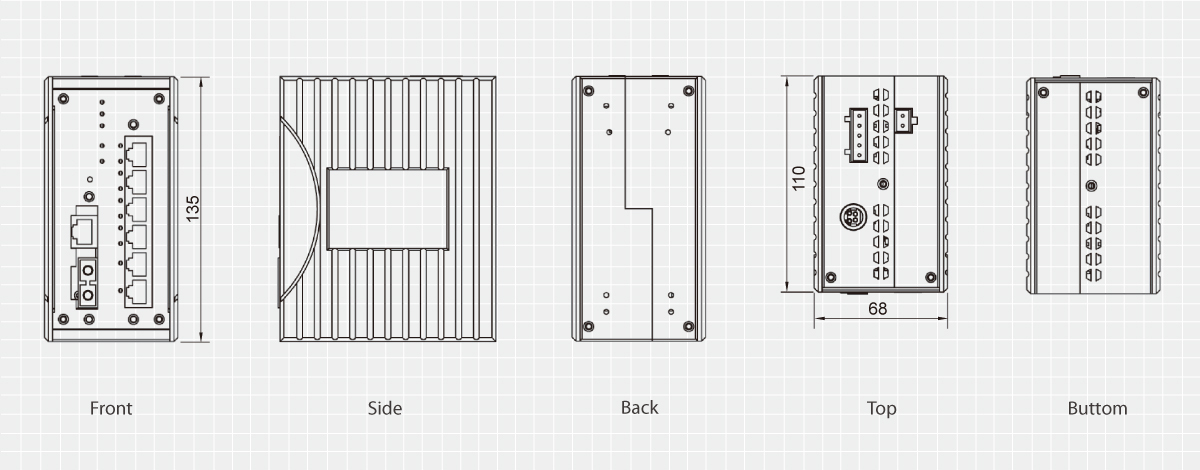

Weight & dimensions

Width68 mm
Depth110 mm
Height135 mm
Weight1 kg

Packaging content

Quick start guideYes
ManualYes

Packaging data

Package typeBox
Package width198 mm
Package depth92 mm
Package height236 mm
Package weight1.3 kg

Certificates

CertificationISO9001, UL508, FCC Part 15, Class A, EN61000-6-4, EN55022, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60068-2-6, IEC60068-2-27, IEC60068-2-32

Logistics data

Country of originTaiwan
