LevelOne 8-Port Fast Ethernet Industrial Switch, DIN-Rail, 2 x SC Multi-Mode Fiber, IEC61850, -40°C to 85°C

LevelOne 8-Port Fast Ethernet Industrial Switch, DIN-Rail, 2 x SC Multi-Mode Fiber, IEC61850, -40°C to 85°C

Model IES-0831EAN 4015867181539

44 specifications
  • Weight1 kg
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity6
  • 10G supportNo
  • Fiber typeMulti-mode
See all specifications

Overview

Weight
1 kg
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
6
10G support
No
Fiber type
Multi-mode
Brand
LevelOne
Model
IES-0831
Part number
IES-0831
EAN / UPC
4015867181539
Also known as
LevelOne 8-Port Fast Ethernet Industrial Switch, DIN-Rail, 2 x SC Multi-Mode Fiber, IEC61850, -40°C to 85°C

Specifications

44 specifications in 15 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Fiber ports quantity2
Fiber optic connectorSC

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Optical fiber

Fiber typeMulti-mode

Data transmission

MAC address table2048 entries
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps
Packet buffer memory0.448 MB

Design

Product colourBlack
Housing materialAluminium
DIN rail mountingYes
SafetyUL508

Performance

Mean time between failures (MTBF)340902.459 h

Power

Input voltage12 - 48 V
Power consumption (max)6 W
Power protection featuresOverload

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

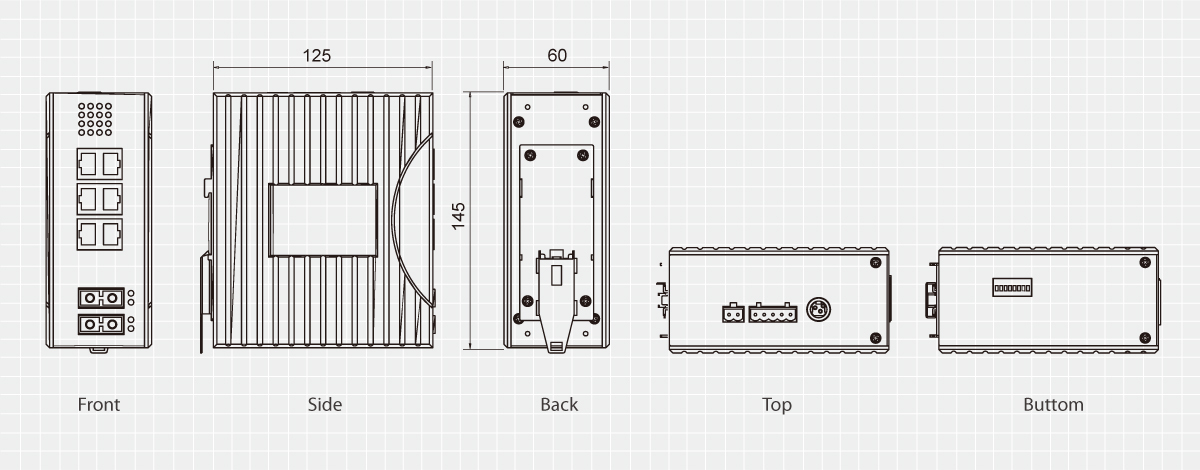

Weight & dimensions

Width60 mm
Depth125 mm
Height145 mm
Weight1 kg

Packaging content

Quick start guideYes

Packaging data

Resource CDYes
Package width238 mm
Package depth100 mm
Package height296 mm
Package weight1.2 kg

Certificates

CertificationISO9001 FCC Part 15, Class A EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC61000-4-10 IEC61000-4-16 IEC 61000-4-18 IEEE1613 IEC 60870-2-1 IEC60068-2-6 IEC60068-2-27 IEC60068-2-32 NEMA TS2

Logistics data

Country of originTaiwan
