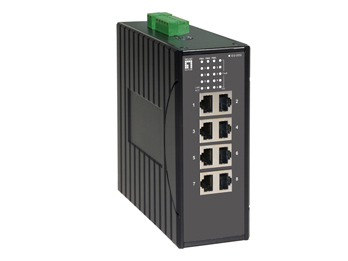

LevelOne 8-Port Fast Ethernet Industrial Switch, DIN-Rail, IEC61850, -40°C to 85°C
Model IES-0830EAN 4015867181522
35 specifications
- Weight1 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table2048 entries
Overview
- Weight
- 1 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 2048 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IES-0830
- Part number
- IES-0830
- EAN / UPC
- 4015867181522
- Also known as
- LevelOne 8-Port Fast Ethernet Industrial Switch, DIN-Rail, IEC61850, -40°C to 85°C
Specifications
35 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 8 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Safety | UL508 |
| Electromagnetic compatibility | FCC Part 15 Class A, EN61000-6-4 |
Performance
| Specification | Value |
|---|---|
| Buffer size | 56 KB |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 12 - 48 V |
| Power consumption (typical) | 6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 125 mm |
| Height | 145 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | EN61000-6-2 |
