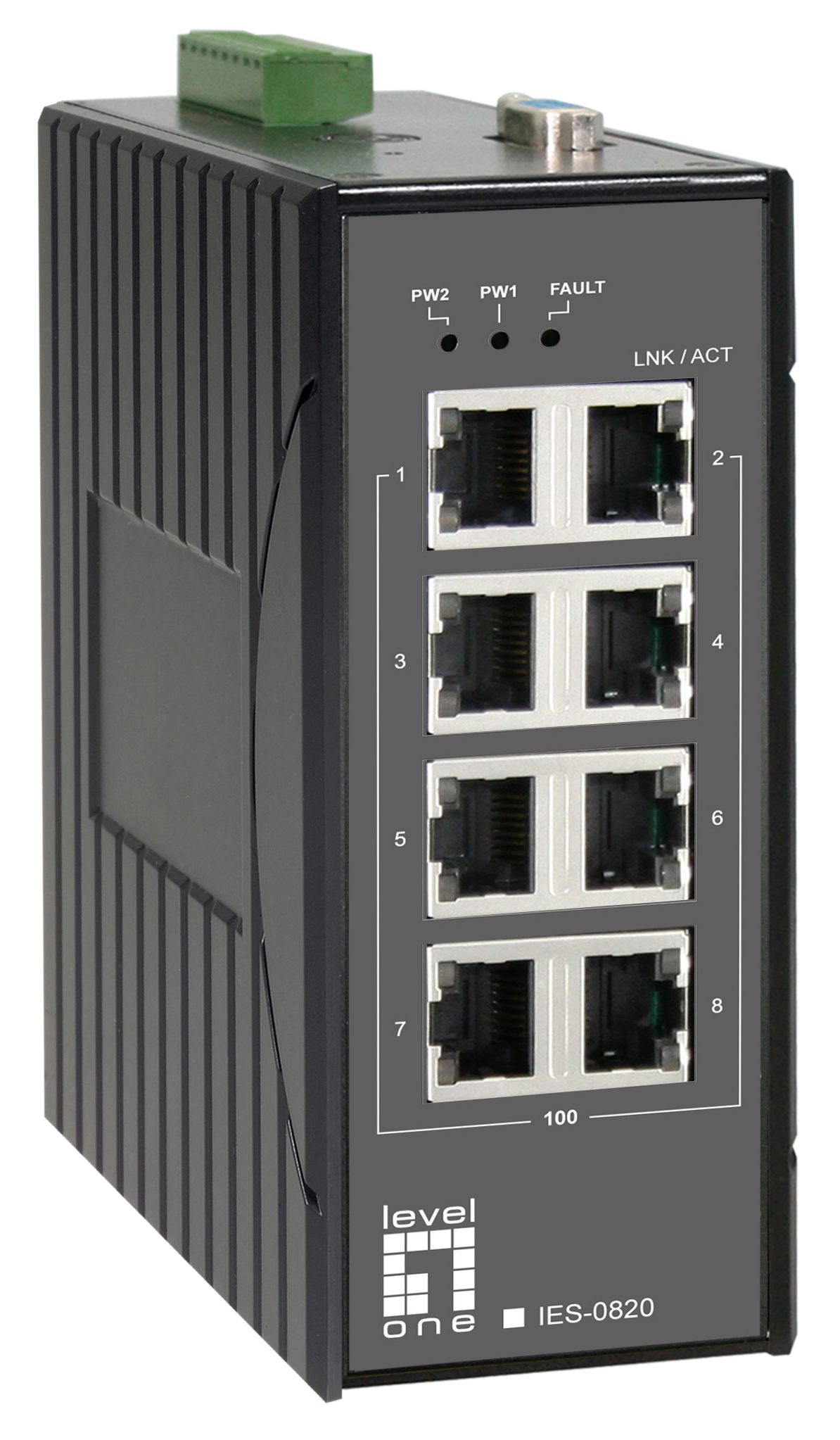

LevelOne 8-Port Fast Ethernet Industrial Switch, -40°C to 75°C

LevelOne 8-Port Fast Ethernet Industrial Switch, -40°C to 75°C

Model IES-0820EAN 4015867181546

48 specifications
  • Weight730 g
  • ColourBlack
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • MAC address table2048 entries
See all specifications

Overview

Weight
730 g
Colour
Black
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
MAC address table
2048 entries
Brand
LevelOne
Model
IES-0820
Part number
IES-0820
EAN / UPC
4015867181546
Also known as
LevelOne 8-Port Fast Ethernet Industrial Switch, -40°C to 75°C

Specifications

48 specifications in 14 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes

Data transmission

MAC address table2048 entries
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148810 pps

Design

Rack mountingNo
StackableNo
Product colourBlack
Housing materialAluminium
LED indicatorsActivity, Link, Power, Power fail, Speed
DIN rail mountingYes

Performance

Buffer size768 KB
Mean time between failures (MTBF)702114 h

Power

Input voltage12 - 48 V
Output voltage48 V
Output current0.13 A
Power consumption (max)6.3 W
Power protection featuresOverload, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width142 mm
Depth105 mm
Height36.2 mm
Weight730 g

Packaging content

Quick start guideYes
ManualYes

Packaging data

Package typeBox
Resource CDYes
Package width215 mm
Package depth165 mm
Package height65 mm
Package weight11.6 kg

Certificates

CertificationISO9001, UL508, FCC Part 15, Class A, VCCI, EN61000-6-3, EN55022, EN61000-3-2, EN61000-3-3, EN61000-6-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60068-2-6, IEC60068-2-27, IEC60068-2-32

Logistics data

Country of originTaiwan
Harmonized System (HS) code85176990
