LevelOne 8-Port Fast Ethernet PoE Industrial Switch, 802.3af PoE, 4 PoE Outputs, DIN-Rail
61.6W, -20°C to 70°C
Model IES-0811EAN 4015867181805
45 specifications
- Weight1 kg
- ColourBeige, Grey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table1024 entries
Overview
- Weight
- 1 kg
- Colour
- Beige, Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 1024 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- IES-0811
- Part number
- IES-0811
- EAN / UPC
- 4015867181805
- Also known as
- LevelOne 8-Port Fast Ethernet PoE Industrial Switch, 802.3af PoE, 4 PoE Outputs, DIN-Rail, 61.6W, -20°C to 70°C
Specifications
45 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148810 pps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Beige, Grey |
| Housing material | Aluminium |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Safety | UL508 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 271126.589 h |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 10 W |
| Power protection features | Overcharge, Reverse polarity |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 61.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

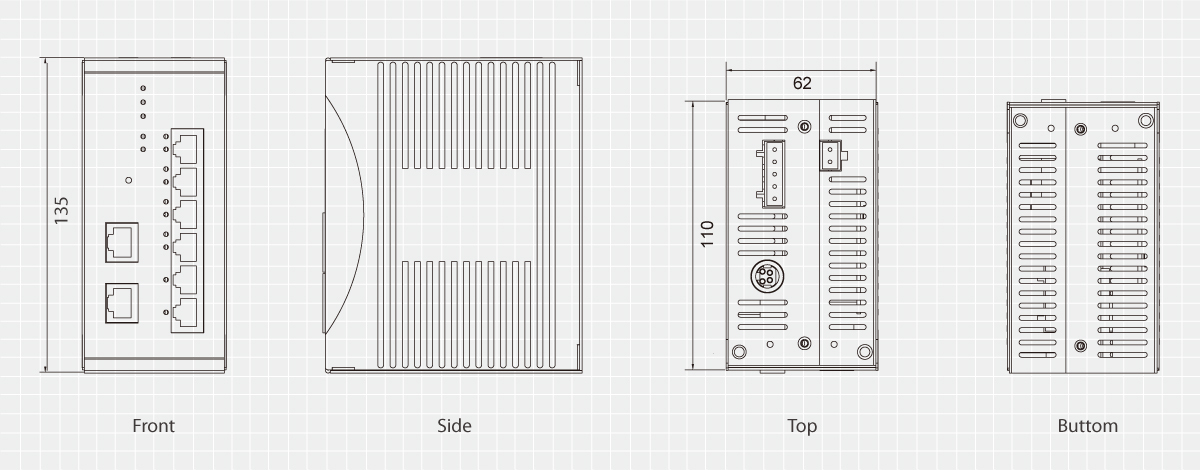

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 62 mm |
| Depth | 110 mm |
| Height | 135 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 198 mm |
| Package depth | 92 mm |
| Package height | 236 mm |
| Package weight | 1.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | ISO9001 FCC Part 15, Class A, VCCI EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
