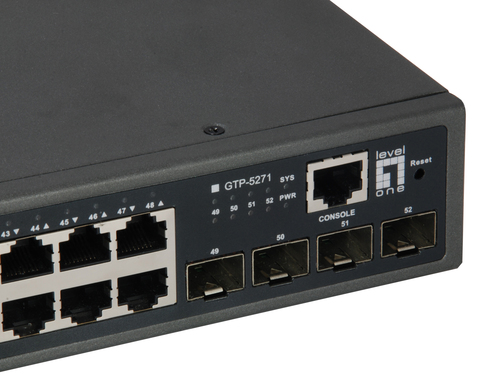

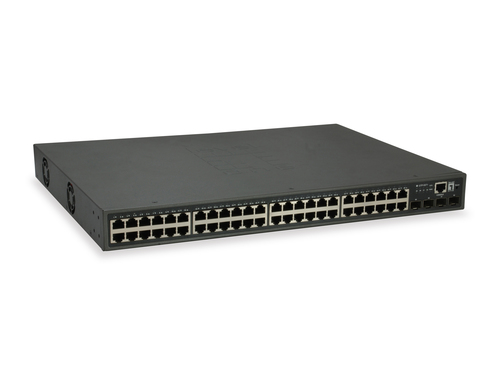

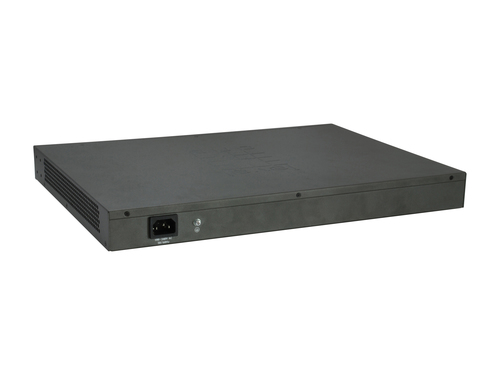

52-Port L3 Lite Managed Gigabit PoE Switch
4 x 10GbE SFP+, 48 PoE Outputs, 400W PoE Power Budget
Model GTP-5271EAN 846359051825
81 specifications
- Memory32 MB
- Weight4.52 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportYes
Overview
- Memory
- 32 MB
- Weight
- 4.52 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GTP-5271
- Part number
- GTP-5271
- EAN / UPC
- 846359051825, 4015867207949, 4015867228586, 4015867245910
- Also known as
- LevelOne 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x 10GbE SFP+, 48 PoE Outputs, 400W PoE Power Budget
Specifications
81 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |

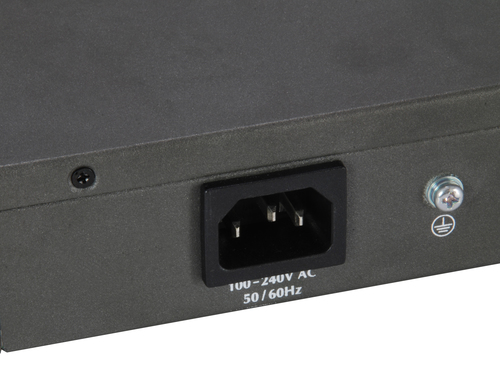

| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Network virtualization technologies | Q-in-Q tunneling |
| QinQ implementation | Selective QinQ |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Number of VLANs | 4096 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Forwarding rate | 130.944 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 512 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN, Web-based authentication |
| Authentication type | RADIUS |
| DoS attack prevention | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Security algorithms | SNMPv3 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv6 Telnet |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Link, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32 MB |
| Firmware upgradeable | Yes |
| Telnet | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6 A |
| Power consumption (max) | 473.7 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44.5 mm |
| Weight | 4.52 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Rubber feet | Yes |
| Package width | 596 mm |
| Package depth | 390 mm |
| Package height | 80 mm |
| Package weight | 6 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
