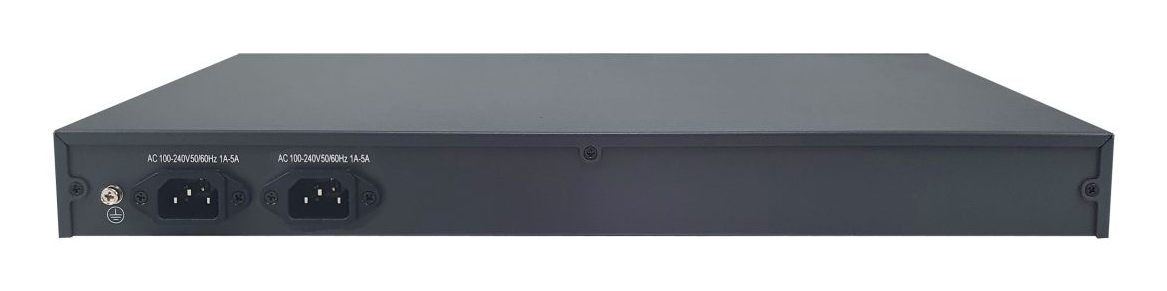

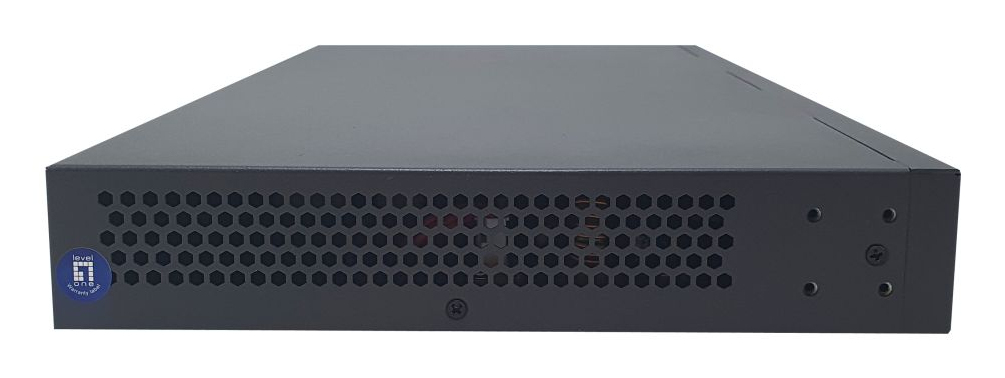

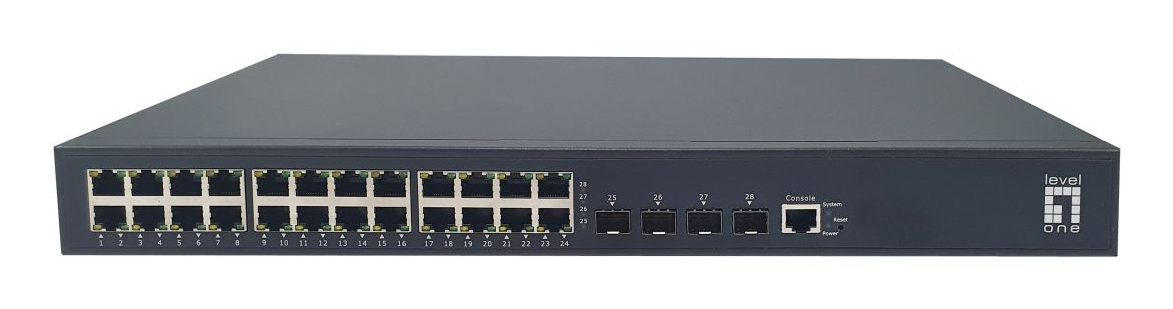

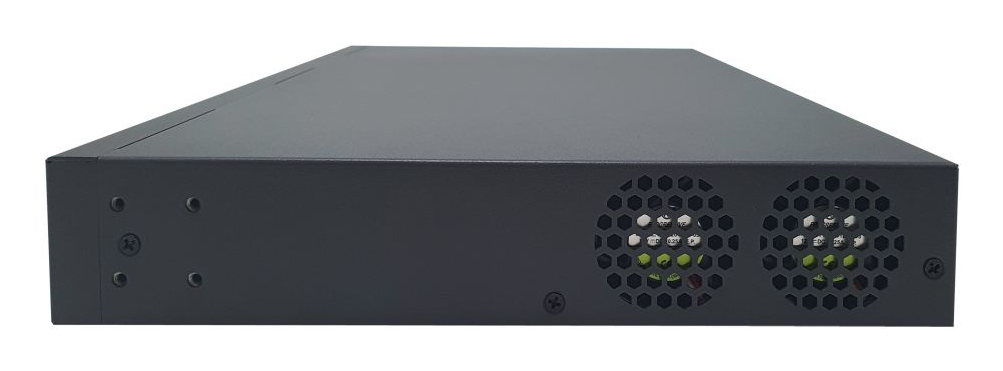

28-Port L3 Lite Managed Gigabit PoE Switch, 802.3af/at PoE, 24 PoE Outputs
400W Power Budget, 4 x 10G SFP+, Dual AC Redundant Power Supply
Model GTP-2871DPEAN 4015867241394
81 specifications
- Memory256 MB
- Noise45 dB
- Type1U
- Weight4.8 kg
- ColourGrey
- Switch typeManaged
Overview
- Memory
- 256 MB
- Noise
- 45 dB
- Type
- 1U
- Weight
- 4.8 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GTP-2871DP
- Part number
- GTP-2871DP
- EAN / UPC
- 4015867241394, 4015867245880
- Also known as
- LevelOne 28-Port L3 Lite Managed Gigabit PoE Switch, 802.3af/at PoE, 24 PoE Outputs, 400W Power Budget, 4 x 10G SFP+, Dual AC Redundant Power Supply
Specifications
81 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 4 |
| Fiber uplink ports quantity | 4 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1p |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| QinQ implementation | QinQ |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Protocol-based VLAN, IP subnet–based VLAN, MAC address-based VLAN |
| Number of VLANs | 4000 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 190.4 Mpps |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| Security algorithms | SNMP, SNMPv2, SNMPv2c, SNMPv3, HTTPS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Power, Link, Activity, PoE, System |
| Market segment | Business |
Performance
| Specification | Value |
|---|---|
| Memory type | Flash |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Noise level | 45 dB |
| Telnet | Yes |
| Fanless | No |
| Mean time between failures (MTBF) | 100000 h |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 440 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 400 W |
Other features
| Specification | Value |
|---|---|
| Authentication method | Login |
| Packaging content | Declaration of Conformity |
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 136.48 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 4.8 kg |

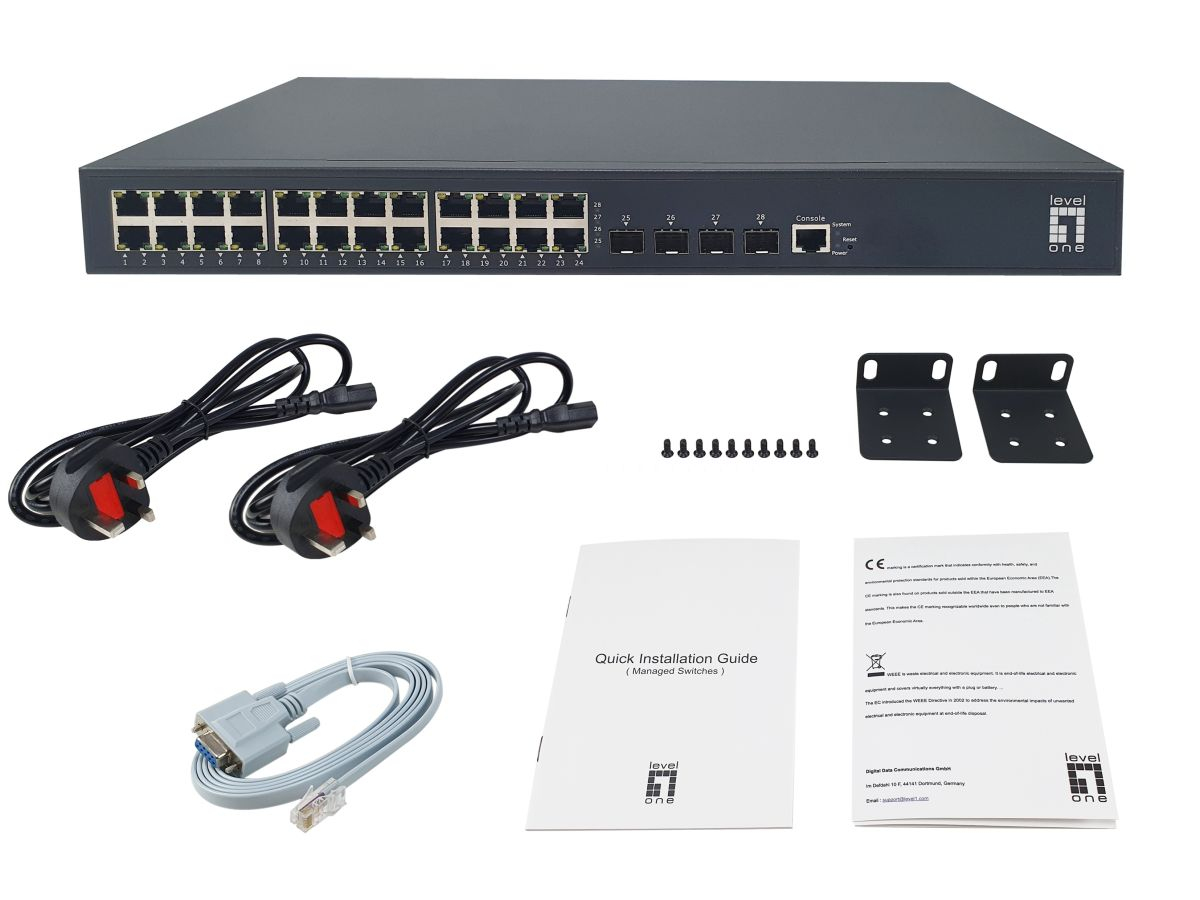

Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead, Mercury, Cadmium |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Harmonized System (HS) code | 851762 |
