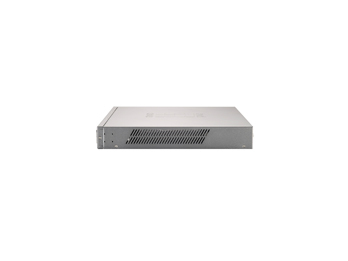

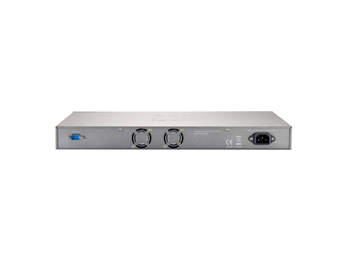

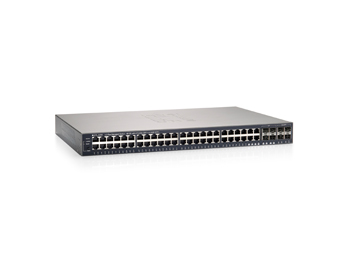

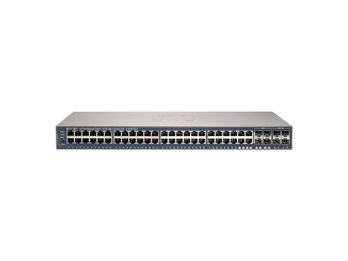

LevelOne 52-Port L2 Plus Managed Gigabit Ethernet Switch, 44 Ports RJ45 and 4 Ports RJ45/SFP Combo Gigabit Ethernet, 4 Ports SFP+ 10-Gigabit

LevelOne 52-Port L2 Plus Managed Gigabit Ethernet Switch, 44 Ports RJ45 and 4 Ports RJ45/SFP Combo Gigabit Ethernet, 4 Ports SFP+ 10-Gigabit

Model GTL-5280EAN 4015867175736

61 specifications

Weight4.1 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity44
10G supportYes
MAC address table8192 entries

See all specifications

Overview

Weight: 4.1 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 44
10G support: Yes
MAC address table: 8192 entries

Brand: LevelOne
Category: Network Switch
Model: GTL-5280
Part number: GTL-5280
EAN / UPC: 4015867175736
Also known as: LevelOne 52-Port L2 Plus Managed Gigabit Ethernet Switch, 44 Ports RJ45 and 4 Ports RJ45/SFP Combo Gigabit Ethernet, 4 Ports SFP+ 10-Gigabit

Specifications

61 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	44
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	6
Fiber optic connector	SFP, SFP+
Console port	RS-232

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u
10G support	Yes
Port mirroring	Yes
Broadcast storm control	Yes
Link aggregation	Yes
MAC address auto-learning supported	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Protocol-based VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	8192 entries
Switching capacity	176 Gbit/s
Store-and-forward	Yes
Number of trunks	26
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9800

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) rules	512
IGMP snooping	Yes
IP-MAC-Port binding	Yes
Security algorithms	SSL/TLS, HTTPS, SSH, SSH-2

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Stackable	No
Product colour	Black
LED indicators	System, Activity, LAN, Link, Power, Speed

Performance

Specification	Value
Firmware upgradeable	Yes

Power

Specification	Value
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	442 mm
Depth	300 mm
Height	44 mm
Weight	4.1 kg

Packaging content

Specification	Value
Cables included	AC, RS-232
Quick start guide	Yes
Manual	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package type	Box
Resource CD	Yes
Package width	540 mm
Package depth	473 mm
Package height	100 mm
Package weight	7.08 kg

Certificates

Specification	Value
Certification	CE, FCC
