LevelOne TURING 28-Port L3 Lite Managed Gigabit Switch

TURING 28-Port L3 Lite Managed Gigabit Switch

24 x 1G RJ45, 4 x 1G/10G SFP+ Uplinks

Model GTL-2885EAN 846359061480

78 specifications

Weight2.67 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportYes
MAC address table32000 entries

See all specifications

Overview

Weight: 2.67 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: Yes
MAC address table: 32000 entries

Brand: LevelOne
Category: Network Switch
Model: GTL-2885
Part number: GTL-2885
EAN / UPC: 846359061480, 4015867243206
Also known as: LevelOne TURING 28-Port L3 Lite Managed Gigabit Switch, 24 x 1G RJ45, 4 x 1G/10G SFP+ Uplinks

Specifications

78 specifications in 18 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
Traffic classification	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4
Console port	RJ-45
Power connector	AC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1v, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Broadcast storm control	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
Number of VLANs	4096

Data transmission

Specification	Value
MAC address table	32000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.238 Mpps
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000

Security

Specification	Value
DHCP features	DHCP server, DHCPv6 server, DHCP relay, DHCP Option 82, DHCP client, DHCPv6 client, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN
Authentication type	RADIUS, TACACS+

Multicast features

Specification	Value
Multicast support	Yes
Multicast MAC address table	1024 entries
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
GARP VLAN Registration Protocol (GVRP)	Yes
IP Source Guard (IPSG)	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Grey

Performance

Specification	Value
Firmware upgradeable	Yes
Plug and Play	Yes
sFlow	Yes
Fanless	No

Power

Specification	Value
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	30 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	442 mm
Depth	211 mm
Height	44 mm
Weight	2.67 kg

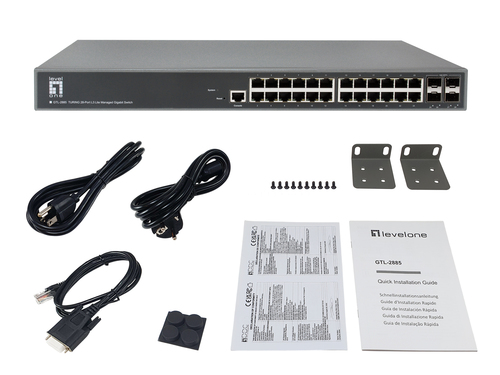

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45) to DB9
Quick start guide	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Rubber feet	Yes
Package width	520 mm
Package depth	300 mm
Package height	90 mm
Package weight	3.8 kg

Certificates

Specification	Value
Compliance certificates	Low Voltage Directive (LVD), CE, UKCA, RoHS

Technical details

Specification	Value
Master (outer) cases per pallet (air)	14 pc(s)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	177.5 cm

Logistics data

Specification	Value
Customs product code (TARIC)	8517620000
Country of origin	Taiwan
Master (outer) case width	540 mm
Master (outer) case length	492 mm
Master (outer) case height	326 mm
Master (outer) case gross weight	20 kg
Products per master (outer) case	5 pc(s)
