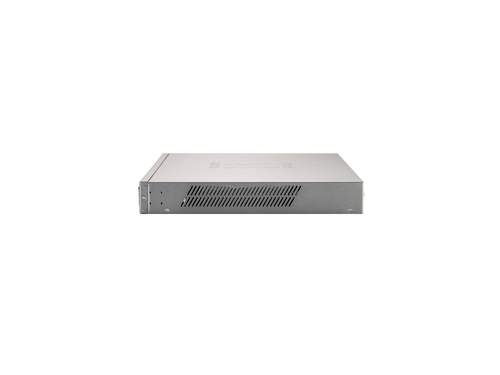

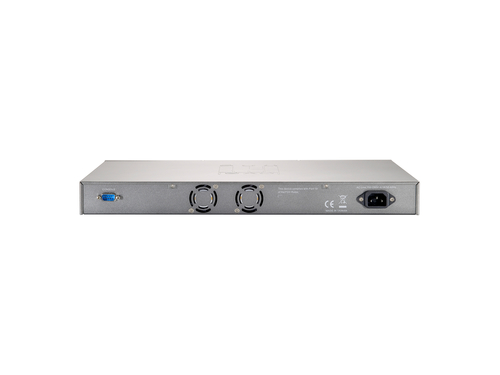

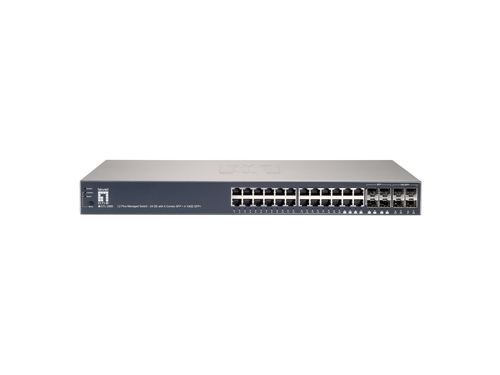

LevelOne 28-Port L2 Plus Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 4 Ports SFP+ 10-Gigabit
Model GTL-2880EAN 4015867175712
65 specifications
- Memory128 MB
- Weight3.9 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity20
- 10G supportYes
Overview
- Memory
- 128 MB
- Weight
- 3.9 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 20
- 10G support
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GTL-2880
- Part number
- GTL-2880
- EAN / UPC
- 4015867175712
- Also known as
- LevelOne 28-Port L2 Plus Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 4 Ports SFP+ 10-Gigabit
Specifications
65 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| SFP+ module slots quantity | 4 |
| Fiber optic connector | SFP, SFP+ |
| Console port | RS-232 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| MAC address auto-learning supported | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 128 Gbit/s |
| Number of trunks | 8 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9800 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Security algorithms | SSL/TLS, HTTPS, SSH, SSH-2 |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | System, Activity, LAN, Link, Speed |
Performance
| Specification | Value |
|---|---|
| Memory type | DDR2-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 3.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, RS-232 |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Package width | 540 mm |
| Package depth | 473 mm |
| Package height | 100 mm |
| Package weight | 6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
