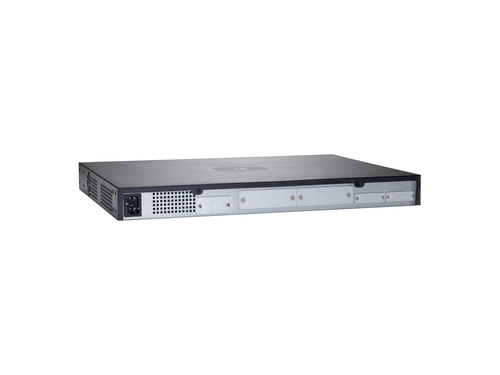

LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit
Model GTL-2691EAN 846359031407
73 specifications
- Weight5.7 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportYes
- MAC address table16000 entries
Overview
- Weight
- 5.7 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- Yes
- MAC address table
- 16000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GTL-2691
- Part number
- GTL-2691
- EAN / UPC
- 846359031407, 4015867185100
- Also known as
- LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit
Specifications
73 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Active link detection | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Number of static routes | 512 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication |
| Auto-edge port | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast MAC address table | 1024 entries |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMP, SNTP, RMON, |
| Supported network protocols | IPv6, IPv4, BOOTP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 2048 KB |
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 49.6 W |
| Power consumption (max) | 63.96 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 415 mm |
| Height | 44 mm |
| Weight | 5.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 530 mm |
| Package depth | 420 mm |
| Package height | 135 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit
No reviews yet
Be the first to tell others how LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit

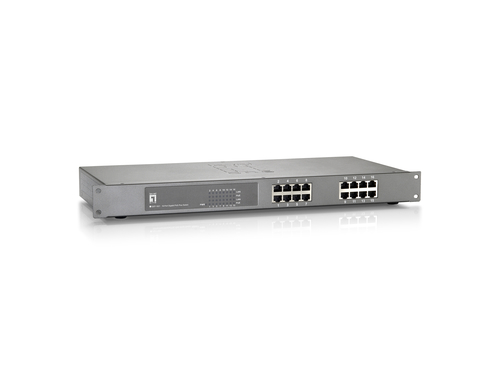

All network switch comparisons- LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit vsLevelOne 16-Port Gigabit PoE Switch, 802.3at/af PoECompare specs

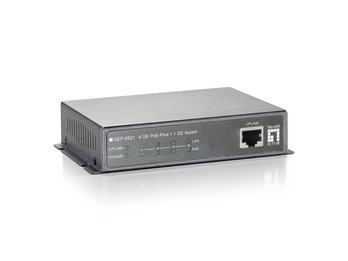

- LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit vsLevelOne 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE OutputsCompare specs
- LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit vsLevelOne 9-Port Web Smart Gigabit Ethernet PoE Switch, 802.3at PoE+, 1 Port SFPCompare specs

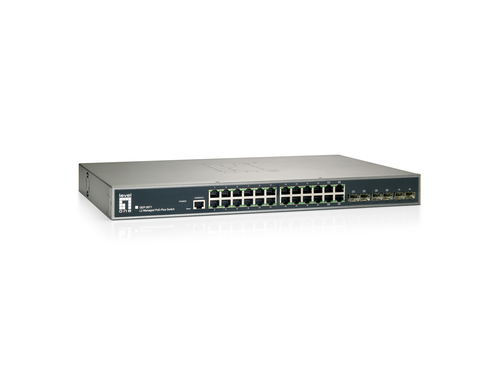

- LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit vsLevelOne 26-Port L2 Managed Gigabit Ethernet PoE Switch, 802.3at PoE+, 24 PoE Outputs, 4 Ports SFP/RJ45 Combo, 2 Ports SFPCompare specs

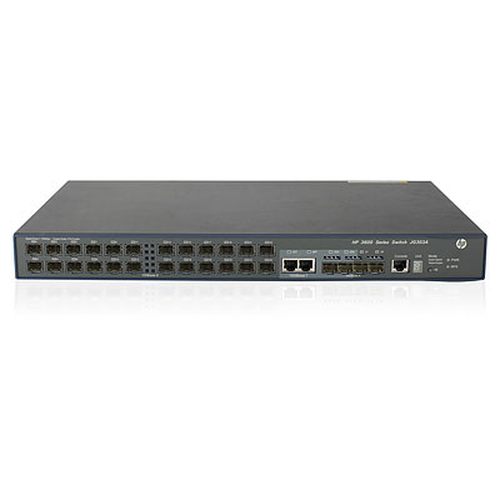

- LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit vsHP 3600-24-SFP v2 EICompare specs

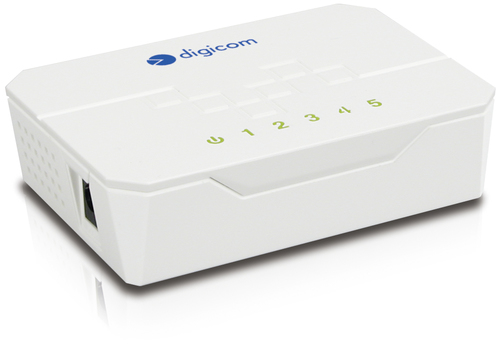

- LevelOne 26-Port Stackable L3 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Module Slots 10-Gigabit vsDigicom SWF05-T01 Fast Ethernet (10/100) WhiteCompare specs
