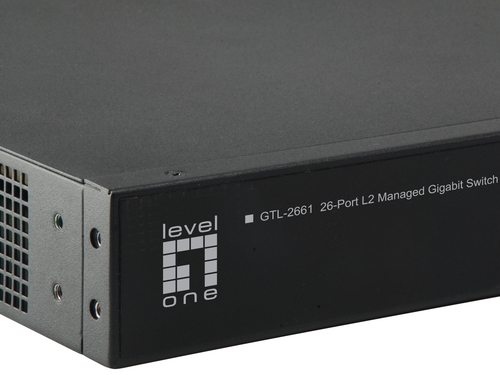

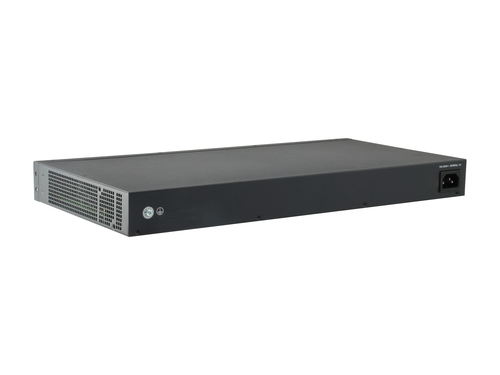

LevelOne KILBY 26-Port L2 Managed Gigabit Switch

2 x 10GbE SFP+

Model GTL-2661EAN 4015867203057

79 specifications

Memory32 MB
Weight2.29 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
10G supportYes

See all specifications

Overview

Memory: 32 MB
Weight: 2.29 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
10G support: Yes

Brand: LevelOne
Category: Network Switch
Model: GTL-2661
Part number: GTL-2661
EAN / UPC: 4015867203057
Also known as: LevelOne KILBY 26-Port L2 Managed Gigabit Switch, 2 x 10GbE SFP+

Specifications

79 specifications in 16 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
System event log	Yes

Ports & interfaces

Specification	Value

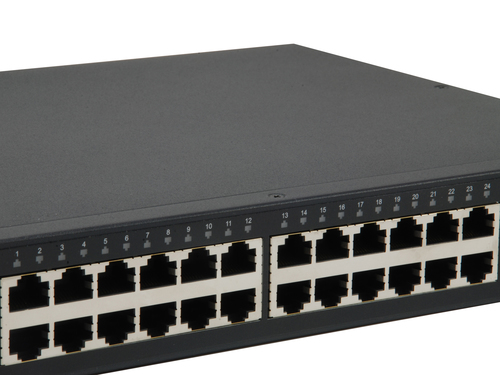

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

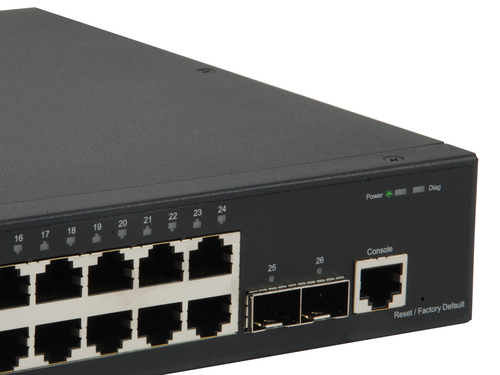

SFP+ module slots quantity	2
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Cable length detection	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, MAC address-based VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	88 Gbit/s
Forwarding rate	65.5 Mpps
Store-and-forward	Yes
Number of queues	8
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	12 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCP relay, DHCPv6 snooping, DHCP client
Access Control List (ACL)	Yes
BPDU filtering/protection	Yes
DoS attack prevention	Yes
Password protection	Yes
SSH/SSL support	Yes
Static port security	Yes

Protocols

Specification	Value
Management protocols	MLD, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, TFTP
Supported network protocols	IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Reset button	Yes
LED indicators	Activity, Link, Power
Safety	UL

Performance

Specification	Value
Internal memory	32 MB
Firmware upgradeable	Yes
Telnet	Yes
Fanless	Yes
Mean time between failures (MTBF)	636219 h

Power

Specification	Value
Power source	AC

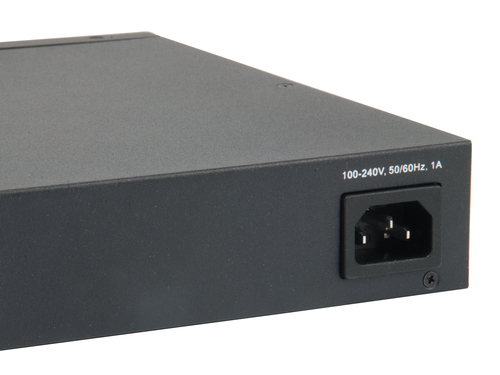

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	68.242 BTU/h

Weight & dimensions

Specification	Value
Width	220 mm
Depth	440 mm
Height	44 mm
Weight	2.29 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package type	Box
Resource CD	Yes
Package width	405 mm
Package depth	580 mm
Package height	80 mm
Package weight	3.02 kg

Certificates

Specification	Value
Certification	CE class A, FCC, VCCI, BSMI

Logistics data

Specification	Value
Country of origin	China
Master (outer) case width	340 mm
Master (outer) case length	600 mm
Harmonized System (HS) code	85176990
Master (outer) case height	435 mm
Master (outer) case gross weight	11 kg
Products per master (outer) case	4 pc(s)
