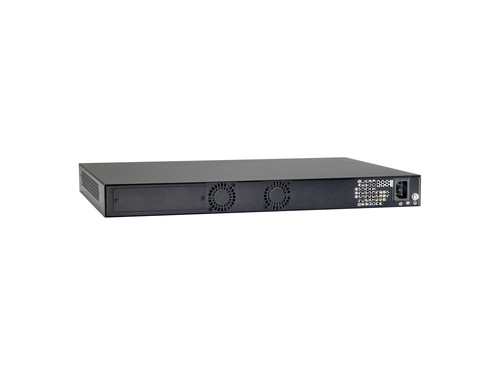

LevelOne 26-Port L2 Managed Gigabit Fiber Switch
2 x 10GbE SFP+, 4 x SFP/RJ45 Combo
Model GTL-2660EAN 4015867194164
60 specifications
- Memory128 MB
- Weight3.43 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportYes
Overview
- Memory
- 128 MB
- Weight
- 3.43 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GTL-2660
- Part number
- GTL-2660
- EAN / UPC
- 4015867194164
- Also known as
- LevelOne 26-Port L2 Managed Gigabit Fiber Switch, 2 x 10GbE SFP+, 4 x SFP/RJ45 Combo
Specifications
60 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 24 |
| SFP+ module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 88 Gbit/s |
| Forwarding rate | 65.5 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet buffer memory | 32 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 100 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 320 mm |
| Depth | 44 mm |
| Height | 440 mm |
| Weight | 3.43 kg |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 336 mm |
| Package depth | 88 mm |
| Package height | 528 mm |
| Package weight | 4.25 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
