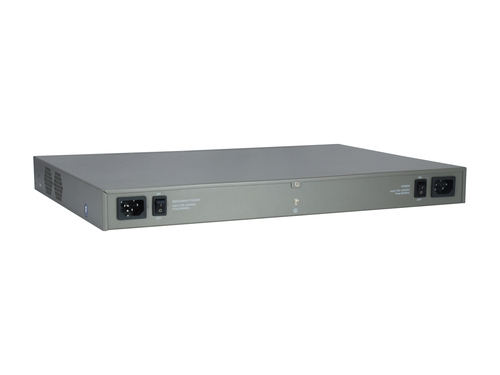

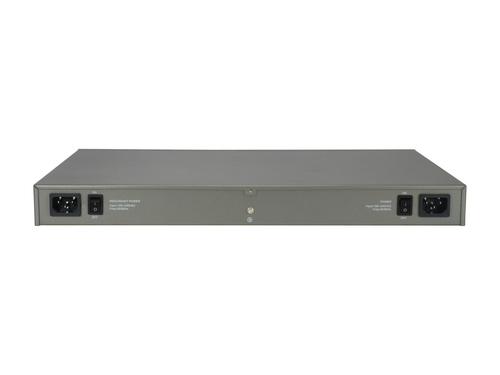

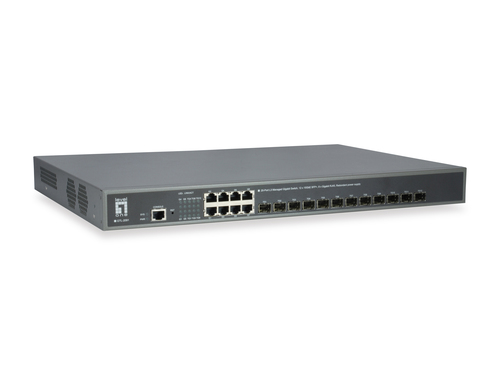

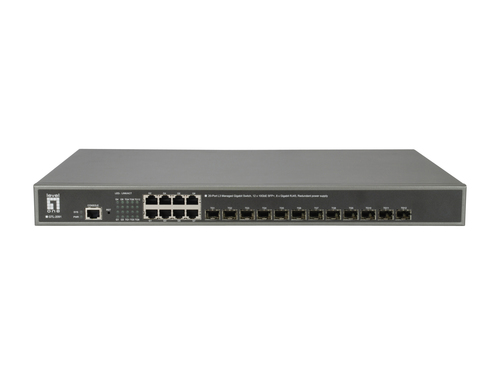

GTL-2091 Managed L3 Gigabit Ethernet (10/100/1000) Grey
Model GTL-2091Part no. 57082203201EAN 4015867208366
95 specifications
- Memory512 MB
- Speed10000 Mbit/s
- Weight3.6 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Memory
- 512 MB
- Speed
- 10000 Mbit/s
- Weight
- 3.6 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GTL-2091
- Part numbers
- 57082203201, GTL-2091
- EAN / UPC
- 4015867208366, 4015867239483
- Also known as
- LevelOne GTL-2091 Managed L3 Gigabit Ethernet (10/100/1000) Grey
Specifications
95 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

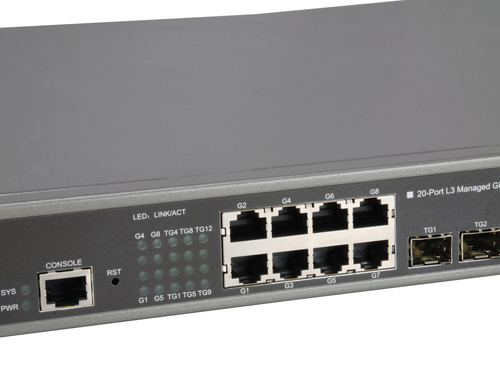

| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 12 |
| Console port | RJ-45 |

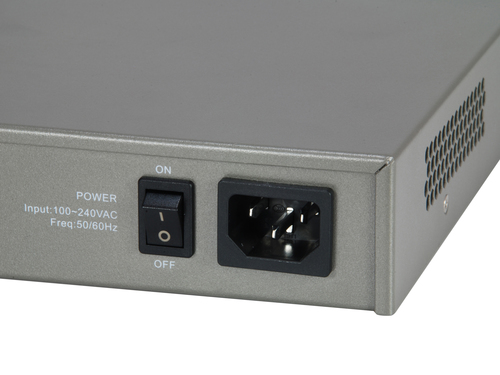

| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fast leave | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| Link aggregation | Yes |
| Network virtualization technologies | Q-in-Q tunneling |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Private VLAN, Voice VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 256 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Static route | Yes |
| Number of IP interfaces | 256 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 13690474 pps |
| Packet forwarding rate (10 Mbps) | 136904 pps |
| Packet forwarding rate (100 Mbps) | 1369047 pps |
| Packet buffer memory | 3 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Authentication | Guest VLAN |
| Authentication type | AAA, RADIUS |
| DoS attack prevention | Yes |
| IP-MAC-Port binding | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Deficit Round Robin (DRR), Weighted Round Robin (WRR) |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Activity, Link, Power, System |
| Safety | FCC Part 15 Subpart B |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Dying Gasp | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Telnet | Yes |
| Mean time between failures (MTBF) | 185680 h |
Power
| Specification | Value |
|---|---|

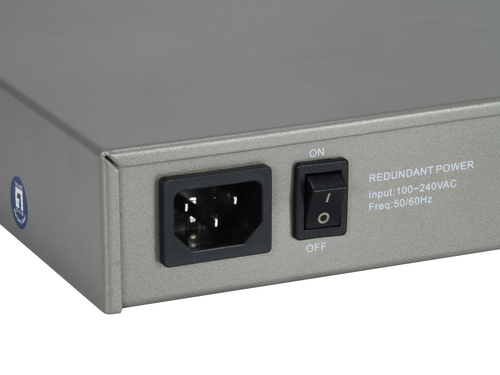

| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 50 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 170.65 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 315 mm |
| Height | 44 mm |
| Weight | 3.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Rubber feet | Yes |
| Package width | 576 mm |
| Package depth | 448 mm |
| Package height | 94 mm |
| Package weight | 5.3 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
